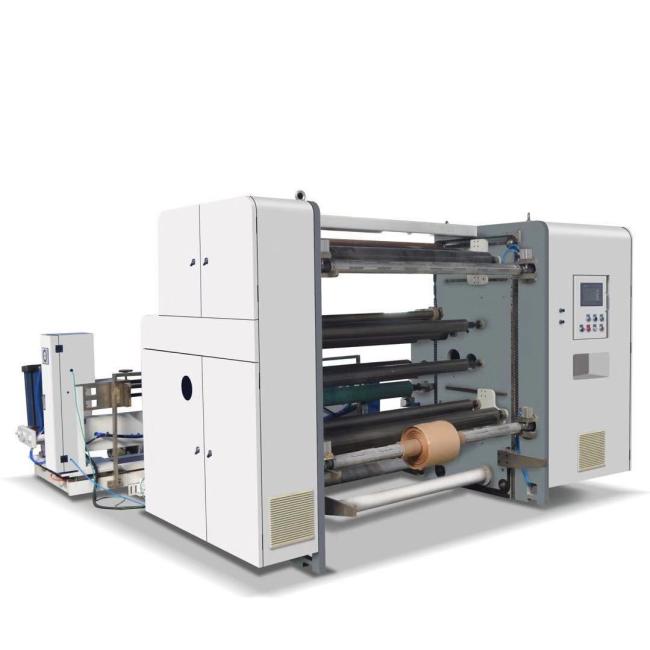

380V High Speed Slitting Machine , Cardboard Paper Roll Slitter Machine
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 working days
Brand:
ruiting
Product Description
1600 Cardboard Paper Cup Roll Slitter With Big Diameter Rewind
Product Description
This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.
Main features
) Meter counting

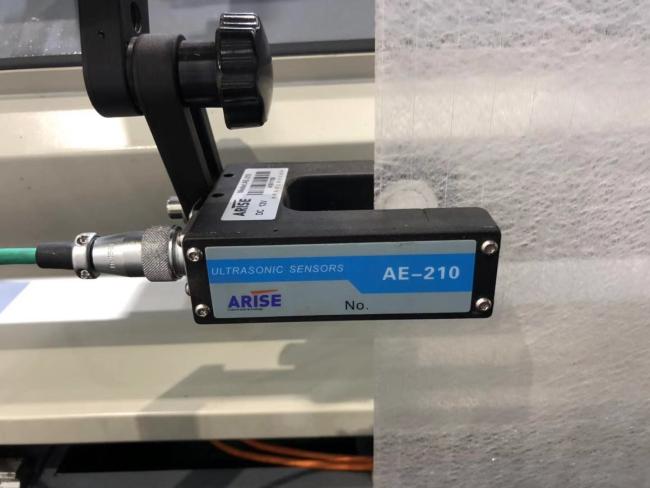

2) EPC web guide system
3) Auto taper tension control
4) 10 sets rotary blade
5) PLC man- machine interface
6) 3 inch shaft for both rewinding
7) Automatic loading, unloading system
8) Max unwinding diameter 1000mm
9) Max rewinding diameter 1000mm
10) Unwinding use shaftless model
Main Technical Specification:
| Max. web width | 1600mm |
| Max. unwinding diameter | 1400mm |
| Max. rewinding diameter | 1000mm |
| Min. itemize width | 30mm |
| Slitting precision | ±0.2mm |
| Cutting speed | 5-350m/min |
| Overall dimensions(L*W*H) | 3.5*3.7*1.9m |
| Machine weight | 3800kg |
