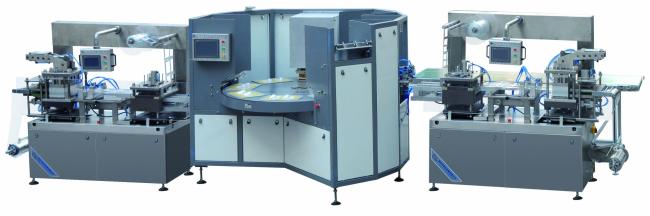

Irregular Lamp Automatic Blister Packing Machine 6000*2100*1800mm
Product Description
Irregular Lamp Blister Blister Pack Packaging Sealing Machine
Heat sealing by the method of high frequency.The plastic and plastic(card,)or card and card sealed together when heated by the high frequency mold.The card always laminated by a PVC,APET or PETG sealing glue which will be melt by the high frequency.It took about 1 year to solve the difficulties in the connection of high frequency sealing machine and blister forming machine.So the electric parts(PLC,frequency transformer)never get interfered,all machines become synchronized and steady.
Application:
It is suit for daily use, stationery, minor hardware, cosmetics, medicines, as well as battery, toothbrush, pens, glues, plug base, bearing, etc. to improve the grade of the finished products.
Workflow:
↓

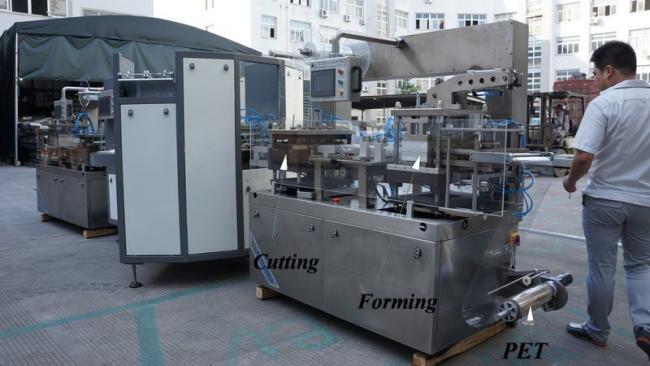

Pre-heat PVC
↓
Form blister
↓
Punch blister High frequency machine:
↓

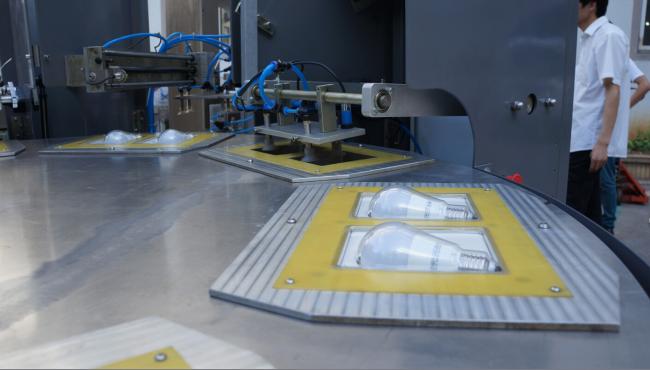

Front blister into the sealing station→Automatic/Manual feeder→Load card→Back blister into sealing station→High frequency seal-Finished
Main Technical Specification:
| Model | RTZP-1680 |
|
Packing Material |
PVC/PET Roll Thickness(0.18-0.40) ×Width360mm |
| Cardboard (200-700)g | |
|
Air supply |
Pressure (0.55-0.8)Mpa |
| Air consumption 7.5m３/min | |
|
Power |
20Kw 380V 50Hz 3Phase 5Wire |
| High frequency machine power | 15Kw |
|
Mould cooling |
Tap water or Chiller Consumption 18L/h |
|
Production capacity |
15Punches/Min. |
|
Forming area |
340×220×50mm |
|
Sealing area |
320×220×50mm |
|
Stroke range |
(30-220)mm |
|
Overall dimension(L×W×H ) |
6000 x 2100 x1800 Mm |
|
Weight |
Appr.3500Kg |
