220V Flat Labeling Machine , Round Bottle Labeler With Auto Position
Product Description

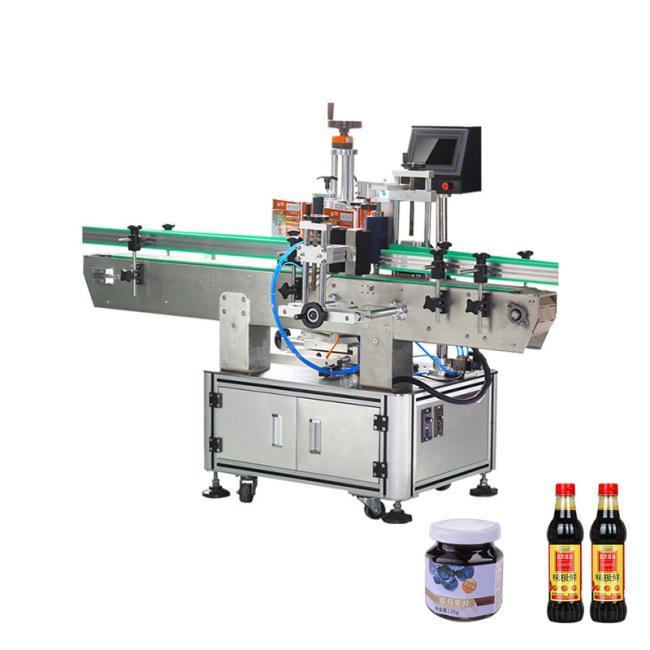

Round Bottle Labeling Machine With Auto Position
Main features
1)Dedicated to bottle labeling (sticking on side) of products of various specifications. Can be used for labeling paper or similar products
2)Equipped with a bottle separation mechanism or a paging machine to make objects enter the labeling area at equal distances
3)The front-end splitting and closing mechanism can be added, and it can also be used in connection with the upper production line.
4)The sponge wheel automatically rolls the label to make the labeling firmer.
5)The main motor can be stepper motor or China brand servo motor, (according to customer needs)
Main technical specification:
| Bottle diameter | 25mm～100mm(can be customized) |
| Bottle height | 25mm～230mm(can be customized) |
| Label size | L 20mm～180mm W 25mm～285mm Can be customized |
| Accuracy | ±1mm |
| Label speed | 25-50bottle/min |
| Conveyor speed | 5～25m/min |
| Suitable label type | Adhesive sticker label(Transparent lable is available) |
| Working air pressure | 0.4-0.6Mpa |
| Voltage | 220VAC ±10 50HZ |
| Weight | 200KG |
| Overall dimension | 2100mm×600mm×1350mm |
Material details:
| products usage | lat bottles, box, cream bottle, |
| sticking material |
adhesive label sticker
|
