Double Sided Flat Bottle Labeling Machine 25-200 pcs/min high speed
Product Description

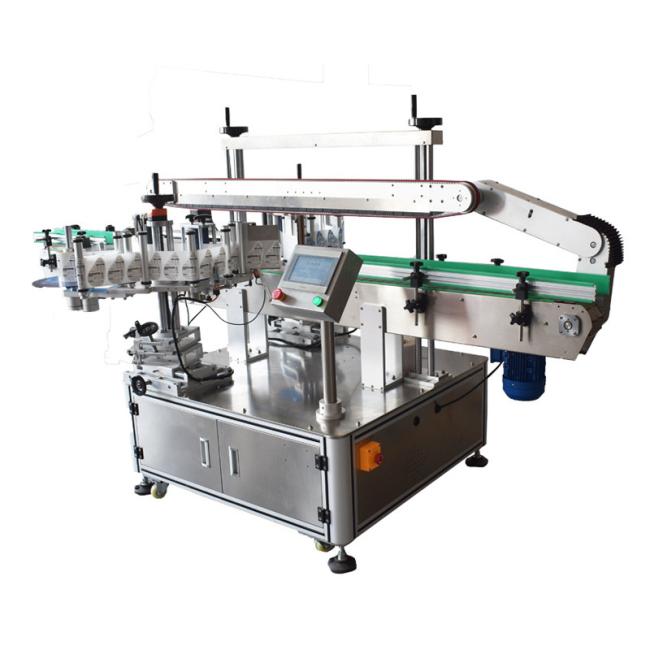

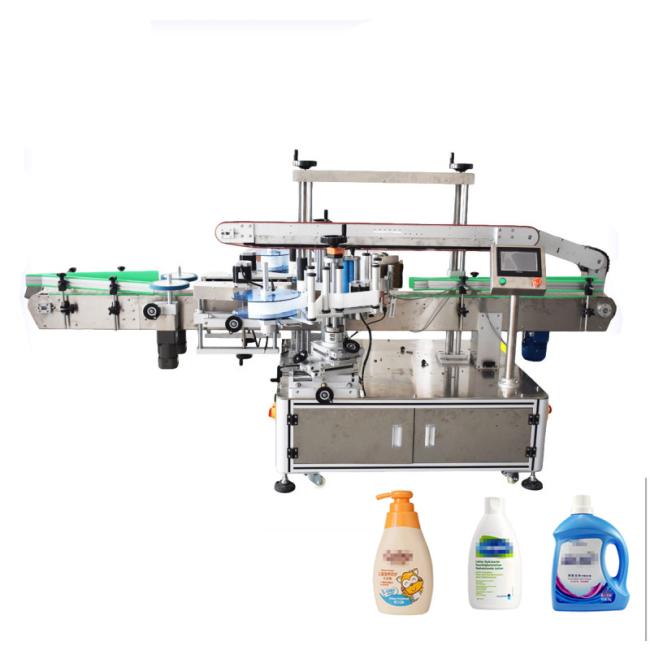

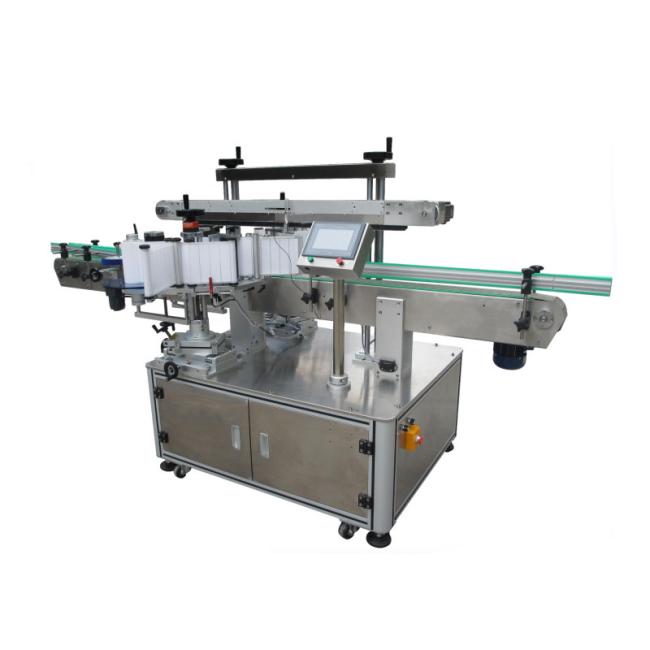

high speed Flat bottle double-sided labeling machine
Main features
1)Dedicated to bottle labeling (sticking on side) of products of various specifications. Can be used for labeling paper or similar products
2)Equipped with a bottle separation mechanism or a paging machine to make objects enter the labeling area at equal distances
3)The front-end splitting and closing mechanism can be added, and it can also be used in connection with the upper production line.
4)The sponge wheel automatically rolls the label to make the labeling firmer.
5)The main motor can be stepper motor or China brand servo motor, (according to customer needs)
Main technical specification:
| Label length | 20mm～200mm(can be customized) |
| Label width | 20mm～150mm(can be customized) |
| Products size |
L 20mm～250mm H 60mm-280mm |
| Accuracy | ±1mm |
| Label speed | 25-200pcs/min |
| Suitable label type | Adhesive sticker label(Transparent lable is available) |
| Working air pressure | 0.4-0.6Mpa |
| Voltage | 220VAC ±10 50HZ |
| Weight | 150KG |
| Overall dimension | 3000mm×1450mm×1650mm |
Material details:
| products usage | lat bottles, box, cream bottle, |
| sticking material |
adhesive label sticker
|
