China Flexo Label Printing Machine With Intermittent Die Cutting System for sale

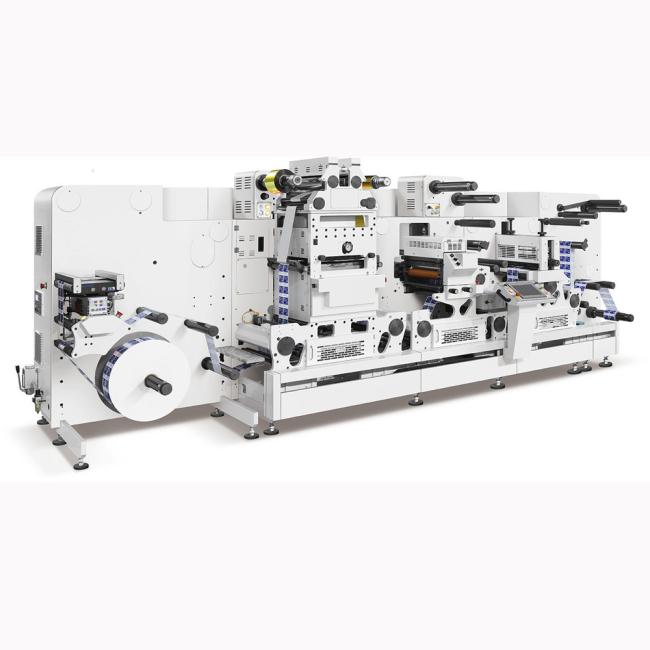

Flexo Label Printing Machine With Intermittent Die Cutting System

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: in 30 days after receiving the deposit

Brand: ruiting

Product Description

Label Flexo Printing Machine Intermittent Die Cutting System Label Sticker Printer Machine

Main features

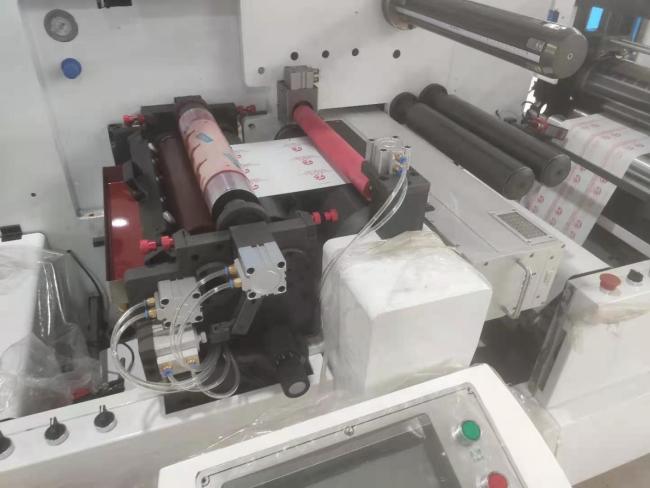

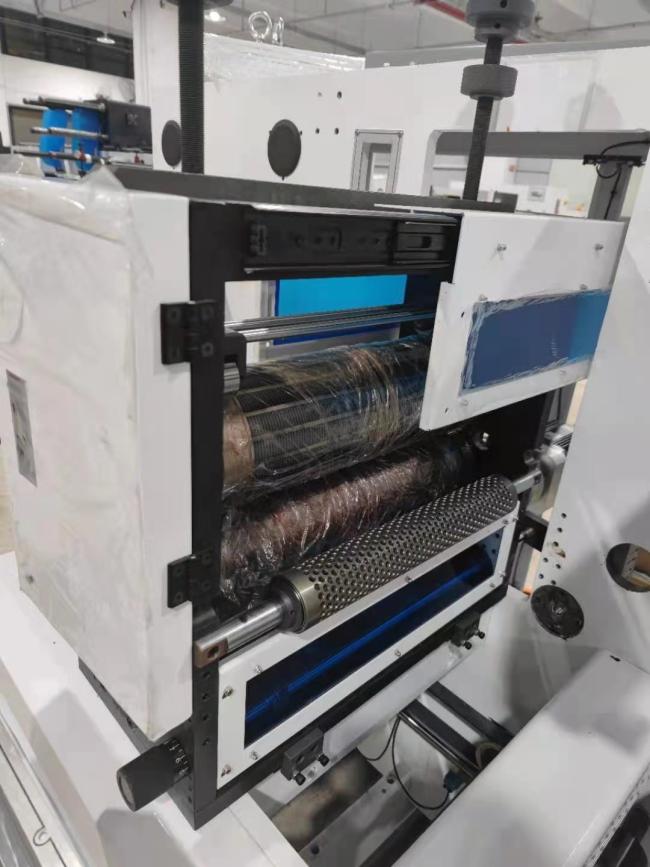

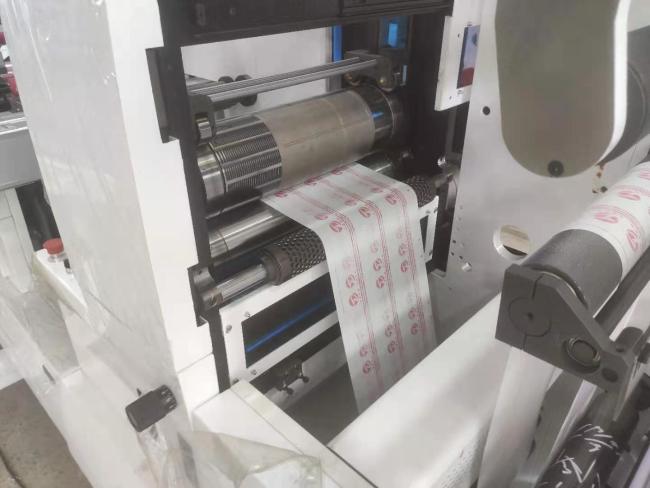

The machine is improved by intermittent die cutting machine which with the function as below: semi-rotary flexoprinting system ( For Cold stamping/UV coating/super varnishing/dot varnishing), intermittent die cutting system, sheeting system.

Main technical specification:

Max. Die cutting Speed	300RPM(120m/min)
Max. Printing speed	110m/min
Register Accuracy	±0.15mm
Accuracy of Cutting	±0.15mm
Max Printing Width	320mm
Printing Girth	55T-160T
Max Die Cutting Area	330mm×320mm (L×W)
Paper Width	80mm---320mm
Max Unwinding Dia.	φ700mm(about 2000Meters)
Max Rewinding Dia.	φ700mm(about 2000Meters)
Magnetic Cylinder	120Teeth 1/8”CP (Standard)

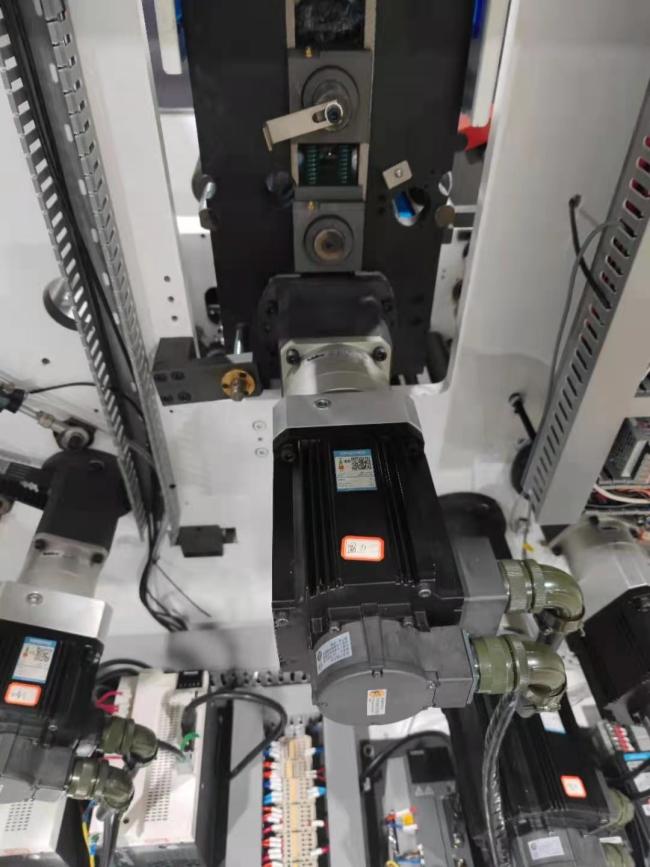

MOTOR Power	10 KW
UV Lamp Power	5KW
Overall Diameter(L×W×H)	4900mm×1200mm×1500mm
weight	3000KG

Material details:	Paper, foil, PVC,adhesive label paper ,aluminum foil ,PP,PE etc.
Ink Details:	water based ink, UV ink
Plate thickness:	1.7mm(according your need change)
