Egg Chicken Poultry Farm 3 Tiers 4 Tiers H Type Automatic Battery System Chicken Layer Cage
Egg Chicken Poultry Farm 3 Tiers 4 Tiers H Type Automatic Battery System Chicken Layer Cage
Product Description

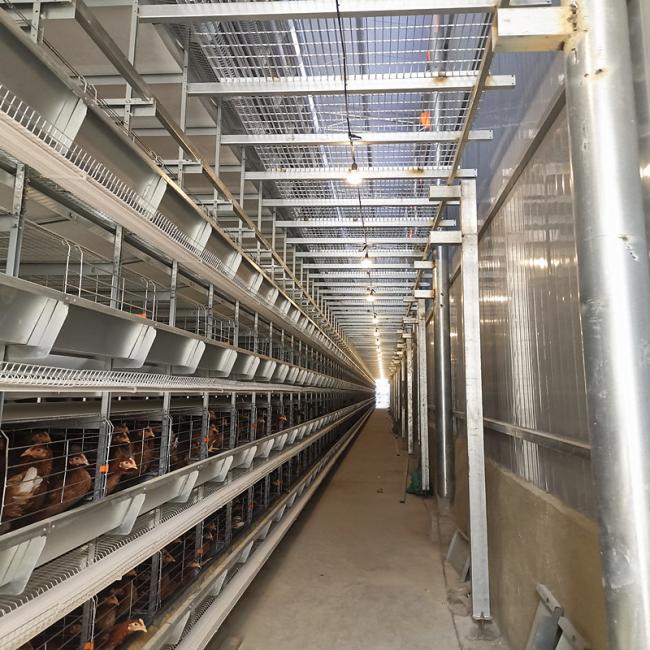

The H type chicken cage is a battery cage more and more used in the modern poultry farm industry. It is mostly used in closed chicken houses since its featured merits are the ultimate utilization of space. Compared with A type chicken cage H type chicken cage is more suitable for large-scale chicken houses such as the layer cage system holding 25000 or more laying hens.
1. H type battery layer cage
2. 3tiers, 4tiers,5 tiers, 6tiers, 8tiers
3:Q235 double hot galvanized anti-corrosion
4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.
| H type layer chicken cage | |||||||
| Cage size | Door No. /cage | Chicken No. /door | No. of tiers | Birds qty/set | Area per bird (cm2/bird) | Each door Size(mm) | Unit Cage Size(mm) |
| 1800*600*430 | 4 | 6 | 3 | 144 | 450 | 450x600x430 | 1800x1200x2140 |
| 1800*600*430 | 4 | 6 | 4 | 192 | 450 | 450x600x430 | 1800x1200x2790 |
| 1800*600*430 | 4 | 6 | 5 | 240 | 450 | 450x600x430 | 1800x1200x3440 |
| 1800*600*430 | 4 | 6 | 6 | 288 | 450 | 450x600x430 | 1800x1200x4090 |
| 1800*600*430 | 4 | 6 | 8 | 384 | 450 | 450x600x430 | 1800x1200x5390 |
| 650*625*500 | 1 | 9 | 3 | 54 | 450 | 650x625x500 | 650x1250x2220 |
| 650*625*500 | 1 | 9 | 4 | 72 | 450 | 650x625x500 | 650x1250x2870 |
| 650*625*500 | 1 | 9 | 5 | 90 | 450 | 650x625x500 | 650x1250x3520 |
| 650*625*500 | 1 | 9 | 6 | 108 | 450 | 650x625x500 | 650x1250x4170 |
| 650*625*500 | 1 | 9 | 8 | 144 | 450 | 650x625x500 | 650x1250x5470 |
