Automatic Poultry Feeding Broiler Equipment Chicken Floor Ground System 1.1KW
Automatic Poultry Feeding Equipments Chicken Broiler Floor Ground System

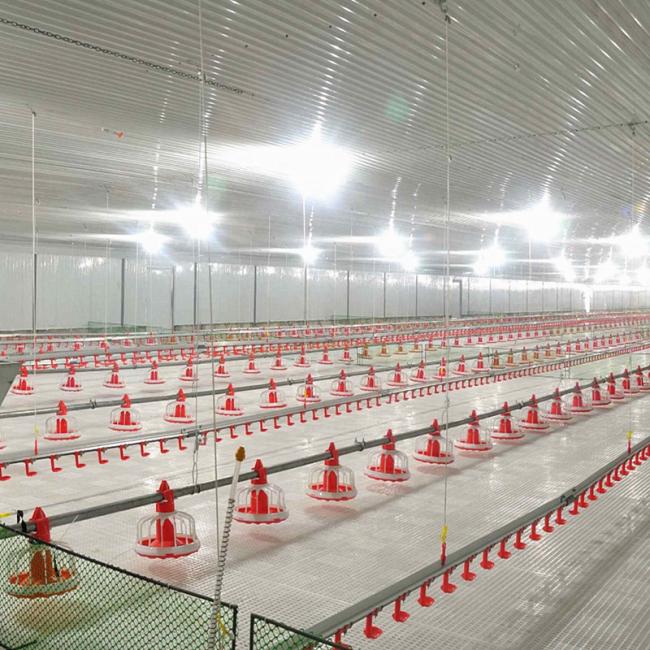

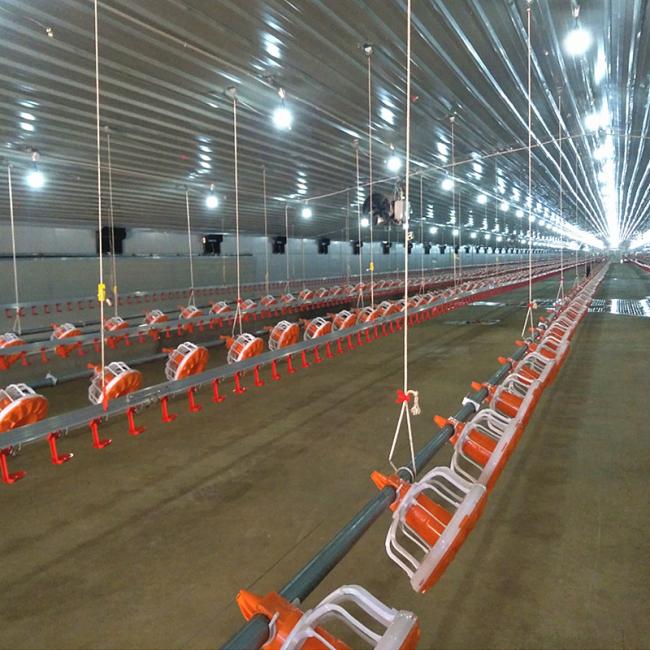

Chicken house feeding system floor system broiler equipment for poultry farm is easy to assemble, much lower investment, achieves
auto feeding, auto water drinking to save labor cost meanwhile.
Followings are our broiler raising floor system chicken farms project plans:
10000 Birds, 3 Feeding Lines, 4 Drinking Lines, House Size: 80x10x2.5m
12000 Birds, 3 Feeding Lines, 4 Drinking Lines, House Size: 80x12x2.5m
15000 Birds, 4 Feeding Lines, 5 Drinking Lines, House Size:75x16x2.5m
15000 Birds, 3 Feeding Lines, 4 Drinking Lines, House Size: 100x12x2.5m
20000 Birds, 4 Feeding Lines, 5 Drinking Lines, House Size: 100x15x2.5m
25000 Birds, 6 Feeding Lines, 7 Drinking Lines, House Size: 95x20.5x2.5m
30000 Birds, 4 Feeding Lines, 5 Drinking Lines, House Size: 150x16x2.5m
Characteristics Of Chicken House Feeding System Broiler Equipment
| 1. Vice Hopper | Size: 60Kg, 70Kg, 90Kg Material:hot-dip galvanized sheet, thickness:1mm |
| 2. Delivery Feed Pipe | 3m/set with 4holes pipe dia:45mm material:hot dip galvanized |

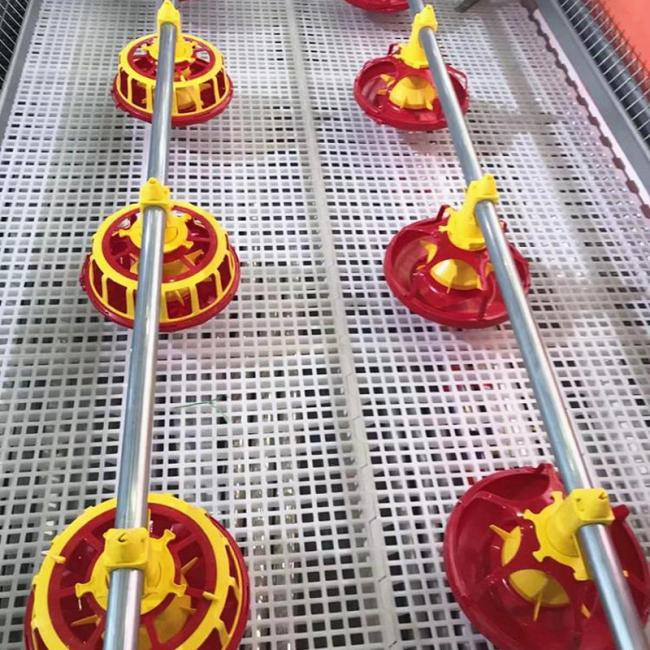

| 3. Feed Pan | 16 grid(4pan/3m) dia :360mm material:pure plastic material |
| 4. Feed Sensor | imported from Germany time delay range: 0-2hours The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed, the motor will stop conveying feed when sensor touchs feed. |
| 5. Driving motor | Taiwan brand Power: 0.75Kw/1.1Kw/1.5Kw, Voltage:380V/220V/others, three-phase/single-phase Frequency:50Hz, AC current |

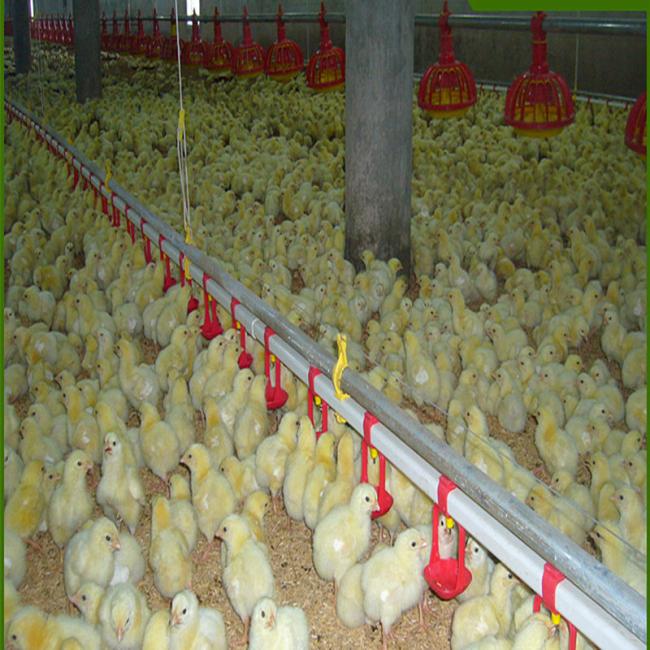

| 6. Nipple& Cup | with 360degree outer ABS plastic and inter stainless steel nipple,size: 3.4cm*1.0cm; single-arm drip cup with a reasonable structure is more suitable for new culture idea |
| 7. Water Regulator | Different volume of water can be delivered at an adjustable pressure. |
| 8. Medicator |
Dosatron injection rate:0.2%-2% Imported from France Operating pressure:0.3-6bar Operating flow: 10L/h to 2.5m3/h |
| 9. PVC Square Pipe | PVC material with European Technology, 4 or 5nipples/m; 8-12chicken/nipple |
| 10. Galvanized Pipe
|
galvanized steel with coating 275g/m2,diameter 25mm, thickness 1.2mm, 6m/pipe |
