4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance
4-1/2" Wire Wrapped Sand Control Well Screen Pipe For Sand Control
Sand control screen is also called Water wire screen, wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, oil well screen, continuous slot screen.
Sand control well screen pipe are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.
Sand control well screen pipe Details:
- Material: stainless steel wire or galvanized wire.
- Surface profile: triangle wire.
- Support profile: triangle wire, round bar and wedge wire.
- Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
- Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 20"
- Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
- Maximum collapse strength: 150 bar.
- Maximum tensile strength:40 tons.
- Connection type: Bevel welded rings; male/female threaded coupling.
- Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
- Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
Sand control well screen pipe Specification:
|
Sizes (inch) |
OD (mm) |
Slot (mm) |
Length (m) |
Tensile Strength |
Collapse Strength |
Wrap wire Vee-shaped wire(mm) (Width x height) |
Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2x3.5mm | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2x3.5mm | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2x6.0mm | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3x3.5mm | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0x5.0mm | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2x6.0mm | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2x3.5mm | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0x4.6mm | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2x6.0mm | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0x5.0mm | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0x5.0mm | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0x5.0mm | ø4.0MM×54 |
Sand control well screen pipeAdvantages:
1. Its uniform filter slots and high precision ensure the effective retention of filter medium.
2. Water wire screen has a larger circulation area compared with other screens.
3. The tiny gaps between wedge wires form a smooth wedge-shaped cross section, which makes sure no dead ends, excellent resistance to block and easy to backwash (blow wash).
4. Water wire screen has high mechanical strength and can withstand high pressure drop.
5. Water wire screen is made of superior stainless steel wires (Such as: AISI 304 and 316L) AND low carbon galvanized with strong corrosion resistance and high temperature resistance performances and can totally adapt to various harsh environment.
6. Water wire screen adapts to different forms of fluid direction with high strength, large flow and high pressure resistance performance.
7. Water wire screen maintains stable filtration accuracy and can be reused repeatedly and work reliably.

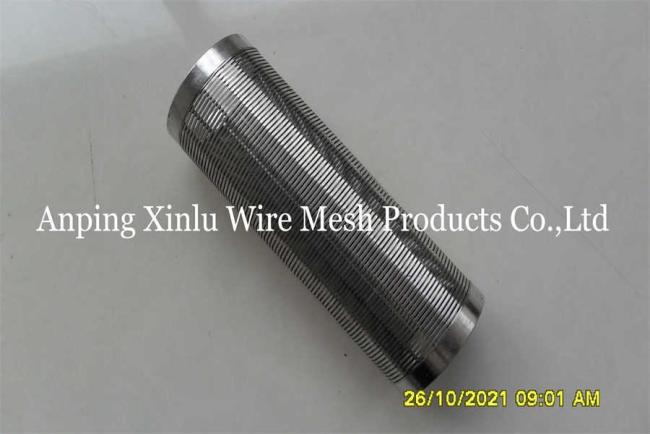

Sand control well screen pipePhotos and Package:
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-20 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q7. What's the wire?
A: Well deep: v profile wire: 2.5x4mm Well deep: 200-300m,
v profile wire: 3x4.6mm Well deep: 350-450m
v profile wire: 3.3x6.5mm Well deep: 500-650m
