1000 Pcs/Hr Small Scale Egg Carton Making Machine Sun Drying Without Dryer
1000 Pcs/Hr Small Scale Low Price Semi Automatic Egg Tray Machine Without Dryer
Product Description:
- Egg tray making machine mainly uses waste paper,waste carton as raw materials.
- By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. With the same making machine ,we can make out different kinds of egg trays by changing the molds.
- Just like the egg tray molds,the fruit tray molds,the coffee tray molds,industrial tray molds ,the customized moulding moulds and so on.Otherwise we can supply you with different material of egg tray molds including the plastic egg tray molds,the aluminum egg tray molds and the copper egg tray molds.
Production Process:
1.Pulping System
Put the raw materials into the pulper and add an appropriate amount of water to stir the waste paper into pulp.
2.Forming System
The forming system is the process to produce the wet egg tray by forming machine. When the above forming moulds sink into the pulp tank, the negative-pressure vacuum pump will work on the the back of the forming mould, the pulp will be sucked and gathered on the mould surface to form the wet egg tray.
3.Drying System
Then the wet trays are ready for sending outside for drying.You can dry them by sun.But you can also choose brick dryer or metal dryer according to your requirements.
4.Packing System
You need person to pack finished egg trays.But if you choose brick dryer or metal dryer,we can configure automatic counting system according to your requirements.
Specification:
| Small capacity 1000pcs/hr semi auto egg tray machine | |
| Capacity | 1000 pcs/hr |
| Power | 28 kw |
| Mold | 3 pcs |
| Template Size | 1.23m * 0.4m |
| Operating speed | 7 times /min |
| Space require | 20m * 20m |
| Dryer | Dry by sun or metal dryer |
| Max. Product Height | 70mm |
|
*The above specification is for reference only, due to continuous technology development, data will be updated from time to time. * Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. * Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|

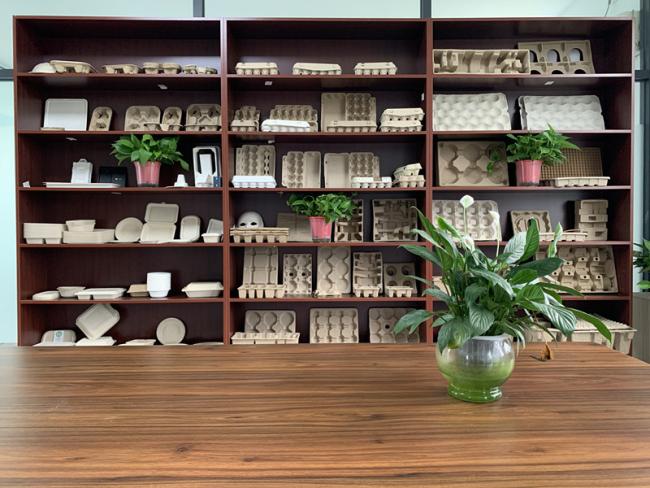

Finished Products
The machine can make different product just change the mold.eg egg tray,egg carton,fruit tray,shoe tree,coffee carrier and so on.
Our Advantages:
1.We are the first factory to manufacture the egg tray in the area,and we have 20 years experience in manufacturing the egg tray.Till now we are specialized in producting,processing and all round after sales.Our technica team can make multifunction ,high efficiency,energy saving egg tray machine.
2.Fast and punctual delivery.
3.Assistant to build your project.
4.Repairing and maintenance with any problems in the warranty.Every machine has one year warranty.
5.Spare parts and wearing parts for free or with big discound.

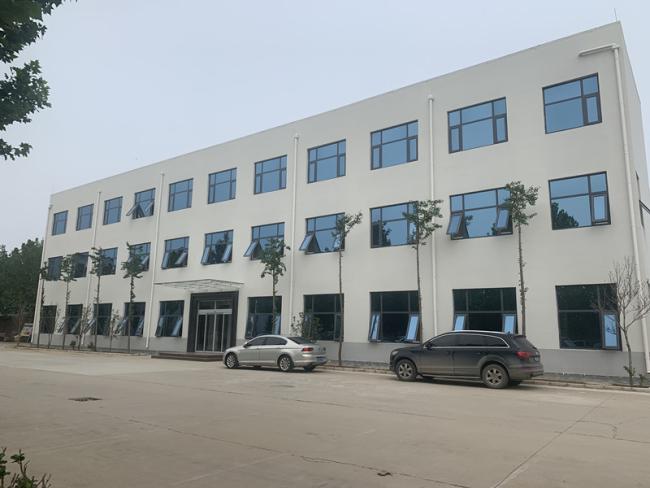

Company
Hebei wongs machinery equipment co.,ltd is the first manufacturer to develop egg tray machines in Shijiazhuang Area. With more than 30 years experience, we have a strong scientific research in improving the Production Process, Product Structure and performance. Now our technical team can make multifunction, high efficiency, energy saving egg tray machines.
There are various types and output of egg tray making machines can be supplied by our company ,such as 1000pcs per hour, 2500pcs, 3000pcs per hour, 3500pcs, 4000pcs per hour, 5000pcs/hr,6000pcs/hr,7000pcs/hr,and so on .You only can tell me what capacity machine do you want,our professional engineer will design the most suitable machine for you!
