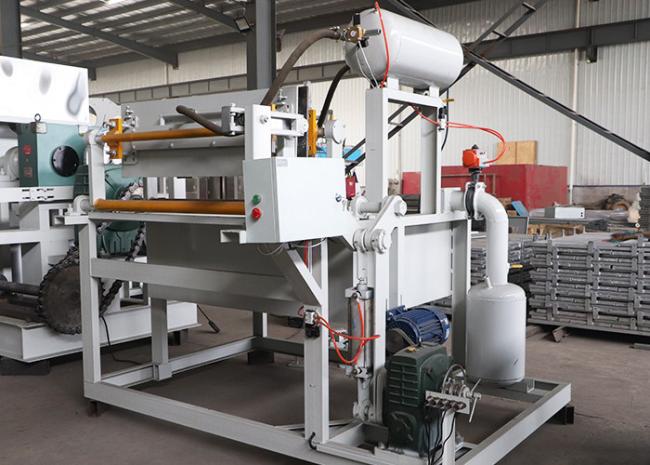

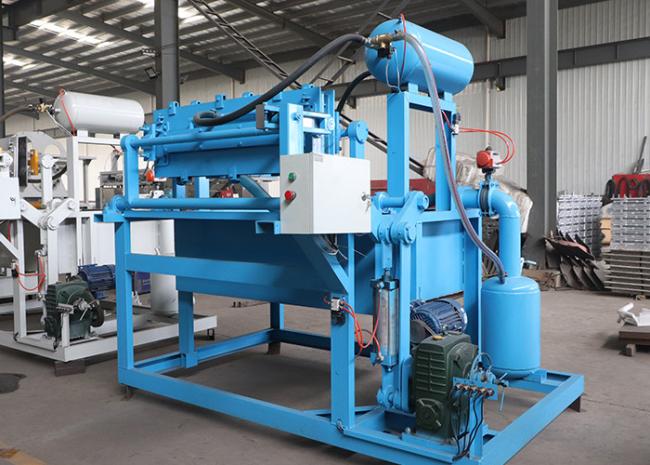

Semi Automatic 1200pcs/H Egg Tray Manufacturing Machine Without Dryer
Factory Price Semi Automatic Paper Pulp Mini Egg Tray Making Forming Molding Machine
Product Description
The paper pulp egg tray machine is for Produce the egg tray, egg box, fruit tray, cup holder, bottle tray by changing the molds
Custom processing: Yes
Features
Use precision reducer servo motor forming and transferring to ensure smooth and fast operation.
Use absolute encoder to achieve accurate correction.
The use of bronze casting static and dynamic ring structure in more suitable for product dewatering process.
The use of mechanical structure to ensure that the mold closed on both sides evenly.
Large capacity; Water content is low; Save the cost of drying.
Main model list
| Egg Tray Mold Quantity | 3-4pcs | |
| Raw material | Waste paper | |
| Egg tray Capacity(pcs/hour) | 1300-1500pcs/hr | |
| Net weight per piece (gram) | 70-75 | |
| waste paper consumption | 0.13ton / h | |
| water Consumption | 0.3ton / h | |
| Natural Gas Consumption of Dryer | 60cbmh | |
| Boiler model (natural gas fuel Kcal) | 600*103 | |
| Worker requirement | 4-6workers | |
| Power Requirement | Without dryer | 45Kw |
| with dryer | 65Kw | |
| Area of workshop | without dryer | More than 150 M |
| with dryer | More than 320 M dryer-18M |
|
| Container Requirement | Without dryer | 40f*1 |
| with dryer | 40ft3 | |
| Remarks: 1.The Capacity calculaled base on 30-packed egg tray(size 300x300mm. weight 70g~75g). 2.Workshop size is for reference only and could be adjusted according to actual size of client's plant. |
||
Process of egg tray machine
1.Pulping system
Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
2. Forming system
After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy
Drying System
The drying system is the third section of the egg tray production line. Generally, the wet trays moisture content is 70%. So drying system is required for drying the wet trays.for this small capacity machine ,Natural drying method is ok dried directly by weather and natural wind.
Clients' sun drying plant
Advantage of the semi automatic egg tray machine
1.High production
2.Easy to install and operate
3.Rugged construction
4.Heat resistance
5.Competitive price
6.Green:No waste paper emission
7.Stable final product quality(Good&strong look, same weight and size)
8.Space saving & low investment
9.Best pre-sale, in-sale and after-sale service.
Detailed information of egg tray molding machine
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
RAQ:
Q: What's the guarantee for the egg tray machine and equipment?
A: Usually the forming machine guarantee is one year, and motors guarantee is half of an year.
Q: How to choose a suitable egg tray making machine and production lines?
A: Just need tell us your requirement.We will make a good production plan according to your requirements.
Q: Do you provide sample service?
A: We can send you paper samples, which is produced by our machine.
You also can send us the paper sample that you want to produce by DHL, etc.We will design according to your paper samples.
Q: What is the raw material of egg tray making machine?
A: Waste paper,Cardboard,Magazine,Newspaper,ect
Q: Can you offer technician aboard for training workers?
A: Yes, we have team for installation guidance aboard, technicians will be sent for installation guidance and training workers .
Q: Where is your company located?
A: It is located in Shijiazhuang city,Hebei province, China.
Flow Chart
Company
We Hebei wongs macinery equipment co., Ltd company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
