4-8 Rotary Egg Tray Pressing Machine Pulp Mold Egg Tray Making Machine

Description For egg tray making machine

The pulp molding automatic egg tray production line mainly uses waste paper as the raw material, which has rich sources and low prices, and is a comprehensive development and utilization of waste. The water used in the production process is closed and recycled, no waste water or waste gas is discharged. After the pulp molding products are used, the waste can be recycled like ordinary paper. Even if it is abandoned in the natural environment, it is easy to rot and decompose into ordinary paper. Organic substances are completely environmentally friendly products. The waste paper is added to the pulper and water is sent to the storage tank. The pulp in the storage tank is evenly transferred to the supply tank with a mixer. The pulp in the supply tank is stirred to a certain concentration and sent to the molding machine. The molding machine produces an egg tray to Conveyor belt. The conveyor belt passes through the drying line to dry the egg tray, and finally it is collected and packed. In addition, the vacuum pump can pump the unused water in the molding machine to the backwater tank. The backwater tank can transport water to the pulper and the pulp storage tank, and the water can be recycled.

Semi Automatic Egg Tray Machine Process:

1. Pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump,Agitator, Control cabinet of pulping system
2. Forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. Packing system: Packing machine

Main model list

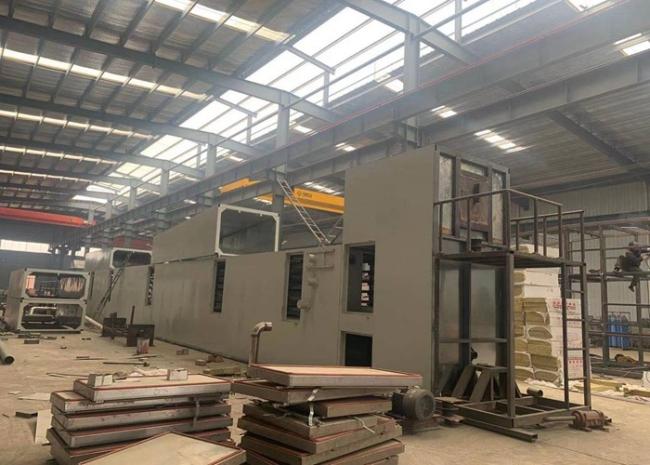

Drying System

The drying system is the third section of the egg tray production line. Generally, the wet trays moisture content is 70%. So drying system is required for drying the wet trays.for this small capacity machine ,Natural drying method is ok dried directly by weather and natural wind.

Clients' plant

Advantage of the semi automatic egg tray machine

1.High production

2.Easy to install and operate

3.Rugged construction

4.Heat resistance

5.Competitive price

6.Green:No waste paper emission

7.Stable final product quality(Good&strong look, same weight and size)

8.Space saving & low investment

9.Best pre-sale, in-sale and after-sale service.

RAQ:

Q: What's the guarantee for the egg tray machine and equipment?
A: Usually the forming machine guarantee is one year, and motors guarantee is half of an year.
Q: How to choose a suitable egg tray making machine and production lines?
A: Just need tell us your requirement.We will make a good production plan according to your requirements.
Q: Do you provide sample service?
A: We can send you paper samples, which is produced by our machine.
You also can send us the paper sample that you want to produce by DHL, etc.We will design according to your paper samples.
Q: What is the raw material of egg tray making machine?
A: Waste paper,Cardboard,Magazine,Newspaper,ect
Q: Can you offer technician aboard for training workers?
A: Yes, we have team for installation guidance aboard, technicians will be sent for installation guidance and training workers .
Q: Where is your company located?
A: It is located in Shijiazhuang city,Hebei province, China.

Flow Chart
