5 By 8 Rotary Egg Tray Machine
Waste Paper Recycling 5000pcs/H Multi Layers Metallic Dryer Egg Tray Machine
Egg Tray Machine Introduction:
Egg tray machine mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys paper egg tray machine and so on.
Main Feature:
Fast return on investment and high cost performance
High-performance drum molding technology
Matching high-efficiency 6-layer drying line
High product strength, less deformation
The function and advantage of egg tray:
1. Protection function.
Protect the eggs from external shocks, and prevent damage or deterioration of the eggs caused by light, moisture, etc. It protects eggs well and reduces losses.
2. Convenient transportation.
Eggs are produced to be sold on the market. This is a product circulation process. During this process, the eggs will go through numerous links such as transportation, handling, and storage. This requires the packaging of eggs to be able to adapt to this process.
Good egg packaging should be easy to handle, carp transportation, and can be stored securely during storage.
3. Increase sales.
In today's market, the way people buy goods has changed dramatically.
With the improvement of people's material level, people pursue higher quality of life, and the quality of product packaging directly affects product sales. Eggs are even more typical.
If we make the packaging of eggs creatively, it will increase the sales of eggs.
Specification:
|
Tech Date |
|
| Production name | Egg Tray Machine |
| Model | 5by8 rotary type |
| Capacity | 5000pcs/h |
| No. of Molds | 40 pcs forming molds plus 5 pcs transfer molds |
| Labor needed | 6 |
| Machine color | Can customize as per clients, like grey, silver, blue |
| Template Size | 1550mm*470mm |
| Dimension |
3200*2000*2500mm |
| Voltage | 380V,voltage can be customized |
| Power | 120kw |
| Rotary speed | 18 times per minute |
| Drying method | Brick drying line or metal drying line |
Advantages:
1. The cover and The slurry tank on moulding machine is made of stainless steel.
2. The slide of transfer mode is anti-friction material.
3. The copper plate in the pumping area is filled up with wear resistant material.
4. Sealed with bearings on whole forming machine.
Equipment process
1. Pulp system
(1) Put the raw materials into the pulping machine, add an appropriate amount of water, and stir for a long time to turn the waste paper into pulp and then put it into the pulp storage tank for storage.
(2) Put the pulp in the storage tank into the mixing tank, and adjust the pulp concentration in the mixing tank. The white water in the return tank and the thick slurry in the storage tank are further stirred by the homogenizer. After being adjusted into suitable pulp, it is put into the supply tank to be used by the forming system.
Equipment used: pulping machine, homogenizer, slurry supply pump
2. Molding system
(1) The pulp in the supply tank is fed into the forming machine, after being adsorbed by the vacuum system, the pulp is passed through the mold on the equipment, leaving the pulp on the mold to form, and the white water is absorbed and driven back into the pool by the vacuum pump.
(2) After the mold is adsorbed, the transfer mold passes the positive pressure out of the air compressor, and the molded product is blown from the forming mold to the transfer mold, and then sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, negative pressure tank, water pump, air compressor, mold cleaning machine
3. Drying system
(1) Traditional drying: brick tunnel kiln, the heat source can be natural gas, diesel, coal, dry wood, liquefied petroleum gas and other heat sources.
(2) New-type multi-layer drying line: The 6-layer metal drying line can save more than 30% energy than transmission drying. The main heat source is natural gas, diesel, liquefied petroleum gas, methanol and other clean energy sources.
4. Auxiliary packaging of finished products
(1) Automatic stacking machine
(2) Packing machine
(3)Transfer conveyor
Pre-Sales Service
* Inquiry and consulting support.
* Sample sent and confirmation.
* View our Factory.And see runing production line.
After-Sales Service
* Training how to instal the machine, training how to use the machine smoothly.
* Engineers available to service machinery overseas.
FAQ
1.Q:Which country to export mainy?
A:We exported to Turkey,SaudiArabia,India,Africa,South Africa,Brazil,Egypt,Venezuela,Zambia, Colombia, Bolivia, Madagascar Costa Rica, Iran, Iraq, Vietnam,Thailand, Philippines, Côte d'Ivoire, Myanmar, Nepal etc.
2.Q:Can you give me the better price with higher quality?
A: Of course, we are the real manufactuer with our specialized team and trading partners, the quality can be assured and same time the price quoted will be best.
3.Can you offer technician aboard for training workers?
A:Yes, we have ten group of team for installation guidance aboard, two techinicians will be sent for installation guidance and trainning workers till the machine can run very normally, they will come back.
4.Q: What's the gurantee for the machine and equipments?
A: Usually the forming machine gurantee is one year, and motors gurantee is six month.
5.Where is your company located?
A: it is located in Lingshou County, Shijiazhuang city, hebei, china.
6. Do you have online chat?
Yes my skype is candy.li29 wechat 008615930131527 whatsapp 008615930131527.

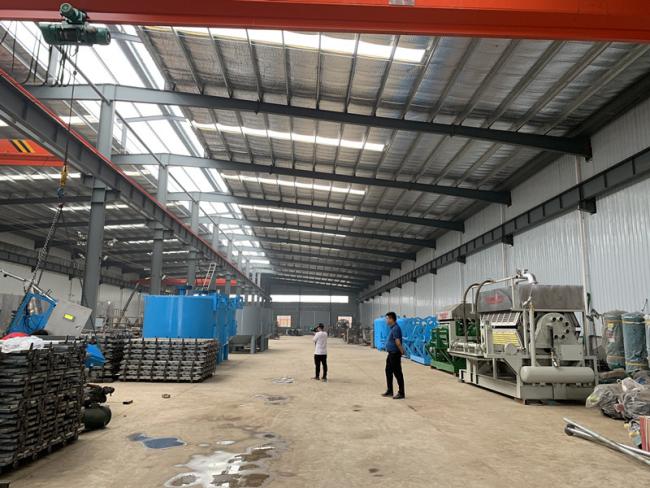

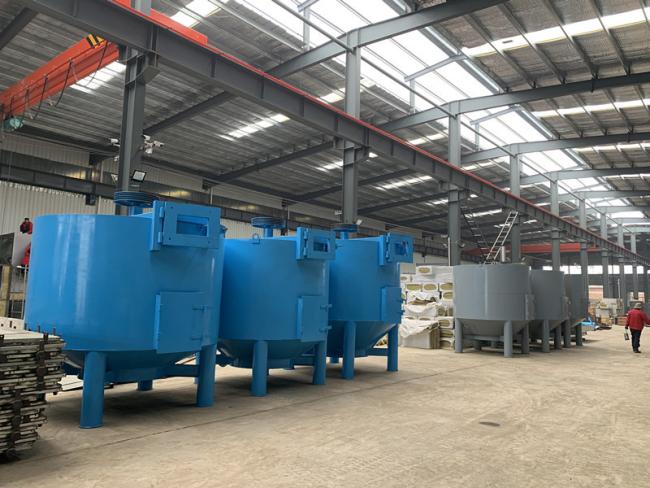

Photos for show
