4pcs Paper Semi Automatic Egg Tray Machine 110kw 2300*2000*2300mm
Recycled Waste Paper Coffee Cup Holder Semi Automatic Egg Tray Machine
Semi Automatic Egg Tray Machine introduction
Egg tray manufacturing machine is used to produce different kinds of tray products according to customer's requirement,such as egg tray/dish, egg carton/box, fruit tray, industrial package tray,agricultural seeding tray,wine tray, shoe support and small products package, etc.
Raw materials
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
Machine parameter
| Egg Tray Mold Quantity | 4pcs | |
| Raw material | Waste paper | |
| Egg tray Capacity(pcs/hour) | 1300 | |
| Net welght per plece (gram) | 70-75 | |
| waste paper consumption | 0.13ton / h | |
| water Consumption | 0.3ton / h | |
| Natural Gas Consumption of Dryer | 60cbmh | |
| Boiler model (natural gas fuel Kcal) | 600*103 | |
| Worker requirement | 4-6workers | |
| Power Requirement | Without dryer | 45Kw |
| with dryer | 65Kw | |
| Area of workshop | without dryer | More than 150 M |
| with dryer | More than 320 M dryer-18M | |
| Container Requirement | Without dryer | 40f*1 |
| with dryer | 40ft3 | |
| Remarks: 1.The Capacity calculaled base on 30-packed egg tray(size 300x300mm. weight 70g~75g). 2.Workshop size is for reference only and could be adjusted according to actual size of client's plant. | ||
Semi automatic Egg tray machine features
a) Workshop: more than 50m2.(length>=8m,width>=6.2m).
b) Production capacity: 1000pcs/hour.(30-eggs tray, 65g/pc).
c) Electricity consumption: 19.6KW. ( 28KW installed ).
d) Water consumption: 250kgs/hour
e) Kind of Raw material: newspaper, carton paper
f) Raw material consumption: 70kgs/hour
g) Workers:3-44 person
h) Transport: the machine needs 1 of 20' container
Advantages:
1. High production
2. Easy to install and operate
3. Rugged construction
4. Heat resistance
5. Competitive price
6. Green: No waste paper emission
7. Stable final product quality(Good&strong look, same weight and size)
8. Space saving & low investment
9. Best pre-sale, in-sale and after-sale service.
Flow chart
Egg Tray Production Line Finished Product
This type egg tray machine is suitable for medium scale production plant.
It can produce egg cartons, egg box, egg tray, bottle holder, agricultural culture fruit tray, coffee cup, tray.
Process details
Pulping system:
Pulper, Grinding Machine, Mixer, Stuff Pump, Water Pump, Control Cabinet, etc.

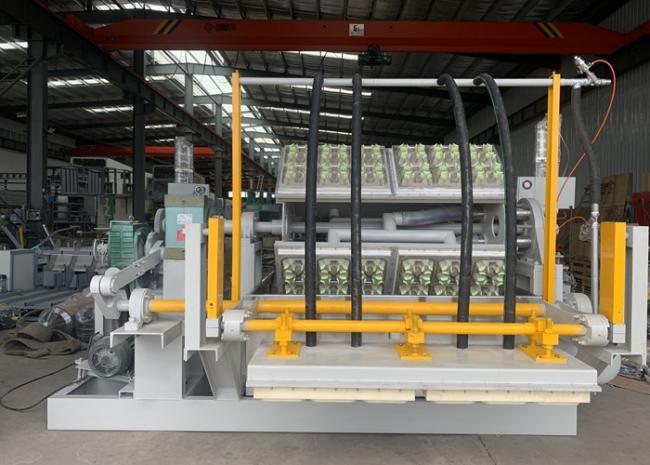

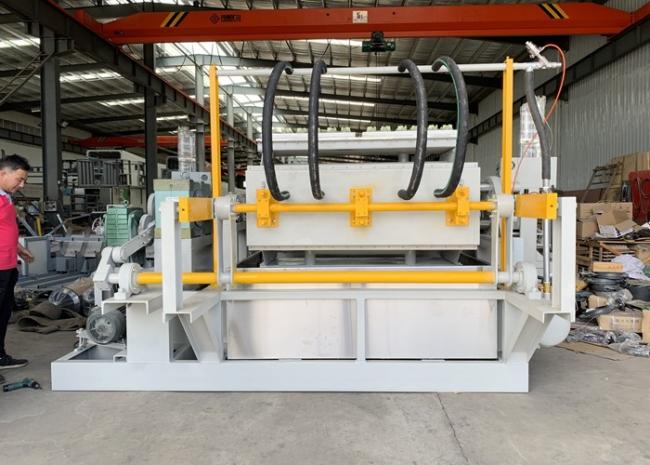

Forming System:

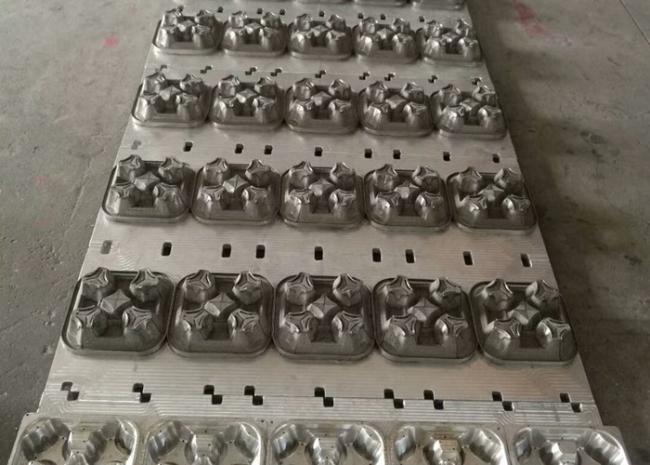

This equipment consists of 8 forming pattern plates and 1 transfer plate. The size of each plate is 1470mm×470mm and each plate can carry 4 sets of 30pcs egg tray mould, totally 32 sets. The molding efficiency is 13-15 plates/minutes. It is equipped with automatic vacuum drainage system, automatic plate washing system, pre-drying system and automatic control cabinet.
Drying System:
There are 2 kinds of drying system. One is metal, the other is civil engineering. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Our 24 hours on line service
1.We will give more details for your concern problem through email, whatsapp and phone the first time we have received your inquiry.
2.We will arrange engineers to help you install machine. And our engineer will train your workers.
3.If you meet any problems during operating, you can contact us to help you to solve.
Our company:
Hebei Wongs Machinery Equipment Co., Ltd is a large enterprise which specialized in producing of various kinds of paper pulp molding products and equipments ,We can product all kinds of paper pulp molding products ,such as egg tray ,egg box ,bottle tray ,paper shoes stretcher ,cans and milk box .Our equipments have already been exported to more than 20 countries,Algeria,Russia,Egype,Ukraine,Australia,Argentina,Brazil,Saudi Arabia,Libya,Syria.Our paper egg tray molding equipment have semi-automatic ,full -automatic,Excellent automatic integral device etc,with different specification different level.Forming Machine include :Rotary type,flip type ,Reciprocating type and Rolled,Drying System:Energy:coal/dry wool/LPG/GAS/Diesel oil,it may be drying naturally in less rain area.Packing System :We have shipping machine withe pneumatic or hydraulic transmission system,we will give you best design according to our requirement.
