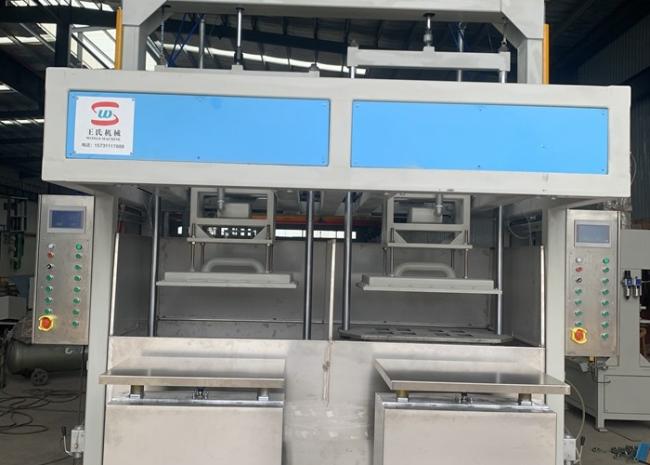

Semi Automatic PLC Control Simens Brand Electronic Product Tray Making Machine

Machine introduction

Raw materials: bamboo pulp, wood paper pulp, bagasse pulp, other wheat straw pulp, etc

Final products: food tableware products, flower seedling pot, plant pot tray, other high end industrial paper packages for mobile phone box tray, etc

Machine parameter

Equipment Process

1.Pulping system
Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc
2. Forming system
Consist of 1pc of forming platen and 1 pc of transfering platen.
Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.
Forming efficiency:5-6cycles/min;
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
3. Drying system
Outline dimension:20080x2650x3600mm;
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.

Main Feature:

1.Mainly producing the pulp molded products,such as egg tray ,egg box,fruit tray,coffee tray.
2.Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
3.Semi-automatic control, PLC+Touch screen controller.
4.Stainless steel pulp tank,the surface of platens covered with stainless steel.
5.Transferred to a flat-bed automatically

FAQ:

Q1: What is the Warranty for the machine?
A1: For the machine,we have 1 years warranty.f any quality problems occurred under normal condition in this period
we will take on the cost of maintenance and replacement and other related cost.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed USER GUIDE to you with the machine, Second, we will debug the
machine in the best status for you; At last, we also provide abroad technical training service
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has more than 20 years experience in this industry, we have accumulated much more contact
information of upstream & downstream firms, in the field of raw material, axiliary material and package of tissue. We
belive our professional team can give you best solution for your production configuration.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: Actually, we will replace it for free when wear out in warranty period; Out of the warranty time, you can buy it from us
with favorable price or from other place near you, most of our accessories and wearing parts are standard for you.

Factory and workshop show

Egg Tray Machine Making Finished Product

This type egg tray machine is suitable for medium scale production plant.

It can produce egg cartons, egg box, egg tray, bottle holder, agricultural culture fruit tray, coffee cup, tray.

Our service

1.We will give more details for your concern problem through email, whatsapp and phone the first time we have received your inquiry.

2.We will arrange engineers to help you install machine. And our engineer will train your workers.

3.If you meet any problems during operating, you can contact us to help you to solve.
