600 Pcs/Hr Pulp Egg Tray Machine 30KW Pulp Molding Machine 3000KG
600pcs/Hr Industrial Product Holder Up And Down Type Pulp Egg Tray Machine
Product Description:
Egg tray making machine without drying system which degree of the automation is high, and it is easy to learn, service is convenient. Also the scope of the paper egg tray machine is widely. It can produce egg box,egg tray, bottle tray, agricultural train seeding cup, industrial production packing. The egg tray machine equipment is best-selling nation and is sold abroad.
This kind of semiautomatic egg tray machine is cheaper that other types of egg tray making machines, and this kind of egg tray machine can save the drying cost.
Features
a) Workshop: more than 50m2.(length>=8m,width>=6.2m).
b) Production capacity: 1000pcs/hour.(30-eggs tray, 65g/pc).
c) Electricity consumption: 19.6KW. ( 28KW installed ).
d) Water consumption: 250kgs/hour
e) Kind of Raw material: newspaper, carton paper
f) Raw material consumption: 70kgs/hour
g) Workers:3-44 person

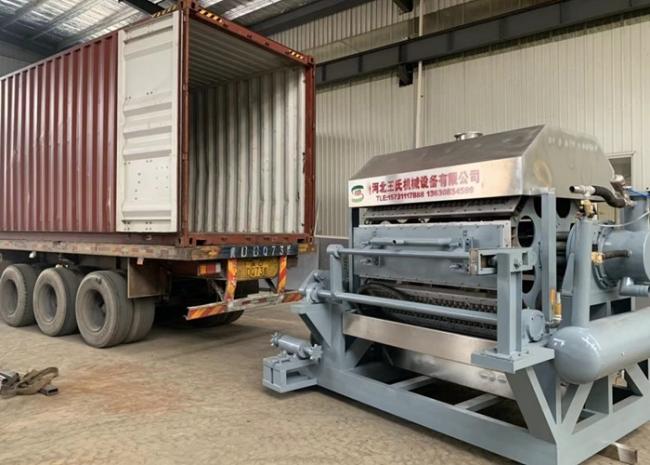

h) Transport: the machine needs 1 of 20' container
Specifications:
| No | Model: | for different capacity |
| 1 | Machine structure | pulping system, moulding system |
| 2 | Platen size | 1230 x 400 |
| 3 | Maximum pressure | 20-50 Ton (Adopt with servo drive crank arm mechanism) |
| 4 | cycle time | 2- 3 seconds |
| 5 | Mold quantity | Each Face 3pcs / 4pcs ( based on 30 egg tray ) |
| 6 | Maximum product height | 70 mm |
| 7 | Drying method | dry under sun ,dry in brick dryer,dry in metal dryer |
| 8 | control method | Frequency converter |
| 9 | Finished Products | egg tray,egg carton,fruit tray,shoe tree,coffee carrier and so on. |
Process of the pulp egg tray machine
1. Pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system
2. Forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. Packing system: Packing machine
Flow chart and finished products

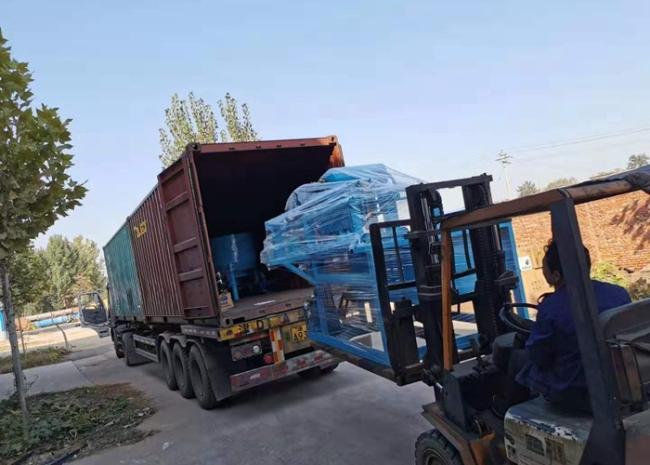

Packing
1. Equipment body: plastic film.
2. Accessories: standard export wooden cases.
3. We can do as your requirement.
Advantages:
1.High production
2.Easy to install and operate
3.Rugged construction
4.Heat resistance
5.Competitive price
6.Green:No waste paper emission
7.Stable final product quality(Good&strong look, same weight and size)
8.Space saving & low investment
9.Best pre-sale, in-sale and after-sale service.
Company
Hebei wongs machinery equipment co.,ltd is the first manufacturer to develop egg tray machines in Shijiazhuang Area. With more than 20 years experience, we have a strong scientific research in improving the Production Process, Product Structure and performance. Now our technical team can make multifunctional, high efficiency, energy saving egg tray machines.
There are various types and output of egg tray making machines can be supplied by our company ,such as 1000pcs per hour, 2500pcs, 3000pcs per hour, 3500pcs, 4000pcs per hour, 5000pcs/hr,6000pcs/hr,7000pcs/hr and so on .You only can tell me what capacity machine do you want,our professional engineer will design the most suitable machine for you!
