6-8 Egg Tray Equipment Rotary Fully Automatic Aluminum Mold
6-8 Rotary Fully Automatic Egg Tray Making Machine Aluminum Mold Made As Per Clients' Sample
Egg Tray Making Machine Introduction:
Egg tray making machine mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys paper egg tray machine and so on.
Source Of Raw material:
The raw materials are mainlywaste paperboard, waste paper box paper, waste white paper.
Specification:
|
Tech Date |
|
| Production name | Egg Tray Machine |
| Labor need | 5-6 person/shift |
| Model | 6-8 rotary type |
| Capacity | 8000pcs/h |
| No. of Molds | 48pcs + 6 pcs |
| Machine color | Blue, silver, Green |
| Template Size | 1550mm*470mm |
| Dimension |
3600**2250*2500mm |
| Voltage | 380V,voltage can be customized |
| Power | 150kw |
| Mold material | Plastic or aluminum |
| Rotary speed | 23 times per minute |
| Drying method | Brick drying line or metal drying line |
Our Company Advantages:
30 Years of production experience
Honesty, high quality and low price
Egg Tray Machine Advantages:

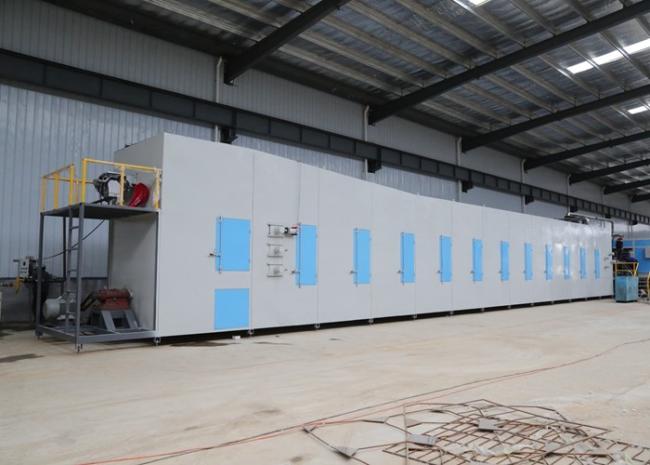

Our Wongs six-layer metal drying line is mainly composed of a combustion chamber, an upper air duct, a lower air duct, and drying tunnel running by chains and pallets. Every two adjacent sections need to be fixed with hexagonal screws for drying. The slideway and the wind plate have been welded before leaving the factory. After the customer receives the goods, they only need to install the chain and the pallet.
Egg tray making machine photo
Equipment process
Process for egg tray machine: pulp making--tray forming--drying
Pulp molding system: Hydraulic pulper,High-frequency vibration sieve frame,Pulp pump.
2. Forming system: Forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, Refiner machine
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc.

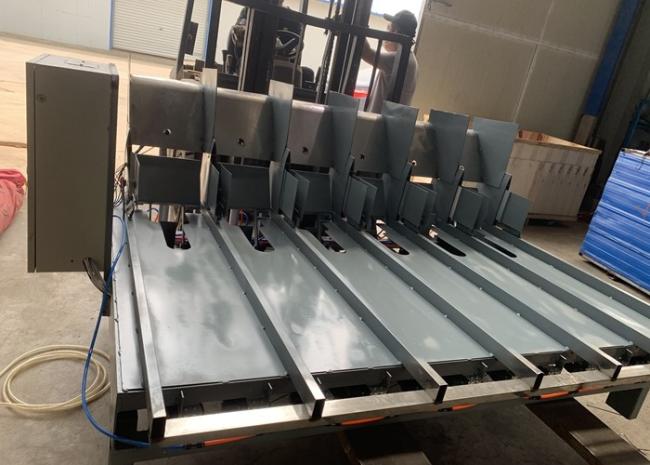

Full auto colleting machine
(1) Automatic stacking machine
(2) Packing machine
(3)Transfer conveyor
Process of egg tray machine
After-Sales Service
* Training how to instal the machine, training how to use the machine smoothly.
* Engineers available to service machinery overseas.
Our Company
We supply various models egg tray machine, egg tray production lines and egg tray production technology connected manufacting, sales, assembling and technical service. We offer well-equipped advanced technology with strong technical service to meet clients’ requirement. Our excellent quality, prompt delivery, reasonable prices, courteous service won all clients praise.
Main products: small, medium-size, large egg tray production line, paper pulp molding machine, packaging machine, shapping machine, various mold, iron tray for drying, various accessories. We exported to United States, Russia and Southeast Asia.
