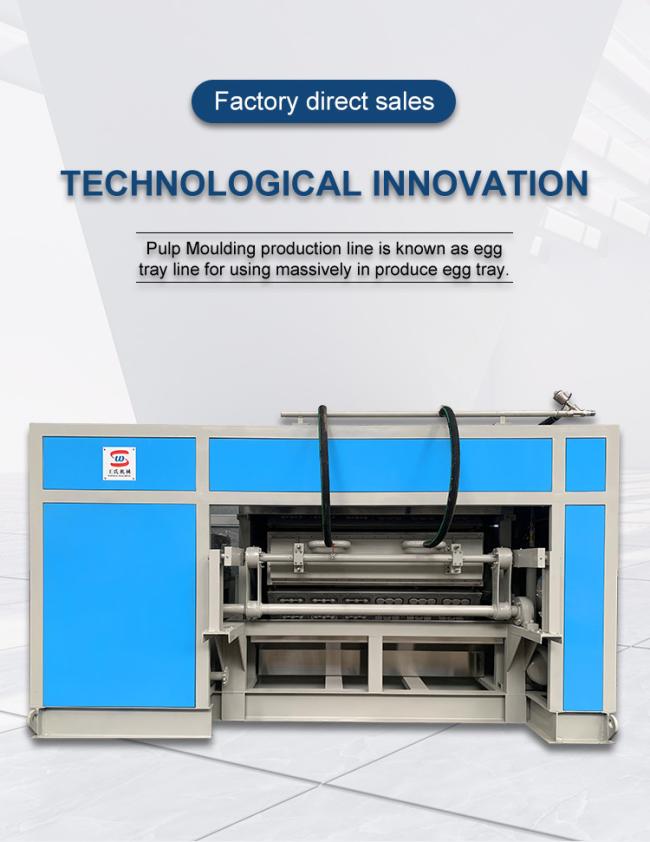

6500pcs Per Hour Egg Tray Machine Paper Pulp Plastic Mold
6500pcs Per Hour Paper Pulp Molding Machine For Making Egg Trays
Machine Introduction:
Egg tray making machine mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys paper egg tray machine and so on.
Process for egg tray machine: pulp making--tray forming--drying
Pulp molding system: Hydraulic pulper,High-frequency vibration sieve frame,Pulp pump.
2. Forming system: Forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, Refiner machine
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc.
Raw material:
Waste paper, widely sourced and easy to collect.
Specification:
|
Tech Date |
|
| Production name | 6500pcs Per Hour Paper Pulp Molding Machine For Making Egg Trays |
| Labor need | 5-6 person/shift |
| Model | 5by8 rotary type |
| Capacity | 6500pcs/h |
| No. of Molds | 48pcs + 6 pcs |
| Machine color | Can customize as per clients |
| Template Size | 1550mm*470mm |
| Dimension |
3600**2250*2500mm |
| Voltage | 380V,voltage can be customized |
| Power | 120kw |
| Mold material | Plastic or aluminum |
| Rotary speed | 23 times per minute |
| Drying method | Brick drying line or metal drying line |
Egg Tray Machine Mold Photos
Egg tray machine finished products:
Main Features:
1.Mainly producing the pulp molded products,such as egg tray ,egg box,fruit tray,coffee tray.
2.Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
3.Semi-automatic control, PLC+Touch screen controller.
4.Stainless steel pulp tank,the surface of platens covered with stainless steel.
5.Transferred to a flat-bed automatically
Moulding Machine Advantages:
1. The cover and The slurry tank on moulding machine is made of stainless steel.
2. The slide of transfer mode is anti-friction material.
3. The copper plate in the pumping area is filled up with wear resistant material.
4. Sealed with bearings on whole forming machine.
Equipment process
1. Pulp system
(1) Put the raw materials into the pulping machine, add an appropriate amount of water, and stir for a long time to turn the waste paper into pulp and then put it into the pulp storage tank for storage.
(2) Put the pulp in the storage tank into the mixing tank, and adjust the pulp concentration in the mixing tank. The white water in the return tank and the thick slurry in the storage tank are further stirred by the homogenizer. After being adjusted into suitable pulp, it is put into the supply tank to be used by the forming system.
Equipment used: pulping machine, homogenizer, slurry supply pump
2. Molding system
(1) The pulp in the supply tank is fed into the forming machine, after being adsorbed by the vacuum system, the pulp is passed through the mold on the equipment, leaving the pulp on the mold to form, and the white water is absorbed and driven back into the pool by the vacuum pump.
(2) After the mold is adsorbed, the transfer mold passes the positive pressure out of the air compressor, and the molded product is blown from the forming mold to the transfer mold, and then sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, negative pressure tank, water pump, air compressor, mold cleaning machine.
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, the heat source can be natural gas, diesel, coal, dry wood, liquefied petroleum gas and other heat sources.
(3) New-type multi-layer drying line: The 6-layer metal drying line can save more than 30% energy than transmission drying. The main heat source is natural gas, diesel, liquefied petroleum gas, methanol and other clean energy sources.
4. Auxiliary packaging of finished products
(1) Automatic stacking machine
(2) Packing machine
(3)Transfer conveyor
Process of egg tray machine
After-Sales Service
* Training how to instal the machine, training how to use the machine smoothly.
* Engineers available to service machinery overseas.
Our Company
Hebei Wongs Machinery Equipment Co., Ltd is a large enterprise which specialized in producing of various kinds of paper pulp molding products and equipments ,We can product all kinds of paper pulp molding products ,such as egg tray ,egg box ,bottle tray ,paper shoes stretcher ,cans and milk box .Our equipments have already been exported to more than 20 countries,Algeria,Russia,Egype,Ukraine,Australia,Argentina,Brazil,Saudi Arabia,Libya,Syria.Our paper egg tray molding equipment have semi-automatic ,full -automatic,Excellent automatic integral device etc,with different specification different level.Forming Machine include :Rotary type,flip type ,Reciprocating type and Rolled,Drying System:Energy:coal/dry wool/LPG/GAS/Diesel oil,it may be drying naturally in less rain area.Packing System :We have shipping machine withe pneumatic or hydraulic transmission system,we will give you best design according to our requirement.
