Fully Automatic Egg Tray Dryer Machine / Egg Tray Forming Machine 380v 50hz
Fully Automatic Egg Tray Machine Egg Dish Carton Production Line Equipment Egg Tray Making Machine
Paper Egg tray Machine Introduction:
Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.
This multi-function paper pulp molded products forming machine is designed and developed by ouir company. It's mainly used for producing trays, most importantl, the multi-function forming machine can be suitable for big production output requirement. This is a revolutionary breakthrough in paper pulp molded products forming machine field, and now this machine have already gained several mational patent
Specification:
| 2000pcs/hr semi auto paper egg tray machine | |
| Capacity | 3000 pcs/hr |
| Power | 50 kw |
| Mold | 16+4pcs |
| Template Size | 1.470m * 0.47m |
| Operating speed | 10 times /min |
| Space require | 20m * 20m |
| Dryer | Dry by sun or metal dryer |
| Max. Product Height | 70mm |
|
Natural drying method: The product is dried directly by weather and natural wind |
|
Advantage
1. Raw material: Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
2. Automation: Fully-automatic control
3. Quality standard: CE
4. 100% environmentally production process.
5. Engineers available to service machinery overseas
Process for egg tray machine:
Pulping system
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the agitator through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system.

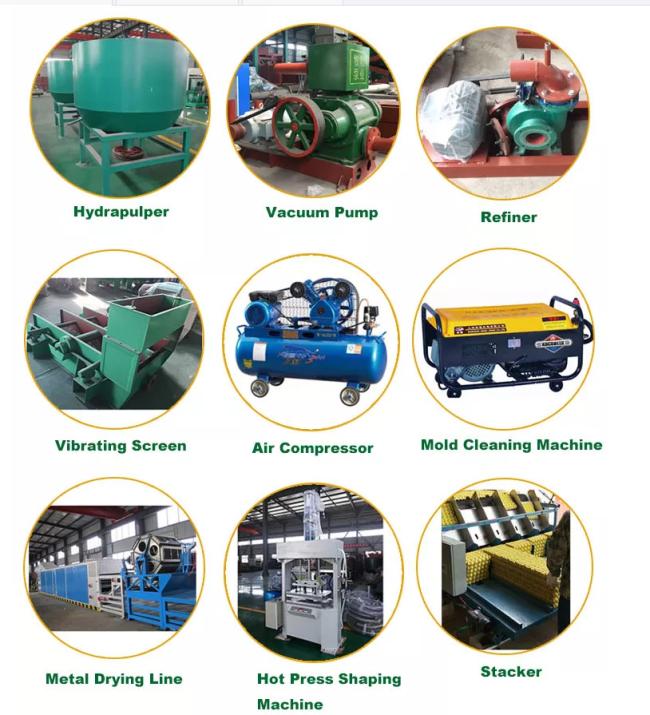

Equipment used: pulping machine, agitator, pulp pump, vibrating screen, pulp disintegrator
2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
Our Sales Service
* Training how to instal the machine, training how to use the machine smoothly.
* Engineers available to service machinery overseas.
Our certificate

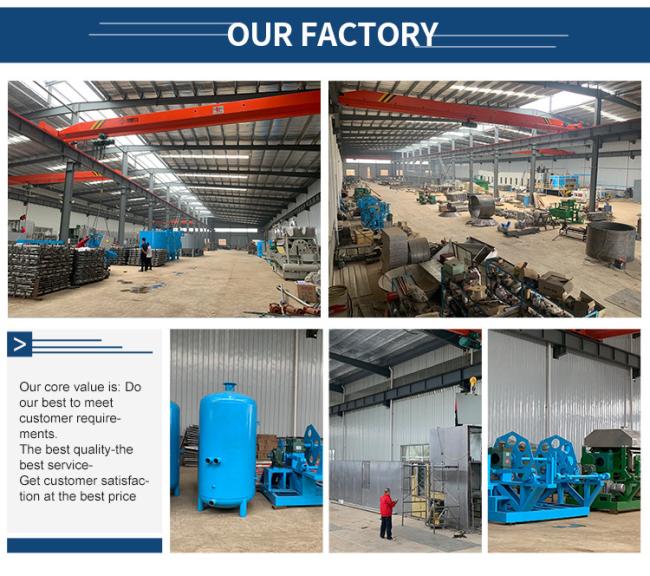

Our Company
