Small Business Plans Of Paper Egg Tray Making Machine For Chick Egg Packaging

Machine Introduction:


egg tray making machine manufacture features of high efficiency, low maintenance and energy saving during the ten year practice. The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products. Such as, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets , kidney trays, wine packs, can trays, seed cubes, ect.


Specification:

Our Company Advantages:

We have our own factory,we can provide quality guaranteed products and price .

1. High efficiency and low cost.

2. Easy operation and reduce labor force.

3. Low noice and Safety.

4. Environmental protection.

5. Large output,1000-1500 pieces per hour.

Equipment process


Pulping system
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the agitator through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system.

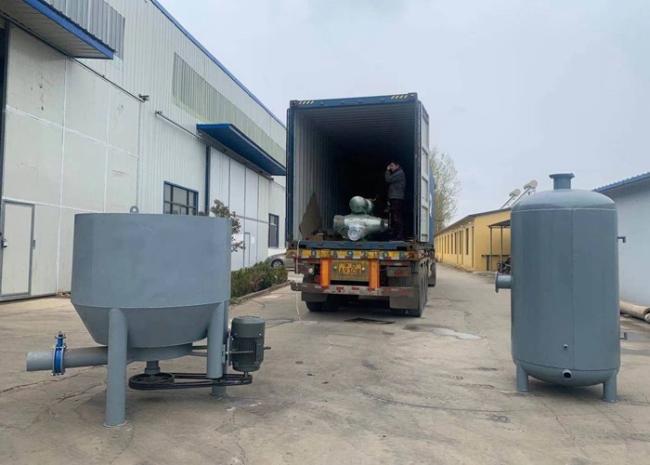

Equipment used: pulping machine, agitator, pulp pump, vibrating screen, pulp disintegrator

2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine

3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.





Process of egg tray machine

Our Company


Hebei Wongs Machinery Equipment Co., Ltd is a large enterprise which specialized in producing of various kinds of paper pulp molding products and equipments ,We can product all kinds of paper pulp molding products ,such as egg tray ,egg box ,bottle tray ,paper shoes stretcher ,cans and milk box .Our equipments have already been exported to more than 20 countries,Algeria,Russia,Egype,Ukraine,Australia,Argentina,Brazil,Saudi Arabia,Libya,Syria.Our paper egg tray molding equipment have semi-automatic ,full -automatic,Excellent automatic integral device etc,with different specification different level.Forming Machine include :Rotary type,flip type ,Reciprocating type and Rolled,Drying System:Energy:coal/dry wool/LPG/GAS/Diesel oil,it may be drying naturally in less rain area.Packing System :We have shipping machine withe pneumatic or hydraulic transmission system,we will give you best design according to our requirement.
