Ailusi Stainless Steel Mixer Filter Equipment Automatic Perfume Making Machine
Perfume Freezing Filter Making Machine
-
Item NO.:AXS-PF
-
Lead Time:20 DAYS
-
Shipping Port:Yangzhou/Guangzhou
-
Payment:EXW, FOB, CIF, etc.
-
MOQ:1
-
Product Detail
Product Description:

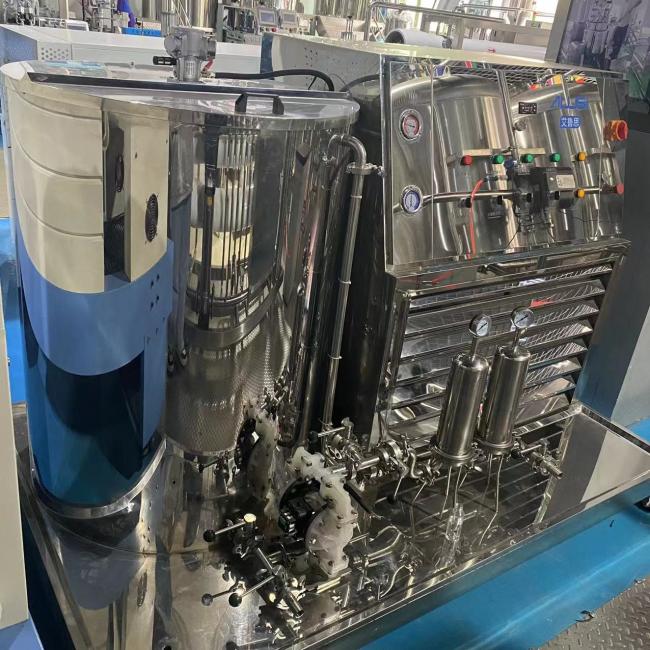

Perfume Freezing Filter is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form , with convenient assembly, disassembly and cleaning.
Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.
Main Features:

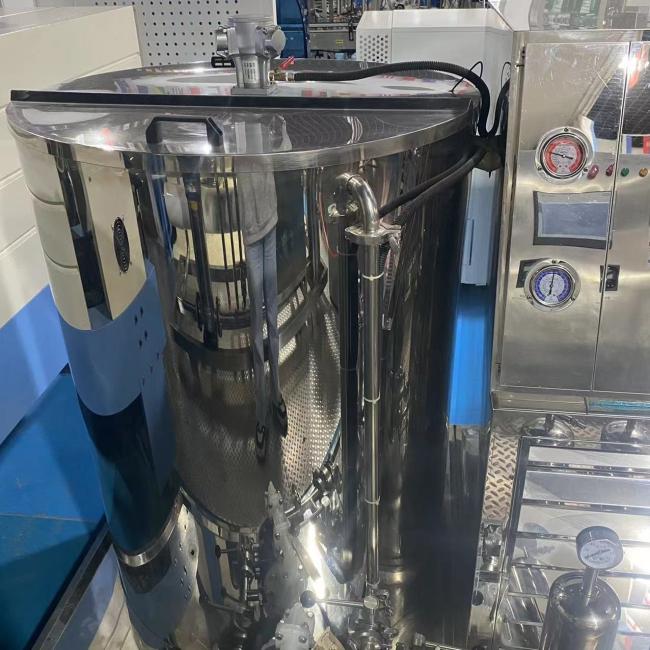

1) Stainless steel insulating frozen tank and Titanium metal pipe
2) Ultra-low temperature chiller (imported)

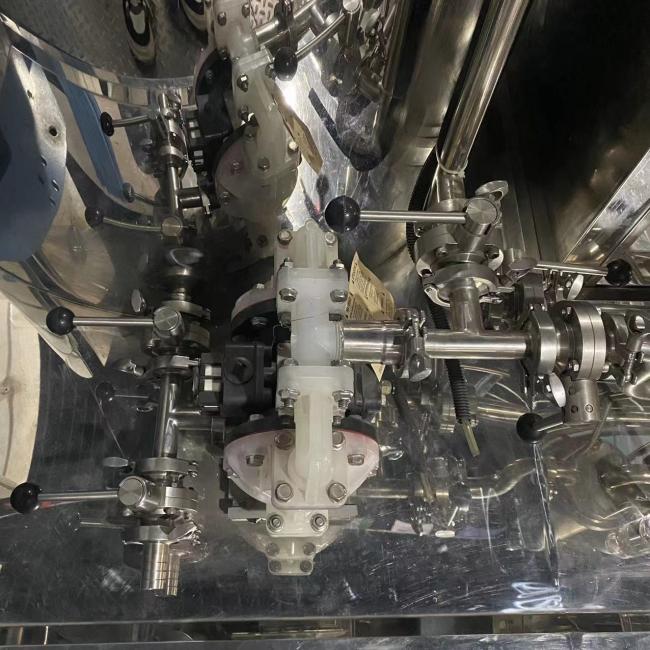

3) Antisepsis pneumatic diaphragm pump

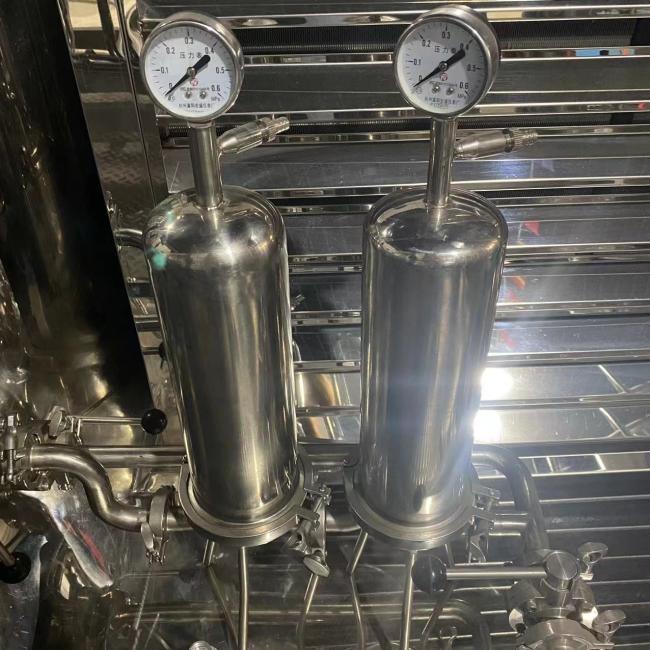

4) Polypropylene microporous filtrating membrane
5) Portable stainless steel bracket

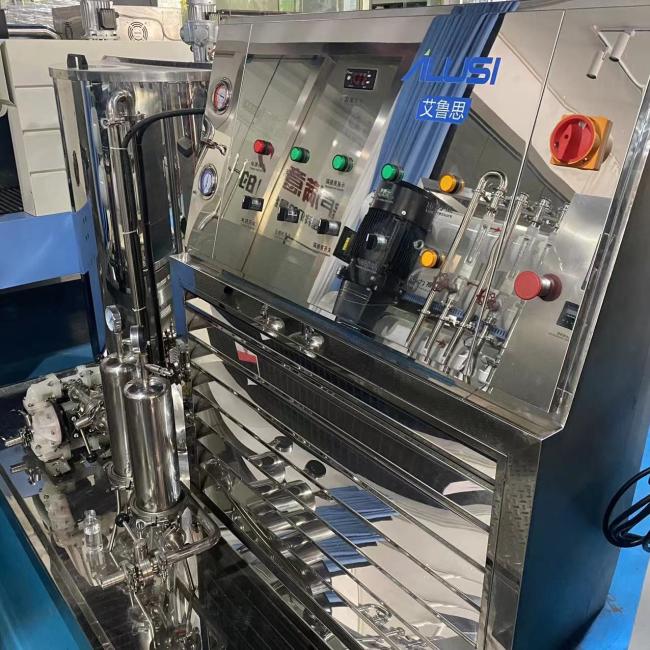

6) Sealed electronic control system & sanitation grade pipes and valves
Technical Parameter:
| Model | 100L (3P) | 200L (3P) | 300L (5P) | 500L (5P) |
| Capacity | 100L | 200L | 300L | 500L |
| Freezing Medium | R22 | R22 | R22 | R22 |
| Filter pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa |
| Air source | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa |
| Freezing Temperature | -15 Celsius degrees | -15 Celsius degrees | -15 Celsius degrees | -15 Celsius degrees |
| Level 1 filter | 1.0um | 1.0um | 1.0um | 1.0um |
| Level 2 filter | 0.2um | 0.2um | 0.2um | 0.2um |
| Power | 2.2KW | 2.2KW | 3.75KW | 7.5KW |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Our service:
After-sales Service: Online support,Video technical support,Free spare parts
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory specialized in Vacuum emulsifying mixer, filling machine, RO water treatment, capping machine and labeling machine…etc for cosmetic, pharmaceutical, chemical equipment over 20 years.
Q2: How does your factory do regarding quality control?
A2: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q3: What’s the guarantee and the after service if we purchase from you?
A3: All the equipment ordered from us will provide one year guarantee from the delivery date.we could send our engineer to install or fix the machine locally.
Q4: Are your machines difficult to operate? How do you teach us to use the machine?
A4: Our machines are easy to operate, before delivery we will shoot instruction video to introduce machines' functions and to teach you how to use them.
Q5: Can you make the machine according to customers' request?
A5: Yes of course, OEM is acceptable. Most of our machines are customized design based on customer's requirements or situation.
