High Quality Horizontal Semi Auto Pneumatic Liquid Filling and Packaging Machine
High Quality Horizontal Semi Auto Pneumatic Liquid Filling and Packaging Machine
-
Item NO.:AFM-ZC
-
Lead Time:10-15 Days
-
Product Orgin:China
-
Shipping Port:Guangzhou Port
-
Payment:DDT, DDP, EXW, C&F, CIF and etc.
-
Price:$1600/Set
-
MOQ:1
-
Product Detail
-

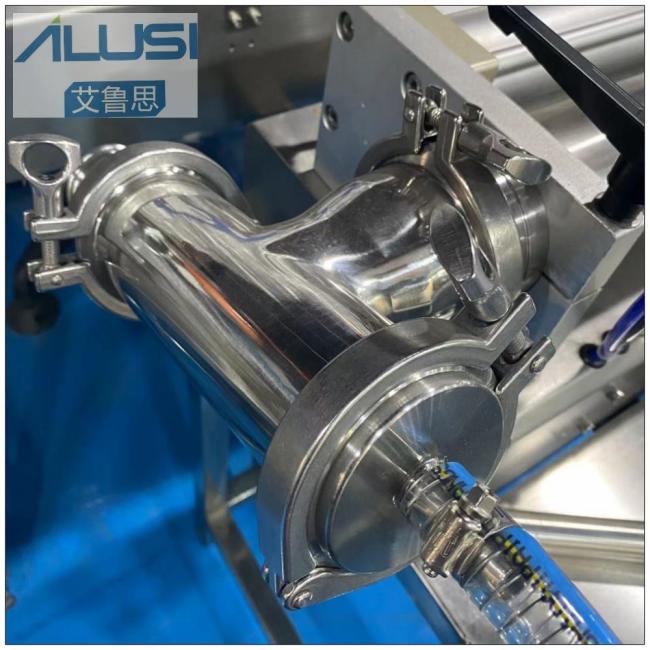

1. Model 250,500,1000 use five-holes valve,SS 316 stainless steel,this valve can be used for filling
paste and fluid products(we are applying for a patent)design for easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;

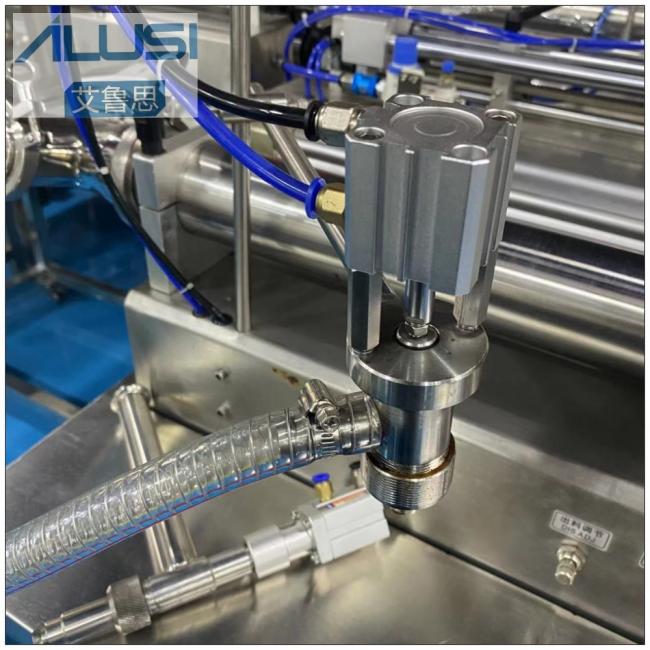

4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place
and height is adjustable,two filling head size attached with machine;
5. Filling speed is quick, it can reach 30times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
Main Features:
1. Hopper is 30L/35L, can be customized.

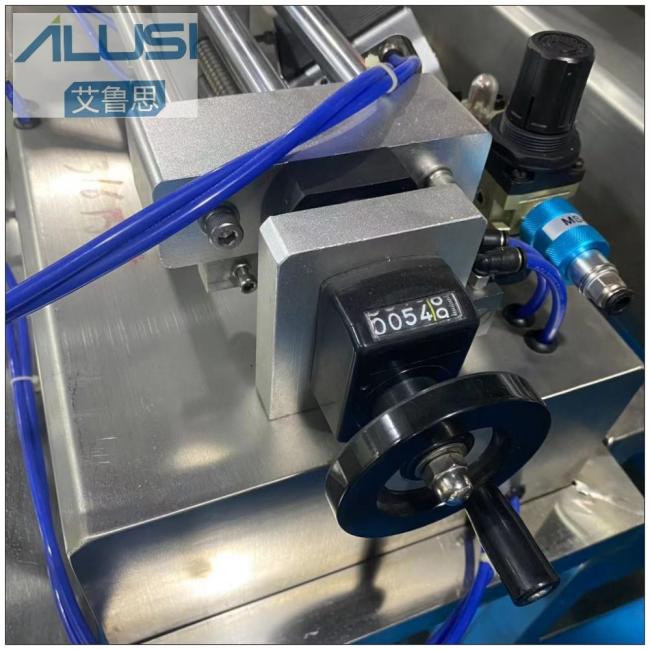

2. Piston feed speed adjustment

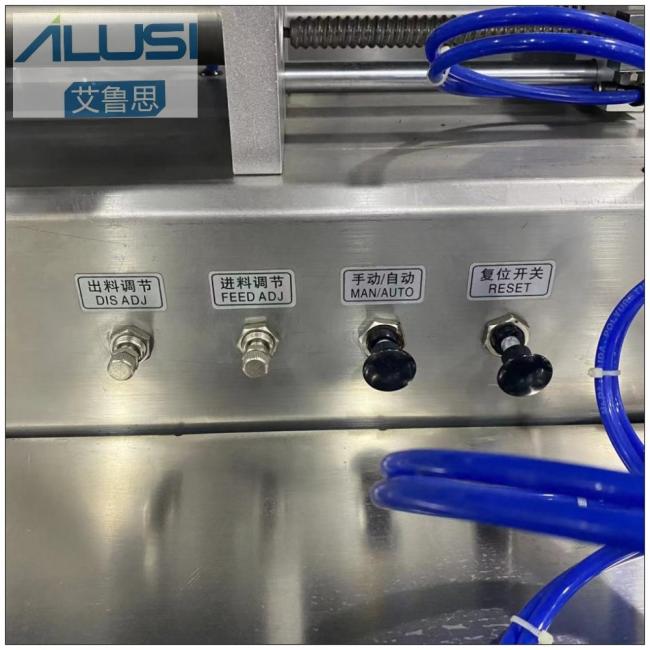

3. Pedal and Automatic filling are available.
4. Adopts pneumatic working principle, simple operation, high filling precision
5. Pneumatic components useTaiwan's AirTac. More durable.
6. Widely used in a variety of liquids and low-viscosity products, if you have no idea, just contact us ;)
* Noted:Cannot be used for non-liquid pastes( if you have no idea, kindly inquiry us and show me your product)
Details of Horizontal Filling Machine:
1.Contact parts are made for 316L Stainless steel, other parts are 304 Stainless steel, GMP Grade Standard.
2.Quick open cartridge, removable, easy to clean;
3.Movable wheels, easy to remove.
4.Self-suction for Liquid, Hopper Filling for Cream
5.Filling Nozzles can be customized according to the size of your bottles/Jars.
6.The filling volume is controlled by the size of the cylinder,filling range option: 10-100ml, 25-250ml, 50-500ml, 100-1000ml, 500-5000ml.(please 7.kindly let us know your bottle size and bottle volume, thank you ;)
8.Can add Jacket heating and Hopper Mixing.
9.The height can do customized, can be equipped with Semi automatic Capping Machine, Semi automatic Flat Bottle Labeling Machine
Factory:
Package & Delivery:
To ensure the quality of our service, we will follow the standard package upon delivery:
1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.
2. All products are packed in wooden boxes. Firmly fix the edge of the foot of the equipment to adapt the machine to the requirements of loading and uploading.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
