• Item NO.:AFS

• Lead Time:30 DAYS

• Product Orgin:China

• Shipping Port:Guangzhou Port

• Payment:EXW, C&F, CIF and etc.

• Price:$3500/Set

• MOQ:1

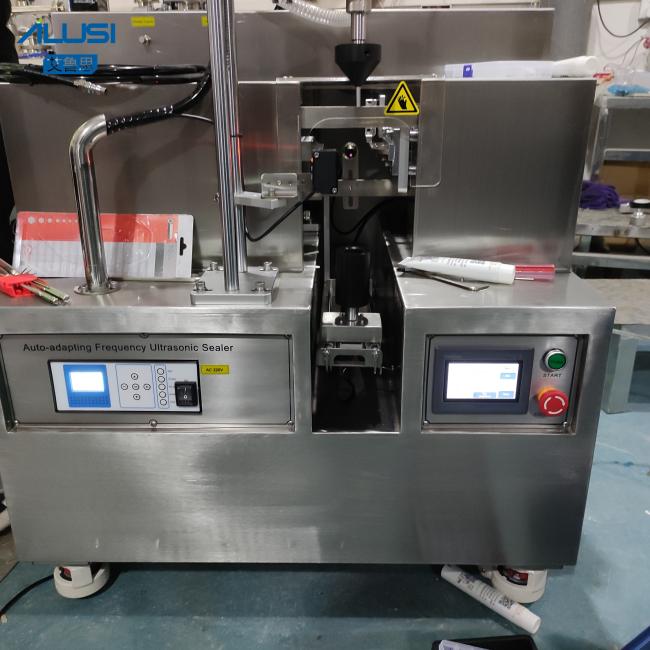

1,Automatic control system by PLC and touch screen. The electrics brand is customized.
2,intelligent temp control and cooling system makes sealing more reliable
3,With easy and quick adjustment, multiple kinds of tubes can be filled on one machine
4,Original Swiss LEISTER heater is adopted to get more steady and reliable sealing
5,The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to GMP standard
6,With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed.
7,The production capacity can be realized and control automatically, normal speed is 40~60pcs/min
8,Human-machine interface with direct display and control.
9,Automatic detection of tube direction inversion., SICK inversion detection photo sensor can accurately detect the inverted tube.
10,No tube no fill, preventing a waste of the materials
11,The machine can stop automatically when the production is completed by the setting quantity
12,All parts of filling are assembled by quick couplers, which makes it convenient to clean and sterilization.
13,The machine is stepless frequency conversion timing system. The filling speed can be set easily
14. The air blow system is installed at the filling nozzle, cutting the material and no drop
15. The mechanical parts are of famous brand with lubricants maintenance, no noise or pollution.
16. High quality cam is applied for indexing
17.The machine is designed to connect the automatic material feeding system with the emulsifying machine or mixing machine conveniently Overload Protection Provided
18. Overload Protection Provided
19,High-viscous material will have automatic temperature control and blending system.(optional)
20,Nitrogen Injection Function (optional)
21,Material feeding pump. (optional)
22,Water cooler(chiller). (optional)

Working Process:

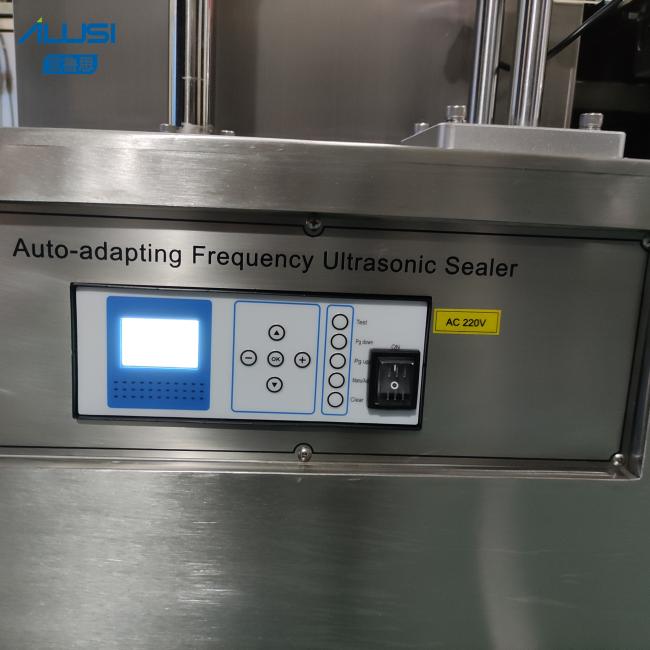

Tube loading by hand -->Color mark orientation -->Ultrasonic sealing and date coding-->Cutting

Application:

It can be used for pharmaceuticals, food products, cosmetics, and chemicals.

*Cosmetic: Face Cleaner, Hand Cream, Eye Cream, Sunscreen, Acne cream, Hair removal cream, Body lotion, Whitening Cream, etc.

* Food: Mayonnaise, Cheese, Peanut butter, etc.

* Pharmaceuticals: Ointment, Unguent, Paste, Toothpaste etc.

* Chemicals: Painting, Shoe polish etc.

Factory:

Our Factory:

Package & Delivery:

To ensure the quality of our service, we will follow the standard package upon delivery:

1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.

2. All products are packed in wooden boxes. Firmly fix the edge of the foot of the equipment to adapt the machine to the requirements of loading and uploading.

Our Servers:

Ailusi provide Turn-key Project Service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;
