Stainless Steel Multi Function Automatic Pouch Snacks Weighing & Packaging Machine System for Food
SUS304 Snacks Packaging MachineMulti Function Snacks Packaging Machine |
| Features: |
- Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
- Use famous brand electric and pneumatic components, stable and long life circle.
- Use superior mechanical components, reduce the wear out loss.
- Easy to install film, auto correcting the excursion of the film.
- Apply advanced operating system, easy to use and reprogrammable. To be used on Jintian High quality machine, it makes your packing work easily and efficiently.
| Specification: |
| TY-420 Vertical packing machine |
|
|
Bag length | 50-300mm(L) |
| Bag width | 50-200mm(W) | |
| Max width of roll film | 420mm | |
| Packing speed | 10-60bags/min | |
| Air consumption | 0.65Mpa | |
| Gas consumption | 0.3m3/min | |
| Voltage | 220V/50Hz | |
| Power | 2.2KW | |
| Dimension | 1080mm(L)*1300mm(W)*1400mm(H) | |
| Machine weight | 600KG |

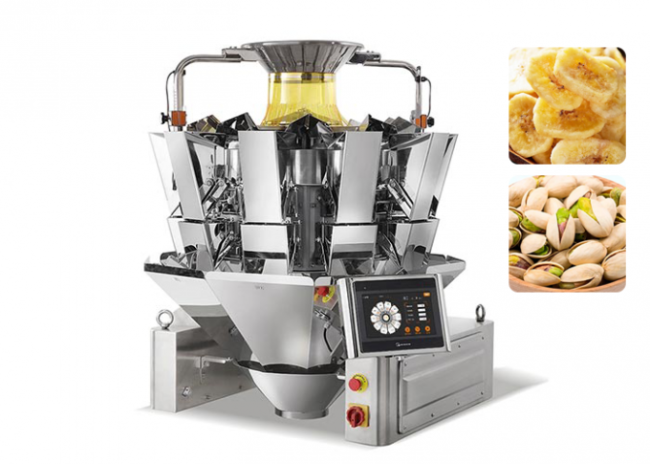

| 10 heads scale(weigher) |
 |
Max. Cap.(g) | 10-1000g |
| Weighing Accuracy(g) | ±0.5-2g | |
| Max. Weighing Speed | 65PPM | |
| Hopper Volume | 1600ml | |
| Control Panel | 7 "LCD Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Rotary Top Cone | |
| Driving System | Step Motor | |
| Power Requirements | 220V / 1000W / 50/60HZ / 10A | |
| Packing Dimension(mm) | 1620(L)x1100(W)x1100(H) | |
| Gross WGT | 420KG |
| Z-shape material elevator |
|
|
Model | Z-180 |
| Convey speed | 3750mm/min | |
| Power | 750W | |
| Convey Measure | 4T/H(Rice) | |
| Overall size | 3000(L)×650(W)×3750(H)mm |
| Platform for scale(weigher) |
|
|
Model | PL-1A Platform |
| Maximum Loading Weight | 2T-3T | |
| Equipment Size | 2000mm*2000mm*2000mm | |
| Net Weight | 350kg |
| Finish product conveyor |
|
|
Model | FC-1A |
| Convey speed | 30M/min | |
| Belt | Food grade polypropylene(PP) | |
| Voltage | Single-phase AC220V,50HZ | |
| Power | 40W | |
| Packing size | 1600mm(L)*520mm(W)*1000mm(H) |
| Application: |
Suitable for many kinds of measuring equipments, and package different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.
>>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance are available for you.
2. If any problems happened, telecom or online face to face communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong China
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product? Is it easy damaged during transportation?
A: No. We takes of wooden case and it is very safe.
Q4. What's your main product?
A: We are professional in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine
Q5. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
Q6. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products for customers.
