RGB Small pixel pitch Indoor P1.53 SMD full color led display screen module

Function and Technology Character Introduction:

1, The module can support the maintenance and installation before magnetic suction, the maintenance before the simple iron box, and the maintenance before the die-cast aluminum box. The installation method is selected according to the on-site construction environment, and the disassembly is simple and quick.

2,  High-precision size, the geometric shape and size design deviation between the cabinets is only 0.02 mm, so the unit cabinets are almost the same size, after assembly, the gap is uniform, the entire screen is very flat, the effect is good, and the quality is good.

3, Energy-saving, environmentally friendly, cost-effective, the LED display luminescent material itself is an energy-saving product, equipped with a dedicated constant current drive, energy-saving IC and high conversion rate drive power, and the brightness can be automatically adjusted.

4, The LED display screen can be spliced in any size and in any direction, and a variety of video source specifications can be selected, easily achieving FHD and 4K large screens.

Products Applications:

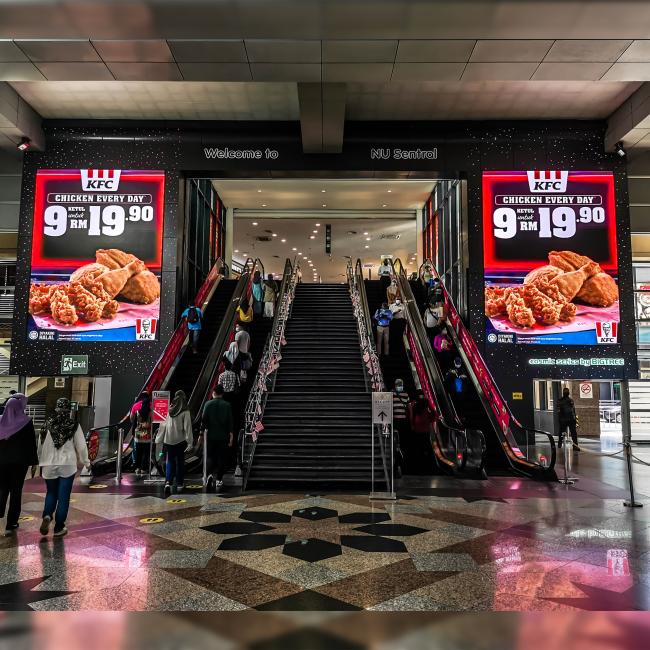

Widely used in churches, control command centers, video surveillance centers, high-definition information release, conference display systems and other commercial venues

SPECIFICATIONS Parameters:

weiye color series led strip display screen  advantage:

1, Using a variety of scanning technologies, and modular design requirements, higher reliability and stability.

2, The circuit board adopts wave soldering process and has a green oil oxygen barrier to prevent moisture and oxidation of the circuit and increase the service life.

3, Using a new type of surface mount package, the display is clearer and the color is more stable, can achieve single-point maintenance, and more efficient and energy-saving.

4, High contrast can achieve a good display effect, using ultra-bright LEDs and high-quality plastic kits.

5. It is light in weight, easy to install and disassemble, and uses constant current to drive the LED, with uniform light emission and low power consumption. Each pixel is composed of 1R1G1B.
