6 Holes Motor Nosepiece All-in-One Industry Microscope
6 Holes Motor Nosepiece All-in-One Industry Microscope

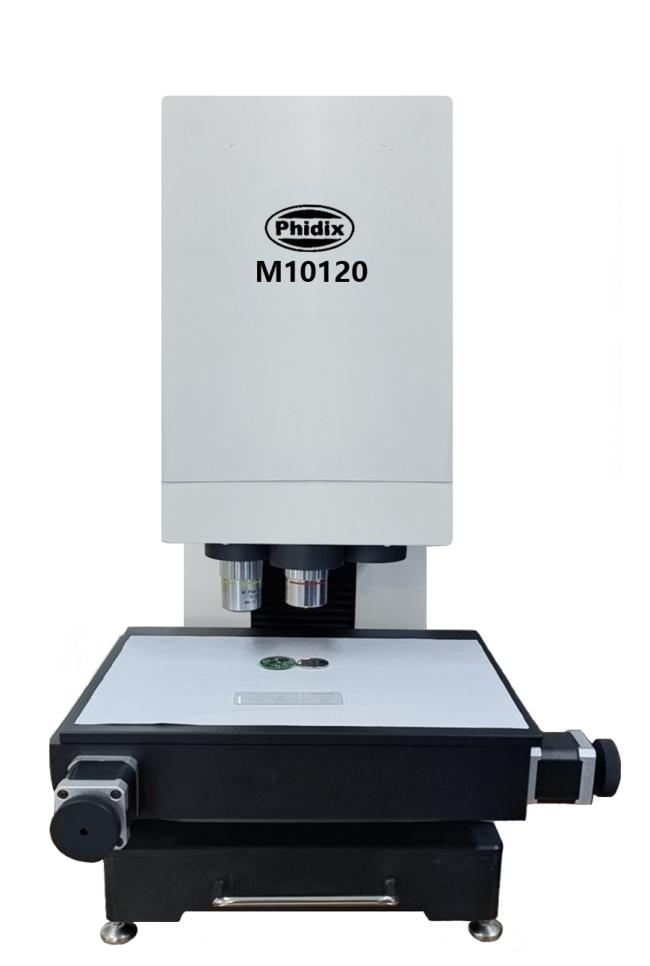

M10120 is a microscope system that integrates observation+measurement+recording. It integrates stereo microscope, metallurgical microscope, 3D measuring microscope into one,through leading automatic lighting observation,motorized platform with large moving range 300*300mm,to fully functional user interface, in a real sense,from macro-scale imaging to micro-scale detailed measurement.
Features: Take optical focusing as the measuring principle,and adopt high-precision optical detection method for precise dimension measurement. Not only can the target image be aligned, but also the surface state of the measurement point can be observed, and the height,length,diameter,circumference,etc. Can be measured. High magnification,suitable for the measurement of precision products,and can also be used as a high-power microscope.
3D Full Auto Scanning Measurement System
The new M10120 Research-grade Metallurgical Microscope has upgraded to XYZ motorized working stage model,combined with the powerful 2D/3D software,which integrates a number of firsts.From appearance to performance,it closely follows the international leading design trend.We will continue to provide customers with complete 3D industrial inspection solutions.
M10120 Industrial Automatic 3D Microscope
•Motorized Industry Measuring System With Computer&Software
•Motorized Nosepiece 6 Holes With Infinity Plan LWD Metallurgical 5x10x20x50x100x
•X/Y/Z Motorized Working Stage Moving Range 50x50/200mm Resolution 15um
•Marco Camera Real Time Electrical Map To Overview&Guide To Any Interesting Point
•3D Advanced Version Software Include Full Auto 2D&3D Image Stitching&Measuring Function
| Items | Specification | M10127 |
Main Body | Nosepiece: 6 Holes Coding Motorized Nosepiece | ● |
| Objective: Infinity LWD Metallurgical Semi-APO 5x,10x, 20x, 50x,100x | ● | |
| LED Life Time: 40000 Hours | ● | |
| View Method: Reflect LED | ● | |
| View Method: Polarizing | ○ | |
| View Method: DIC | ○ | |
XYZ Motorized Stage | Repeatability: 15um | ● |
| Repeatability: 3um | ○ | |
| Moving Speed: 12mm/sec(max) | ● | |
| Moving Range: 50x50x200mm | ● | |
| Stage Size: 150x170mm | ● | |
| Stage Load: 10kg | ● | |
| Z Motorized Control | Auto Focus Speed 0.3 Second(Fastest),Normally 1-3 Seconds | ● |
| Z Resolution: 0.1um | ● | |
| Moving Speed: 20mm/sec(max) | ● | |
| Moving Range: 20mm | ● | |
| Micro Camera | 9MPA Digital Camera: 9.0M USB3.0 GS Shutter Digital Camera,1 CMOS, C-Mount, FPS 34@4096x2160, 60@2048x1080, G Sensitivity Dark Signal 1146m with 1/30s | ● |
| Round Stage | 360° Rotatable, 30°Incline Angle Adjustable | ○ |
| Marco Camera | View Field Up To 70mm*90mm, Resolution 0.2mm | ○ |
| Computer | Dell Xeon W-2265 12 Core 3.5GHz, 128G+1TNVMe 4T, RTX4000-8G, 27"4K, | ● |
Dell i5 64G 256G+1T, 2G Graphic, 27"4K, Pre-Installed Software. | ○ | |
| Software | 3D, Add 3D Scan, For XYZ Stage+Computer | ● |
| 2D, Plane Scan,For XY or XYZ Stage+Computer | ○ | |
| 2DF, Add Up/Down Fusion Scan, For XYZ Stage+Computer | ○ | |
| Image Format | Output: JPEG,TIFF | ● |
Motorized | XYZ Motorized Working Stage,2-Phase Stepping Motor, High Precision Module, Aluminum Alloy Material,Surface Anodized,Anti-Corrosion And Scratch-Resistant | ● |
Note: ● means standard, ○ means optional
Full Auto Microscope Scanning Software
2D 2DB
X/Y Motorized X/Y/Z Motorized
2D Plane Scan 2D Bevel Scan
2DF 3D
X/Y/Z Motorized X/Y/Z Motorized
2D Fusion Scan 3D Scan
