Metallurgical Dark Field Microscope 50X 500X Bright Ground Trinocular
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
15-20 Work Days
Brand:
Phidix
Product Description

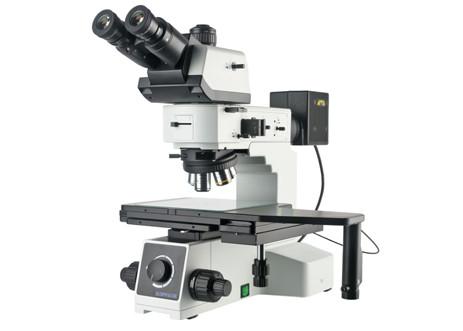

50X-500X Trinocular Bright And Dark Field Metallurgical Microscope
M18100 50X-500X Trinocular Bright And Dark Field Metallurgical Microscope The product could be widely used in various industrial applications with perfect performance.
| Item | Description / Value |
| Magnification: | 50X,100X,200X,500X |
| Optical System: | Infinity Chromatic Aberration Correction Optical System |
| Eyepiece: | High Eye Point large Field of View flat Field Eyepiece PL10X22mm |
| Objective lens: | LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective |
| Observation Tube: | Adjustable 5-35° inclination angle Three-Way Observation Tube With Infinite Hinge, Inter-pupillary Distance Adjustment:50-76mm,Unilateral Diopter Adjustment:±5 Diopter, Two-level Split Ratio 100:0 or 0:100 |
| Objective Lens Converter: | Inverted Bright and Dark Field Five-Hole Converter With DIC Slot |
| Coarse and Fine Focusing Mechanism: | Translucent and Reflective Frame, Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism. Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device |
| Operating Platform: | 6-Inch Three-layer Mechanical Mobile Platform, Low-Hand Position X,Y Direction Coaxial Adjustment, Platform Area 450mm×220mm,Reflected illumination Movement Range:158mm×158mm;Transmission illumination Movement Range:100×100mm,With Clutch Handle, Can Be Used For All Fast Moving Within The Range of Travel, Glass Stage Plate (For Transmission and Reflection) |
| Upper Lighting System: | Built-In 100-240V Wide Voltage System,5W Warm Color LED Transmitted Light illumination System, Independent Control of Upper and Lower Light; With Filter Slot and Polarizing Device Slot; With Bright and Dark Field Switching Mechanism, Preset Center, Light Intensity Continuously Adjustable |
| Under Lighting System: | Single High-Power 5W Warm Color LED White Light, Continuous Adjustable Light Intensity |
| Condenser: | Transmissive Shake-Out Achromatic Condenser (N.A0.9) With Variable Aperture Stop, Center Adjustable |
| Polarizer: | Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
| Trinocular Interface: | 0.5X C-mount Interface, Adjustable Focus |
