Trinocular Portable Metallurgical Microscope Transmission Light PL10X22mm 5W LED
Trinocular Metallographic microscope with transmitted and reflected illumination for material analysis

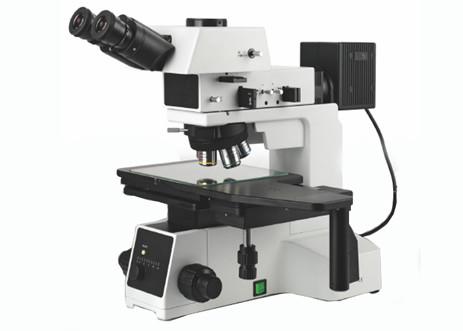

M10102 Trinocular Metallographic microscope with transmitted and reflected illumination for material analysis, flexible system, excellent imaging performance and stable system architecture are special designed. This series are professionally used in industrial testing and metallographic analysis. The operating mechanism is based on ergonomic design, which can maximum reduce fatigue during using. Modular component design can freely assemble. This product integrated bright-field, oblique illumination, polarizing, DIC differential interference and other observed functions based on the practical application of functional selection.
Features:
- Achieving X, Y directions 105mmx105mm range of movement
- The new design of long working distance professional metallurgical objective, high power objective with semi-apochromatic technology
- Under a variety of observation methods, it’s available to get sharp and high-contrast microscopic image
- Well-equipped system with accessories can be flexibly combined with the functional expansion
- Ergonomic design, reliable system architecture
| Item | Description / Value |
| Head: | Hinged trinocular head |
| Eyepiece: | PL10X22mm |
| Nosepiece: | 5 Holes Revolving Nosepiece |
| Objective: | Bright field and dark field infinity metallographic objective |
| Stage: | 6" Three-layer pile mobile platform, stroke 158x 158mm, Workbench, right hand position X, Y movable hand wheel, with clutch handle, can move quickly |
| Body: | With coarse adjustment mechanism upper limit and tightness adjustment device. Built-in 100-240V wide voltage transformer, single power output |
| Focusing: | Coaxial coarse and fine adjustment |
| Reflective illuminator system: | With variable field of view, adjustable center, with color filter insert and polarizing device Plug, with switching mechanism of light and shade field, preset center, continuous light intensity adjustable |
| Transmitted lighting system: | Single high-power 5W LED, white, light intensity continuously adjustable. N.A.0.5 condenser with variable aperture diaphragm |
| Gross Weight: | 7.80 kg |
| package size: | 64X34X41 cm |
