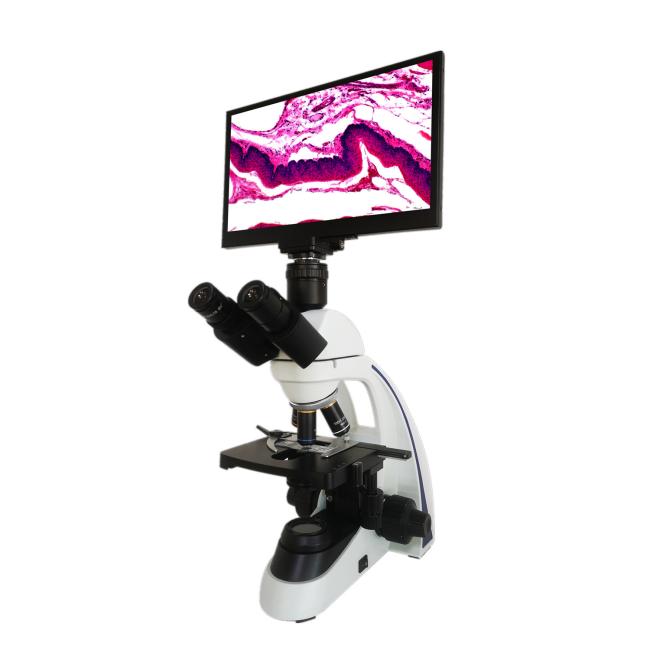

Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis
Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis
M12109 Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis The product is very easy to use with high quality performance which is an ideal choice for basic research and teaching experiments.
Features:
- Portable for easy use in different places, well anti-shake design.
- LED cold light, comfortable to adjust the brightness based on environmental changes.
- The tube can rotate by 360 degrees. It’s permitted the researchers to observe from different directions.
- Ergonomics designed rigid frame, with handle for carry.
- All metal material with cover, anti-fungi, anti-bacteria.
- Competent for research lab, hospital and clinic, school lab.
- With LCD.
| Item | Description / Value | M12109 |
| Optical system: | Plan achromatic optical system. | ● |
| Observation method: | Bright field. | ● |
| View tube: | Binocular/Trinocular head, 30 ° inclining, 360°rotating. Diopter adjustment on the left eyepiece. Adjustment of interpupillary distance 50-75mm. |
● |
| Eyepiece: | Wide field WF10X /18mm. | ● |
| Optional WF16X. | ○ | |
| Objective: | Plan Achromatic Plan 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion). | ● |
| Nosepiece: | Quadruple reversed angle nosepiece, revolver with rotation on ball bearings. | ● |
| Illumination: | White LED lamp illuminator. LED power: 3W, Color temperature: 6300K. | ● |
| Focusing mechanism: | Coaxial positioning system. Movement by roller guider (Roller and pinion). Rubber grip around fine and coarse adjust knob. Tension adjustment of coarse regulation knob. Upper limit stopper for protecting the lens and sample. |
● |
| Stage: | Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm. Moving range: 76mm ×52mm. Vernier scale on both axes of movement with an accuracy of 0.1mm. |
● |
| Condenser: | Removable Abbe condenser, NA1.25 with aperture iris diaphragm. | ● |
| Body: | Ergonomics designed rigid frame. With handle for carry. All metal material with cover. Anti-fungi, anti-bacteria. | ● |
| Accessories: | Manual, dust cover, power cord of local standard. | ● |
| Package: | 48.5*30.5*55.5CM, 7kg | ● |
| Power supply: | AC100-240V, 50/60Hz | ● |
| Screen: | 12” Touchpad screen. | ○ |
| 13” LCD screen. | ○ |
Note: ● means standard, ○ means optional
