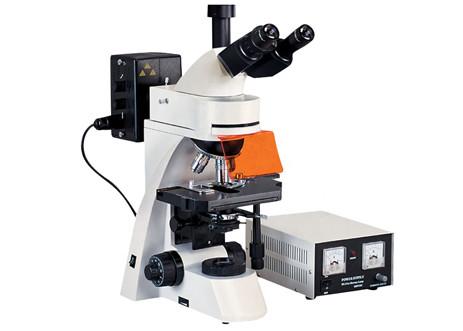

Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope
40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope
M15102 40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope Infinity chromatic aberration correction optical system, with the newly upgraded Kohler lighting system makes clear and bright microscopic images at every magnification.
Features:
- It is an infinity fluorescence microscope with excellent optical system.
- It can be used to for biology, cytology, oncology, genetics and immunology research.
| Item | Description / Value |
| Optical system: | Infinity achromatic optical system |
| Observation: | Bright field and Fluorescence. |
| View tube: |
Trinocular, 30 ° inclined, 360° rotation. IPD adjustment: 54mm ~ 75mm. Diopter adjustment: ± 5 diopters. |
| Eyepiece: | High eye level wide field WF 10 × (Φ22mm). |
| Objective: | Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X |
| Nosepiece: | Standard: Four-position/quadruple. Optional: Five-position/quintuple |
| Stage: | Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 210× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper. |
| Focusing: | Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um. |
| Condenser: | NA1.25.With aperture iris diaphragm. |
| Illumination system: | High light long working life LED lamp for transmitted illumination, brightness adjustable. |
| Fluorescence Kit: |
Mercury lamp: 100W/DC for fluorescence illumination. Fluorescence filter: Optional Blue: 420-485nm. Green: 460-550nm. UV: 330-400nm. V: 95-415nm. |
| Camera adapter: | 0.5X or 1X C-Mount. |
| Camera: | Optional |
| Power supply: | AC100-240V, 50/60Hz. |
