Infinity 195mm 160mm Achromatic Lens Microscope Objectives Metallurgical
Infinity 160mm 195mm Objective Lens For Both Biological And Metallurgical Microscope
M21104 Infinity 160mm 195mm Objective Lens For Both Biological And Metallurgical Microscope. M21104 is a series of objective lens for both biological and metallurgical microscopes. And the exact magnification and color needed should be confirmed before purchasing.
Features:
- Universal industrial objective lens for both biological and metallurgical microscopes.
- Long life span.

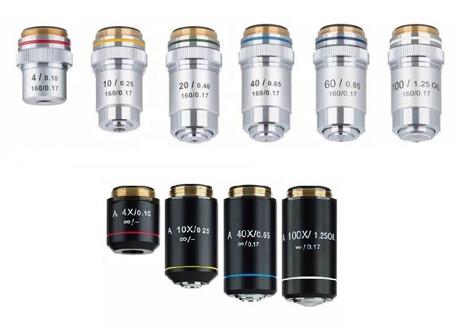

| Item | Description / Value |
| 4X, Silver | 4/0.10, 160/0.17 |
| 5X, Silver | 5/0.15, 160/0.17 |
| 10X, Silver | 10/0.25, 160/0.17 |
| 20X, Silver | 20/0.40, 160/0.17 |
| 40X, Silver | 40/0.65, 160/0.17 |
| 60X, Silver | 60/0.85, 160/0.17 |
| 100X, Silver | 100/1.25 Oil, 160/0.17 |
| 4X, Black | A 4X/0.10, ∞/- |
| 10X, Black | A 10X/0.25, ∞/- |
| 40X, Black | A 40X/0.65, ∞/0.17 |
| 100X, Black | A 100X/1.25 Oil, ∞/0.17 |
Remarks: the A/M objectives are designed for upright microscopes with different types as below:
1. Infinity Plan achromatic objective
- PL 4X/0.10
- PL 10X/0.25
- PL 20X/0.40
- PL 40X/0.65(Spr.)
- PL 60X/0.85
- PL 100X/1.25(Spr., Oil)
2. Infinity Plan achromatic phase contrast objective
- PL 10X/0.25 PHP
- PL 20X/0.40 PHP
- PL 40X/0.65 PHP(Spr.)
- PL 100X/1.25 PHP(Spr. Oil.)
3. Plan achromatic objective
- PL 4X/0.10
- PL 10X/0.25
- PL 20X/0.40
- PL 40X/0.65(Spr.)
- PL 60X/0.85(Spr.)
- PL 100X/1.25(Spr., Oil)
4. Achromatic objective
- 4X/0.10
- 10X/0.25
- 20X/0.4
- 40X/0.65
- 60X/0.85(Spr.)
- 100X/1.25(Spr., Oil)
