40X-1000X Binocular Phase Contrast Microscope

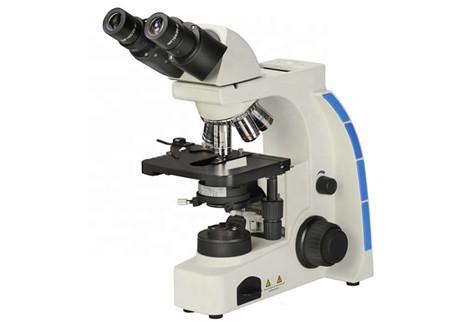

M17103 40X-1000X Binocular Phase Contrast Microscope. M17103 is designed as phase-contrast microscope, which is an optical-microscope technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations.
Features:
- Uniform illumination with consistent color temperature.
- Enables users to remain comfortable during long periods of routine microscopy observations.
- Competent for scientific research, medicine, industry, agriculture and education.
| Item | Description / Value |
| Optical system: | UCIS Infinity independent achromatic optical system |
| Head: | Seidentopf binocular head 30° inclined, 360 ° rotatable interpupillary distance 52-75mm |
| Eyepiece: | WF10X/20mm |
| Objective: |
Infinity Achromatic objective 4X; Infinity Achromatic phase-contrast objective 10X; Infinity Achromatic phase-contrast objective 40X; Infinity Achromatic phase-contrast objective 100X; |
| Nosepiece: | Four-hole converter |
| Magnification: | 40X~l000X |
| Focusing mechanism: | Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm |
| Light source: |
6V20W halogen illumination, brightness adjustable; 6V30W halogen illumination, brightness adjustable; 3W LED, brightness adjustable |
| Condensor: | N.A. 1.25 Phase contrast condenser, center adjustable |
| Stage: | Mechanical stage with double layers, 156mmx138mm, movement range 76mmx 52mm |
