RPC8211FP QFN40 RPCOM highly integrated Ethernet transceiver IC
RPC8201F RPCOM single-port 100Mbps Ethernet physical layer IC
Electronic components Integrated Circuits (ICs)
Description:
The RPC8211FP(I) is a highly integrated Ethernet transceiver that complies with 10BASE-Te,100BASE-TX, and 1000BASE-T IEEE 802.3 standards.
It provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT.5E UTP cable.
The RPC8211FP(I) uses state-of-the-art DSP technology and an Analog Front End (AFE) to enable high-speed data transmission and reception over UTP cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk
cancellation, echo cancellation, timing recovery, and error correction are implemented in the RPC8211FP(I) to provide robust transmission and reception capabilities at 10Mbps, 100Mbps,or 1000Mbps.
Data transfer between MAC and PHY is via the Reduced Gigabit Media Independent Interface
(RGMII) for 1000BASE-T, 100BASE-TX and 10BASE-Te. The RPC8211FP(I) supports various RGMII signaling voltages, including 3.3V, 2.5V, and 1.8V.
The RPC8211FP(I) features a RPCOM proprietary feature called LRE100-4, which enables the device to auto-negotiate and link up with LRE100-4 compliant link partners in extended cable reach applications up to 400 meter at 100Mbps over CAT.5E cable.
Applications:
DTV (Digital TV)
MAU (Media Access Unit)
CNR (Communication and Network Riser)
Game Console
Printer and Office Machine
DVD Player and Recorder
Ethernet Hub
Ethernet Switch
Base Stations and Controllers
Routers, DSLAMs, PON Equipment
Test and Measurement Systems
Industrial and Factory Automation Equipment
Multimedia synchronization and Real Time Networking
Any embedded system with an Ethernet MAC that needs a UTP physical connection
Specification :RPC8211FP It is a highly integrated Ethernet transceiver IC.
| Category | Integrated Circuits (ICs) |
| Product Name | Electronic components |
| Model number | RPC8211FP |
| Mfr | RPCOM |
| Series | Wired Internet of Things (IoT) IC chips |

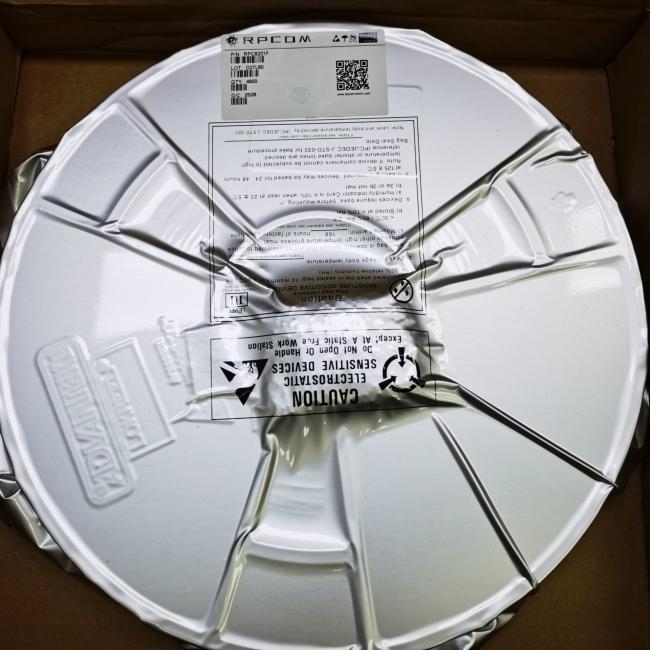

| Package | Standard package REEL |

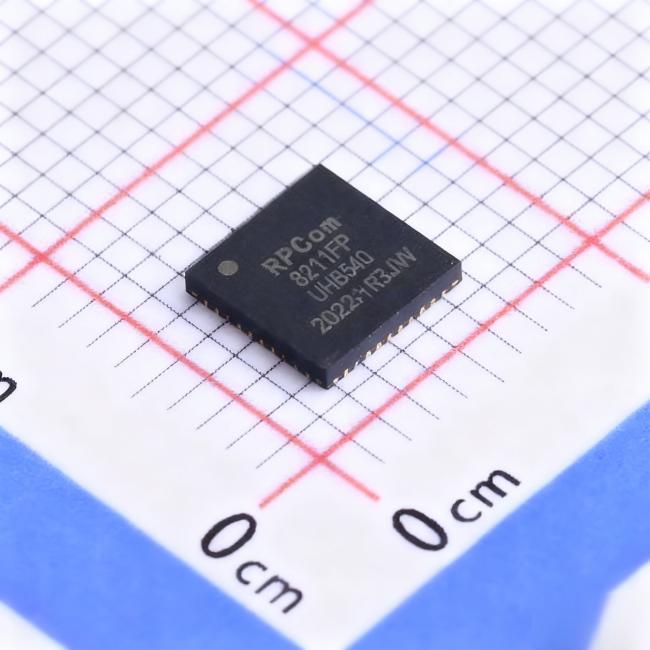

| Condition | It complies with 10BASE-Te, 100BASE-TX, and 1000BASE-T IEEE 802.3 standards. It provides all the physical layer functionality required to transmit and receive Ethernet packets over CAT.5E UTP cables. It is manufactured using a 90nm process, packaged in a QFN40, and measures 5x5 mm |
| Lead time | In stock can be shipped ASAP |
| Features | RPC8211FP It is a highly integrated Ethernet transceiver IC. |
| Mounting Type | Surface mounting QFN40 |
| Base Product Number | RPC8211 |
