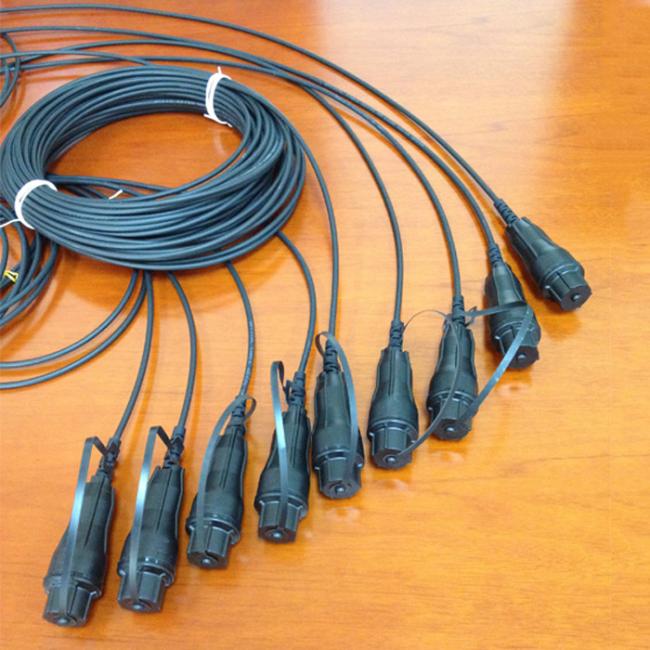

Te Fullaxs Patch Cord Connector Bayonet Style Locking Waterproof
Price:
Negotiable
MOQ:
10
Delivery Time:
7-10 day
Brand:
GaPho
Product Description
Te-Fullaxs Waterproof Cable Connector High Quality
| Specifications | ||||
| Mating mechanism | bayonet style locking | |||
| Housing material plug | high performance plastic | |||
| Technology | LC with full ceramic ferrules | |||
| Mechanical performance | tensile load | 150N | ||
| static side load | 30N | |||
| Operting temperature | -40r to +85P | |||
| Mating durability | IEC 61300-2-2 | 10Ocycles | ||
| Ingress protection (mated) | IEC 60529 | IP65/IP67/IP68 | ||
| Vibration | IEC 61300-2-1 | passed 10Hz—500Hz/1 Oq | ||
| Performance standards | IEC 61753-1 CAT.E | compliant | ||
| Telcordia GR3120 | compliant | |||
| Dimensions | Length Diameter | 119mm 036mm | ||
| Cable diameter | 04.5—9mm | |||
| Optical performance | ||||
| Insertion loss | singlemode | typ・M0.20dB | 97%M0.45dB | |
| multilemode | typ.M0.20dB | 97%^0.50dB | ||
| Return loss | sinqlemode | N50dB | ||
| OPTICAL CABLE | 05.0mm Duplex Jacket: LSZH G657A2 ColonBlack | ||||||
| ⑤ | THREAD | Color: Black | |||||
| ④ | FULLEXS BODY | Color: Black | |||||
| CONNECTOR | 02.0mm LC/PC Duplex CONN. Body Color:Blue/Beige Clip Color: Blue/Beige | ||||||
| ② | DUST CAP | Transparent | |||||
| ① | DUST CAP | Color: Black | |||||
| NO. | ITEM | DESCRIPTION | |||||
| PART NO.: G9985TT4B***-001 | ||||
| XM | ||||
| 2 | TITLE: FULLEXS/LC/PC-FULLEXS/LC/PC Duplex patchcord | |||
| 2 | ||||
| 2 | DRAWN BY | DRAWING NO. | G9985TT4B*«-001 | |
| 4 | CHECKED BY | DRAWING SIZE | A4 | |
| 2 | APPROVED BY | UNIT | mm | |
| QTY | SORTING NO. | PAGE | 1 OF 1 | |
