ODVA MPO Waterproof Protection Terminating Fiber Optic Cable IP68
Price:
Negotiable
MOQ:
10
Delivery Time:
7-10 day
Brand:
GaPho
Product Description

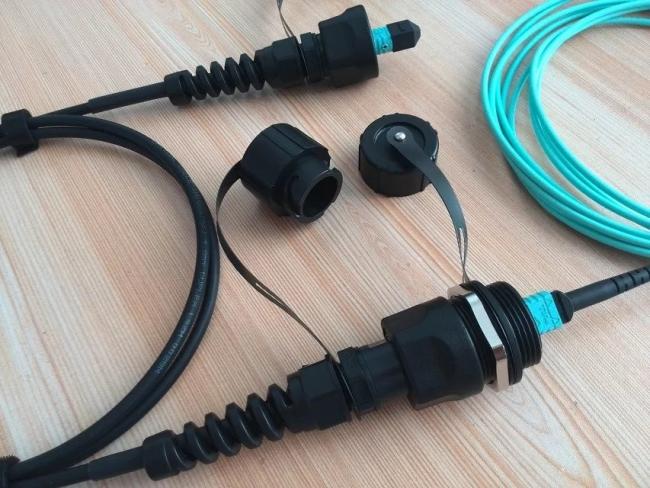

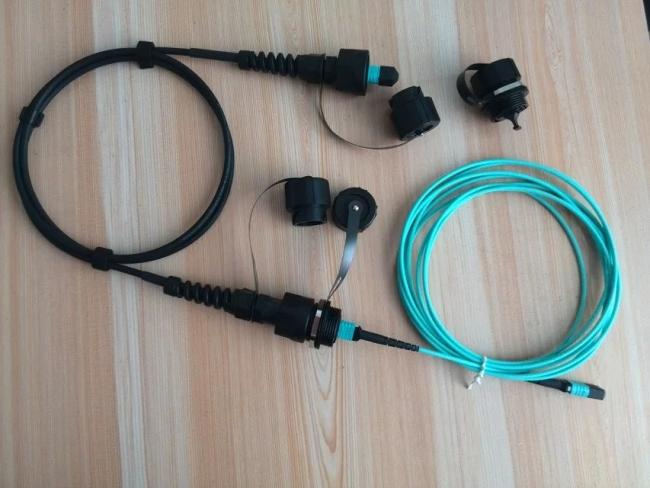

ODVA-MPO Waterproof Protection Caps Optical fiber Cable Connector
Notes:
1.Test wavelength:1310/1550NM;
IL<0.3dB;RL>55dB;
2.0perating temperture:-20℃~+80℃;
3.Storage temperture:-40℃~+80℃;
4. Connector :UL 94V-2;
5.IP68 rated when covered or fully mated with the appropriate mating connector;
6.Accept ø5.0mm~ø7.0mm outside diameter fiber optic cable;

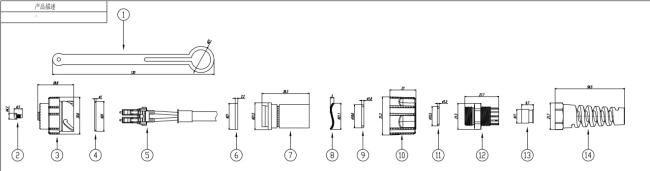

| Number | Name | Quantity | Material |
| 1 | Connecting belt | 1 | PA |
| 2 | rivet | 1 | SUS304 |
| 3 | Connector cover | 1 | PPO |
| 4 | Sealing ring | 1 | Silica gel |
| 5 | LC duplex parts | 1 | |
| 6 | Sealing ring | 1 | Silica gel |
| 7 | main body | 1 | PA |
| 8 | Corrugated spring | 1 | 65MN |
| 9 | Sealing ring | 1 | Silica gel |
| 10 | Connecting nut | 1 | PPO |
| 11 | Sealing ring | 1 | Silica gel |
| 12 | Card thread head | 1 | PA |
| 13 | Gland | 1 | Silica gel |
| 14 | Spring boot | 1 | PA |
