ODC-2/4 Fiber Optic Cable Waterproof Connector

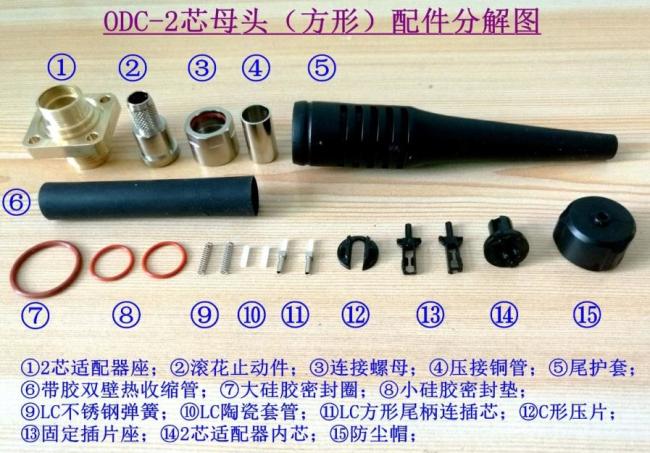

① 2-core adapter base; ② Knurled stopper; ③ Connecting nut; ④ Crimp copper pipe; ⑤ Tail sheath; 6. Double wall heat shrinkable tube with glue; 7. Large silicone sealing ring; 8. Small silicone gasket; 9. LC stainless steel spring; 10. LC ceramic sleeve; 11. LC square tail handle with plug-in core; 12. C-shaped tablet; 13. Fix the insert seat; 14. 2-core adapter inner core; 15. Dust cap;

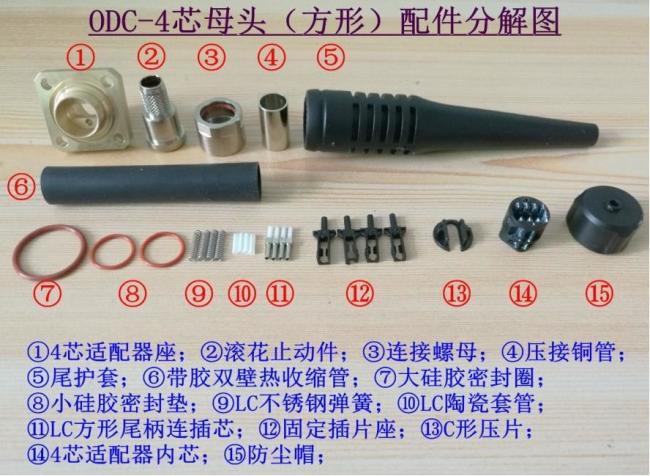

① 4-core adapter seat; ② Knurled stopper; ③ Connecting nut; ④ Crimp copper pipe; ⑤ Tail sheath; 6. Double wall heat shrinkable tube with glue; 7. Large silicone sealing ring; 8. Small silicone gasket; 9. LC stainless steel spring; 10. LC ceramic sleeve; 11. LC square tail handle with plug-in core; 12. Fix the insert seat; 13. C-shaped tablet; 14. Inner core of 4-core adapter; 15. Dust cap;
