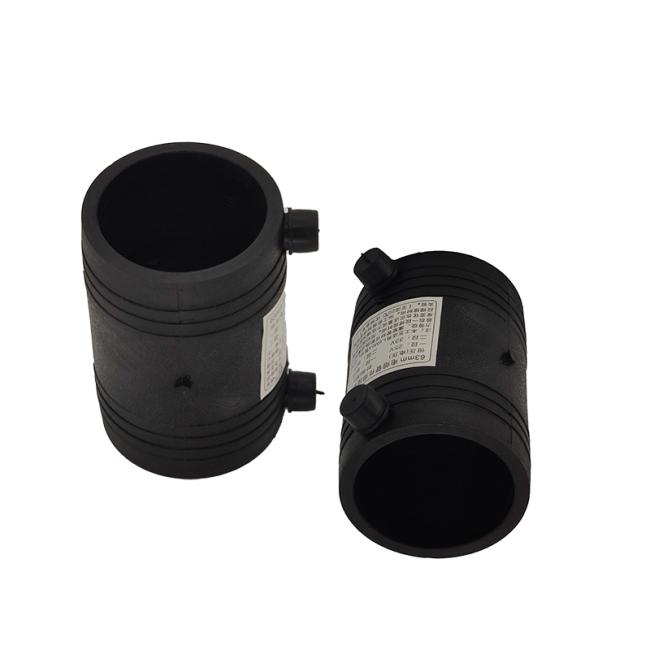

Hdpe Pipe Fittings Electrofusion Coupling Water Supply Pipe Accessories
HDPE Pipe Fittings Electrofusion Coupling Water Supply Pipe Accessories
----------------------------------------
Basic Info.
The steel mesh skeleton plastic composite pipe adopts high-quality materials and advanced production technology to make it have higher pressure resistance. At the same time, the composite pipe has excellent flexibility and is suitable for long-distance buried water supply and gas pipeline systems. The pipe fittings used in the steel mesh skeleton polyethylene composite pipe are polyethylene electric fusion pipe fittings. When connecting, the inner heating element of the pipe is used to melt the outer plastic of the pipe and the inner plastic of the pipe to reliably connect the pipe and the pipe.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
| Wall Thick Ness(mm) | ||||||
| 20 | 2.3 | 2.3 | ||||
| 25 | 3 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 |
61.2 |
||
Advantage
1. Strong resistance,tight interface, no leakage;
2. Excellent chemical stability, good flexibility;
3. Energy saving and cost reduction,convenient and fast construction connection;
4. Lightweight, easy to carry, easy to construct, and low overall project cost.
5. The inner wall is smooth, the friction is small, and the water flow capacity is strong;
6. Light weight, easy to install and lower transport and maintenance.
Details
Application
1. Municipal engineering: urban construction water supply, drinking water, fire water, heat network backwater, gas, natural gas transmission, highway buried drainage and other channels.
2. Oil field and gas field: oily sewage, gas field sewage, oil and gas mixture, secondary and tertiary oil recovery and gathering and transportation process pipes.
3. Chemical industry: acid, alkali, salt manufacturing, petroleum, chemical, fertilizer, pharmaceutical, textile, printing and dyeing, rubber and plastic industries to transport corrosive gas, liquid, solid powder process pipes and discharge pipes.
4. Power engineering: pipelines for process water, return water, water supply, fire fighting water, dust removal, waste residue, etc.
5. Metallurgical mines: used for transporting corrosive media and ore slurry, tailings, ventilation pipes and process pipes in non-ferrous metal smelting.
6. Seawater transportation: seawater transportation in desalination plants, seaside power plants, and seaport cities.
7. Shipbuilding: ship sewage pipes, drain pipes, ballast pipes, ventilation pipes, etc.
8. Agricultural sprinkler irrigation: deep well pipes, water filter pipes, culvert pipes, drainage pipes, irrigation pipes, etc.
Certificate
Company Profile
High Mountain Pipe has passed ISO 9001, ISO 14001, OHSAS 18001 management system certification and China environmental labeling product certification. The company is applying for CQC (China Quality) certification and CNAS (China National Accreditation Service for Conformity Assessment) national laboratory qualification accreditation. Efficiently treating our customers as partners with sincerity, specialization and satisfaction is our managerial principle.
Long-term stock products: FRPP pipes, HDPE pipes, PP pipes, PPH pipes, PP boards, PE boards, UHMWPE boards and all pipe fittings.Pipes and plates with special quality requirements and colors, large quantities can be customized according to customer requirements and colors.
FAQ
Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.
Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.
Q: What are raw materials?
A: PE.
