SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ
4 cavities automatic plastic pet bottle blowing making machine plant
| What is the details of automatic plastic pet bottle blowing making machine plant? |

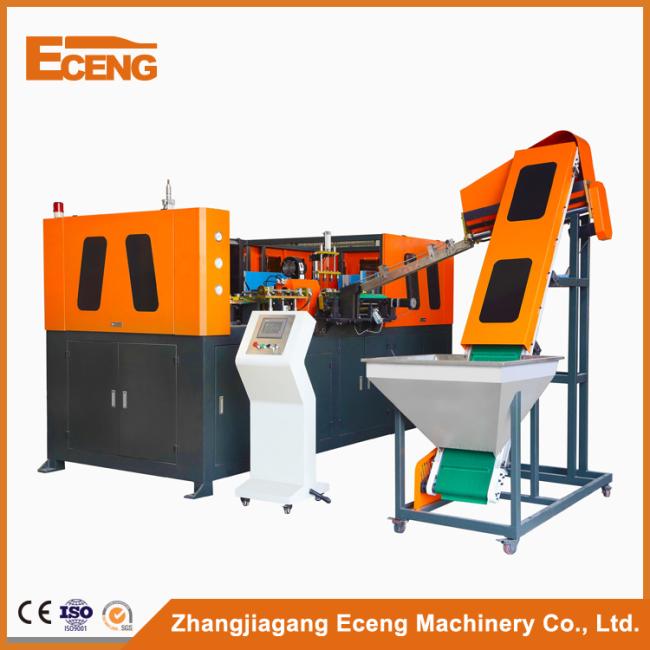

Poduct photos
| What is technical parameter of our automatic plastic pet bottle blowing making machine plant? |
|
Bottle type specification
|
cavity |
4 |
|
theory output (PCS/HR) |
4000-5000 |
|
|
Max. volume (L) |
2L |
|
|
Bottle mouth maximum overall diameter (mm) |
28-38mm |
|
|
Bottle biggest diameter |
100mm |
|
|
Bottle maximum height |
330mm |
|
|
Power specifications
|
Light tube quantity |
32pcs |
|
Light tube power |
1.25kw |
|
|
Maximum heating power |
40kw |
|
|
All electric machine installation |
43kw |
|
|
Actual consumption |
21.5kw |
|
|
Air pressure specification
|
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600Ltr/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
3000 Ltr/min |
|
|
Frozen water specification
|
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10°C |
|
|
Consumption |
8000kcal/hr |
|
|
Frozen water flow |
88Ltr/min |
|
|
Machine specification
|
Size of the machine |
4.5x1.6x1.9 (m) |
|
Weight of the machine |
3.5ton |
| What is the feature for our automatic plastic pet bottle blowing making machine plant? |
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
| What is the parts of our automatic plastic pet bottle blowing making machine plant? |
|
Name |
Brand |
Original |
|
Blowing cylinder |
FESTO |
Germany |
|
Mould closing and opening cylinder |
FESTO |
Germany |
|
valve |
FESTO |
Germany |
|

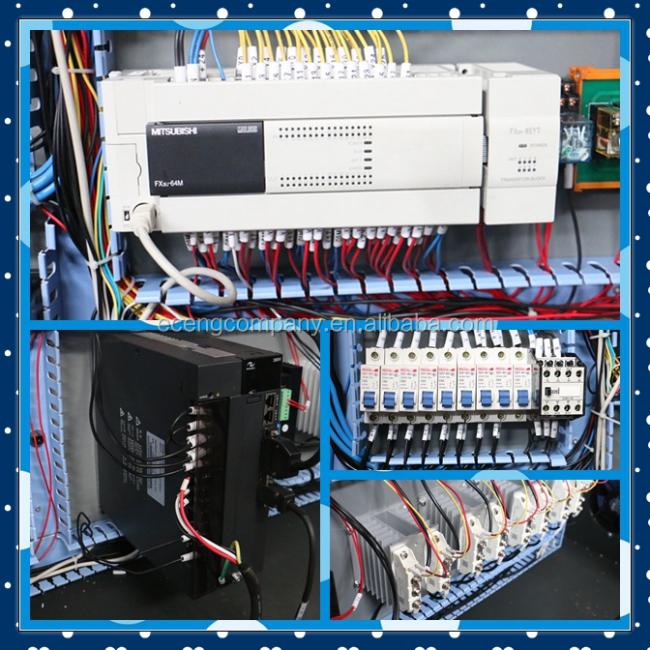

PLC |
MITSUBISHI |
Japan |
|
HMI SCRENN |
WINVIEW 506L |
Taiwan |
|
Switch |
OMRON |
Japan |
 |

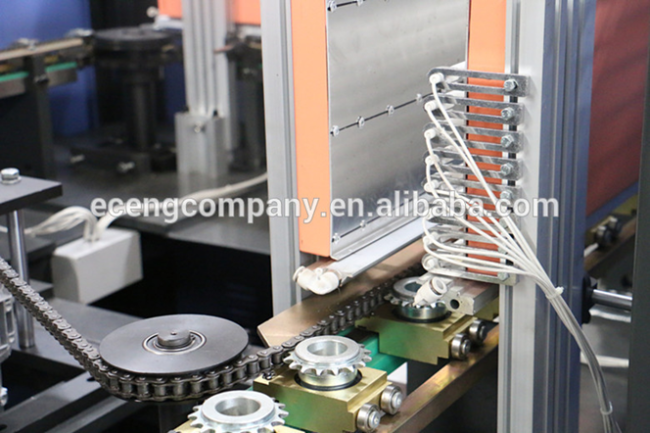

1. Small performs distance heating system Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption. |
|
2.Modularized design conception Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts. |
 |
 |

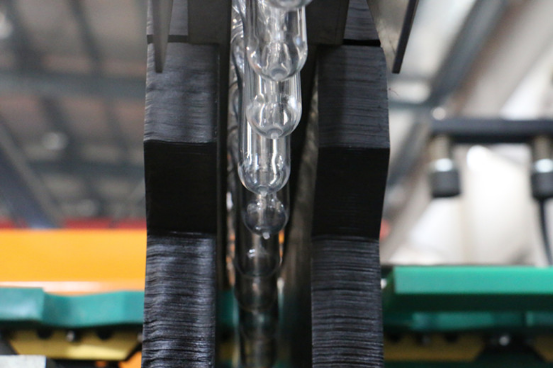

3.Efficient and soft perform inlet system
By rotary and soft preform inlet system, the speed of preform feeding is ensured meanwhile, the preform neck is well protected. |
|
4.Servo driving and cam linking blowing section: The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity. |
 |
