1. Extruder: 1 set

(1) Screw dia.: 85mm; Rotation speed: 0～80rpm,

(2) L:D: 30:1; Material of screw: 38CrMoALA;

(3) Pressure feedback system can adjust the screw speed automatically.

(4) Melt filter: Melt filter changer with candles

(5) Spinneret device: 1 set

(6) Metering pump: 1 set

(7) Heater: Electric heating ring to make sure the temperature evenly.

2. Quenching Tank:1 set

(1) The tank is made by Stainless Steel 304.

3. First Seven roller Stretching unit,

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

4. Hot water Tank:1 set

(1) Heating power: 70KW; Electrical heating, copper heating pipe

(2) Material is stainless steel 304 with heat preservation.

5. Second seven rollers stretching unit

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

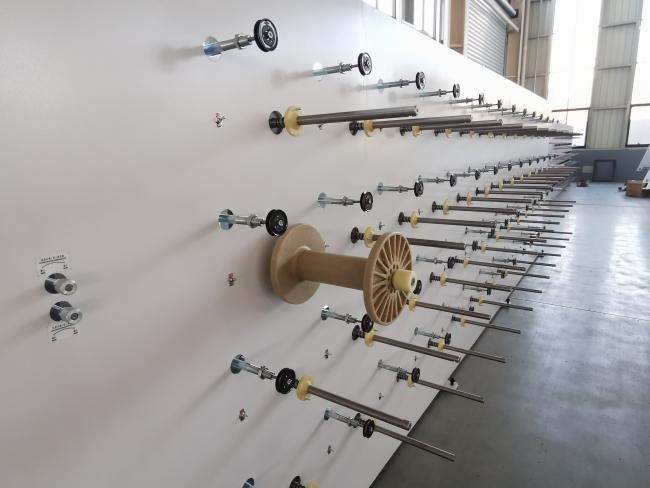

6. Spindle winder

(1) Winding bobbin as per clinet's reqeust.

(2) Tesnion control by inverter.
