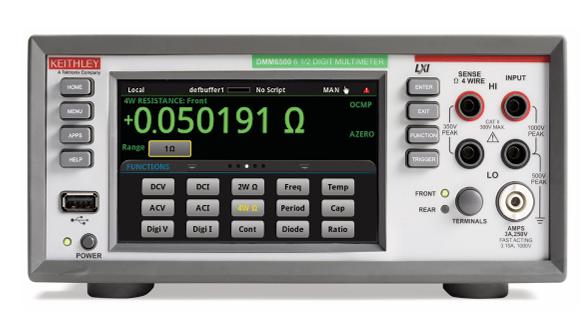

Keithley DMM6500 6.5 Digit Multimeter with Graphical Touchscreen

• 15 measurement functions including capacitance,

temperature, and digitizing

• Expanded measurement ranges include

10 μA to 10 A and 1 Ω to 100 MΩ

• Large 5-inch (12.7 cm) multi-touch capacitive

touchscreen with graphical display

• Large internal memory; store up to 7 million readings

• Multiple language modes: SCPI, TSP® scripting,

Keithley 2000 SCPI emulation, Keysight 34401A

SCPI emulation

• Two-year specifications allow for longer

calibration cycles

• Standard USB-TMC and LXI/Ethernet

communication interfaces

• Optional user-installable communication interfaces

including: GPIB, TSP-Link®, and RS-232

• Capture voltage or current transients with

1 MS/sec digitizer

• USB host port for storing readings, instrument

configurations, and screen images
