Ceramic Automotive Energy Storage System Fuse AC690V / DC750V

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 5-8 days

Brand: Dissmann

Product Description

Dissmann® Energy Storage System Fuse High Voltage MEV Fuse Supplier in China

MEV-P-C10-400 Automotive Fuses rated voltage AC690V DC750V,Rated Current 400A, the structure and performance shall comply with GB13539, IEC60269 and UL248.

MEV-P-C10 series Automotive Fuses rated voltage AC690V DC750V,Rated Current 10A- 400A, these MEV Fuses are square tubular bolt mounted fuses with small volume and high breaking capacity. It is applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, and is suitable for road vehicle industry applications.

Specifications of the MEV-P-C10 series Energy Storage Fuse:

1.Shape and mounting dimensions of the MEV fuse:

2.MEV-P-C10 fuse model classification according to rated current :

Model	Product code	Rated current(A)	I²t(A²Sec)		Power consumption(W)
Model	Product code	Rated current(A)	弧前	总	Power consumption(W)
MEV-P-C10	MEV-P-C10-16	16	7.2	48	5.5
	MEV-P-C10-20	20	11.5	78	7
	MEV-P-C10-25	25	19	130	9
	MEV-P-C10-32	32	40	270	10
	MEV-P-C10-40	40	69	460	12
	MEV-P-C10-50	50	115	770	15
	MEV-P-C10-63	63	215	1450	16
	MEV-P-C10-80	80	380	2550	19
	MEV-P-C10-100	100	695	4650	24
	MEV-P-C10-125	125	1200	8500	28
	MEV-P-C10-160	160	2300	16000	32
	MEV-P-C10-200	200	4200	28000	37
	MEV-P-C10-250	250	7750	51500	42
	MEV-P-C10-315	315	12000	80500	52
	MEV-P-C10-350	350	14500	98500	58
	MEV-P-C10-400	400	19500	133000	67

How to choose a right model of the energy storage fuse:

You can choose the right square ceramic MEV Fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized MEV fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.

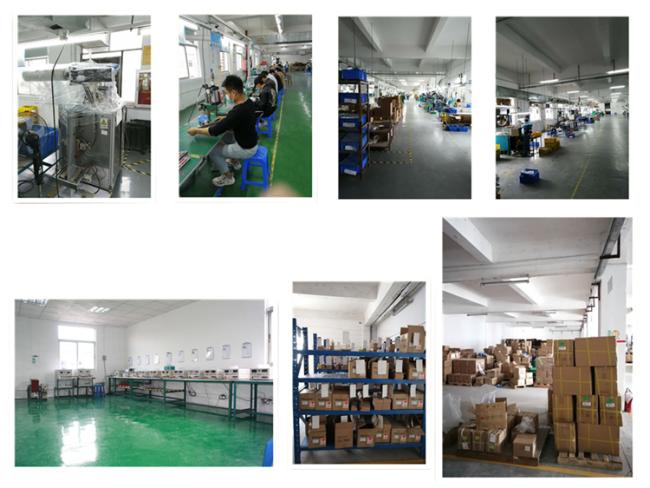

Advantage of our factory as the MEV Fuse Supplier:

1.Focus on the production and development of fuse products for 20 years:
Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.
