Low Voltage Flat Plug Time Lag Fuse UL Certified AC250V 100A
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8 days
Brand:
Dissmann
Product Description
Dissmann® UL Certified AC250V 100A Low Voltage Flat plug Fuse Made in China
Specifications of the DNN-P series Flat Plug Fuse:
1. Dimension of the fuse:

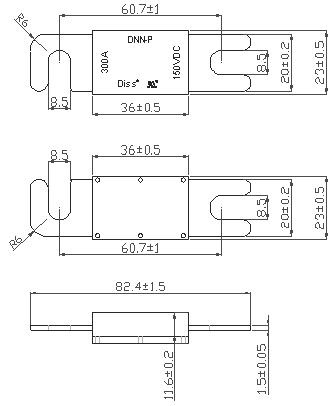

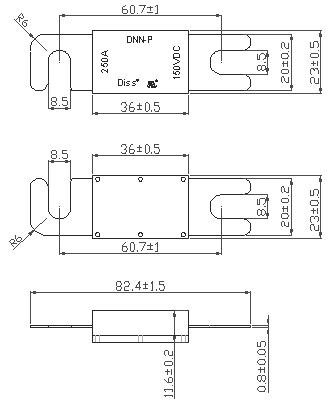

Rated Current≤275A Rated Current ≥300A
2. Performance critiria of the DNN-P series flat plug fuse :
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(≤200A) | 0 | 100 |
| 200%(＞200A) | 0 | 300 |
| 250%(≤200A) | 0 | 60 |
| 250%(＞200A) | 0.8 | 120 |
| 600% | 0.02 | 10 |
3.Manufacturing materials of the flat plug fuse:
|
Component name |
Material |
|
Contact the foot |
copper alloy |
|
Noumenon |
Ceramics |
4.Product type:
|
Model |
Product code |
Rated current A |
Voltage drop mV |
Installation requirement |
| DNN-P | DNN-P-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-P-40 | 40 | 125 | ||
| DNN-P-50 | 50 | 120 | ||
| DNN-P-60 | 60 | 116 | ||
| DNN-P-80 | 80 | 112 | ||
| DNN-P-100 | 100 | 110 | ||
| DNN-P-125 | 125 | 105 | ||
| DNN-P-130 | 130 | 100 | ||
| DNN-P-150 | 150 | 96 | ||
| DNN-P-175 | 175 | 90 | ||
| DNN-P-200 | 200 | 86 | ||
| DNN-P-225 | 225 | 83 | ||
| DNN-P-250 | 250 | 80 | ||
| DNN-P-275 | 275 | 77 | ||
| DNN-P-300 | 300 | 75 | ||
| DNN-P-325 | 325 | 83 | ||
| DNN-P-350 | 350 | 81 | ||
| DNN-P-400 | 400 | 80 | ||
| DNN-P-425 | 425 | 78 | ||
| DNN-P-450 | 450 | 78 | ||
| DNN-P-500 | 500 | 76 |

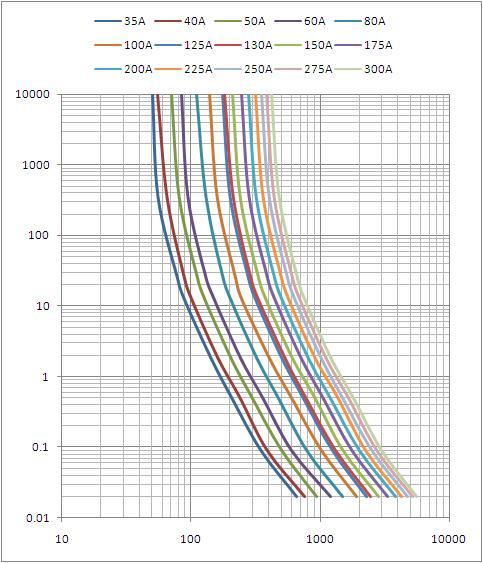

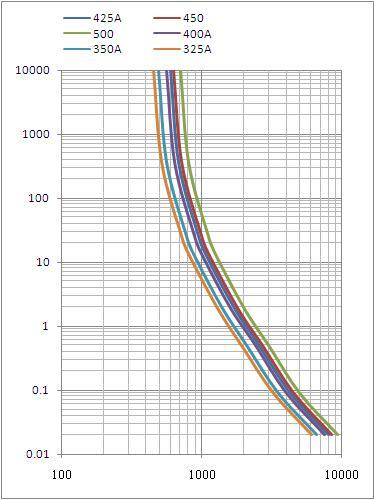

5.Current characteristic curve of the flat plug fuse

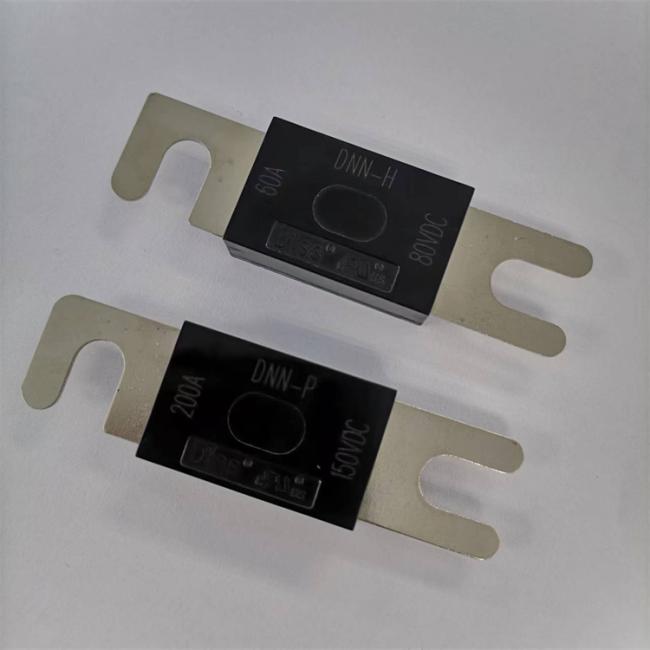

5.Dissmann® Flat plug fuse, include mini size,medium size,large size:
6.Other Fuses and fuse holders in our Factory:
7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.
8.Dissmann® fuse Factory Display:
Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
