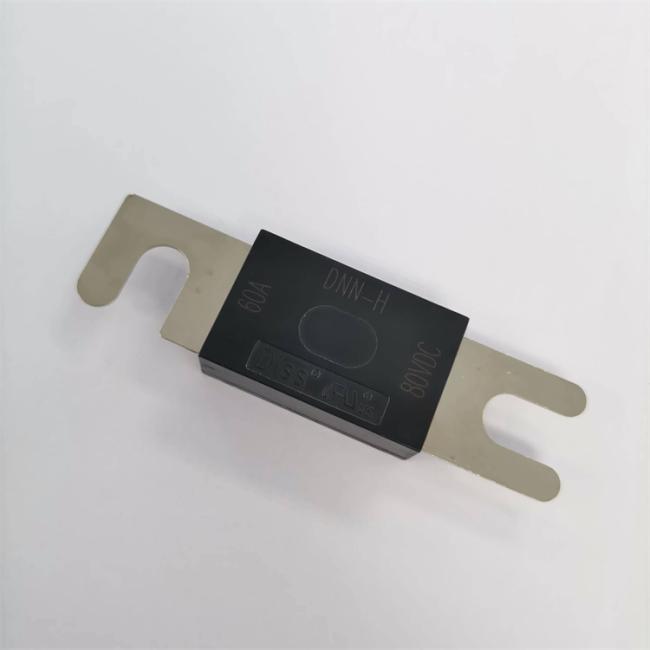

Dissmann®Blade Type Fuse DC150V Flat Plug Fuse for Battery Storage System
DNN-P series blade type fuse
- Flat plug type automobile fuse (bolt type installation), with dimensions and performance conforming to UL248
- Rated voltage: 150VDC/250VAC, rated current: 35A~500A, breaking capacity: DC3000A
- Conform to EU and China RoHS directives
- The executive standard is UL248, UL certification number: E496,054
- This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. Applicable to low-speed electric vehicles, motors and charging modules.

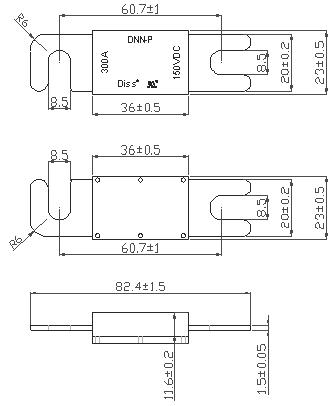

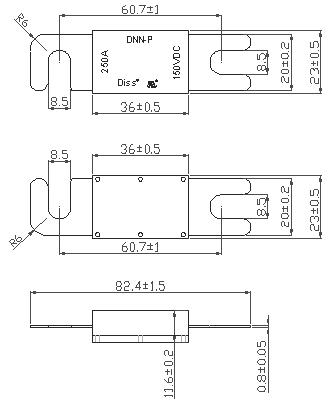

1.Dimension of the blade type fuse:
2.Materials of the blade type fuse
|
Component name |
Material |
|
Contact the foot |
Copper alloy |
|
Noumenon |
Electric wood shell |
3.Performance of the blade type fuse
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(≤200A) | 0 | 100 |
| 200%(＞200A) | 0 | 300 |
| 250%(≤200A) | 0 | 60 |
| 250%(＞200A) | 0.8 | 120 |
| 600% | 0.02 | 10 |

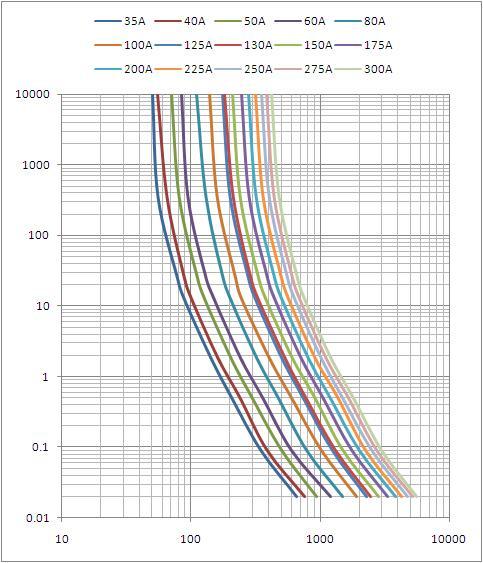

4.Current characteristic curve of the blade type fuse
5.The DNN-P series DC150V blade type fuse model
|
Model |
Product code |
Rated current A |
Voltage drop mV |
Installation requirement |
| DNN-H | DNN-P-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-P-40 | 40 | 125 | ||
| DNN-P-50 | 50 | 120 | ||
| DNN-P-60 | 60 | 116 | ||
| DNN-P-80 | 80 | 112 | ||
| DNN-P-100 | 100 | 110 | ||
| DNN-P-125 | 125 | 105 | ||
| DNN-P-130 | 130 | 100 | ||
| DNN-P-150 | 150 | 96 | ||
| DNN-P-175 | 175 | 90 | ||
| DNN-P-200 | 200 | 86 | ||
| DNN-P-225 | 225 | 83 | ||
| DNN-P-250 | 250 | 80 | ||
| DNN-P-275 | 275 | 77 | ||
| DNN-P-300 | 300 | 75 | ||
| DNN-P-325 | 325 | 83 | ||
| DNN-P-350 | 350 | 81 | ||
| DNN-P-400 | 400 | 80 | ||
| DNN-P-425 | 425 | 78 | ||
| DNN-P-450 | 450 | 78 | ||
| DNN-P-500 | 500 | 76 |
When the Rated current ≥300A,the contact foot will be thicker,please check the follow dimensions:
We can supply you different size of blade type fuses:
a.DNN-A/X/H/P series fuse,L size,the rated voltage include:DC32V/58V/80V/150V AC125V/250V
b.DNN-C/D/E series fuse,M size,the rated voltage include:DC32V/58V/80V
c.DNQ-A/X/H series fuse,S size,the rated voltage include:DC32V/58V/80V

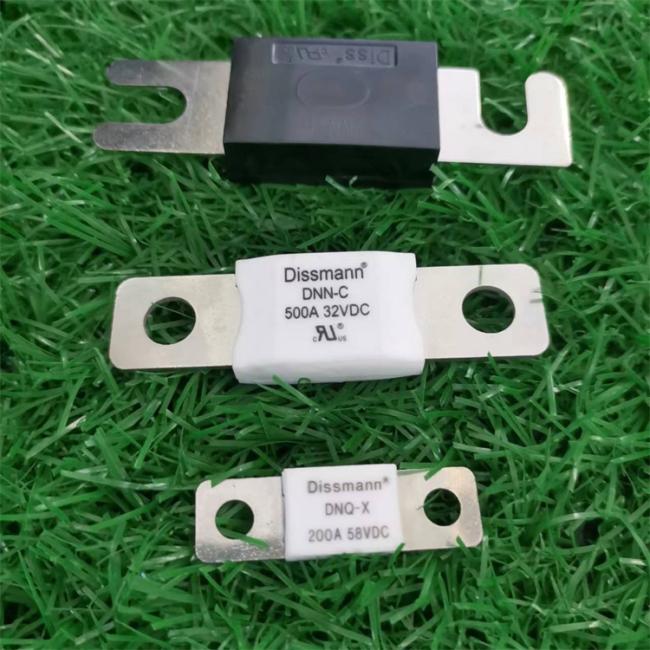

More other fuses produced by our factory:
Certifications we can supply for the fuse products:
Our factory located in Shenzhen China:
