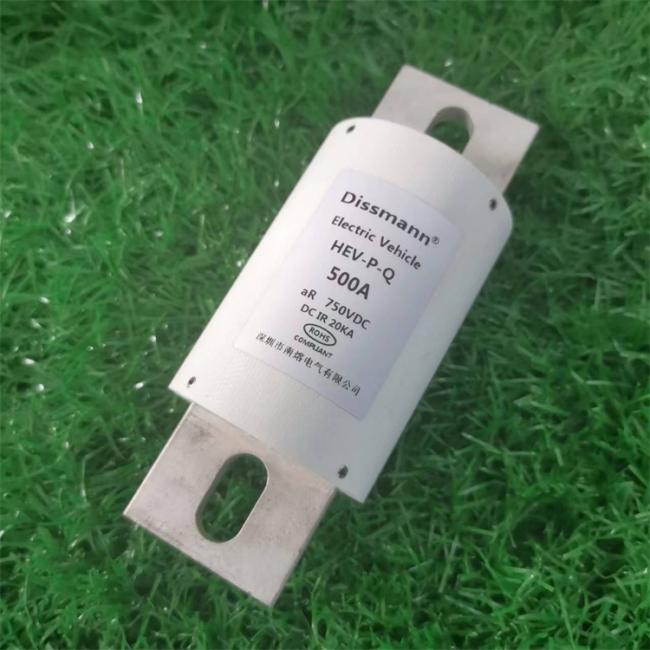

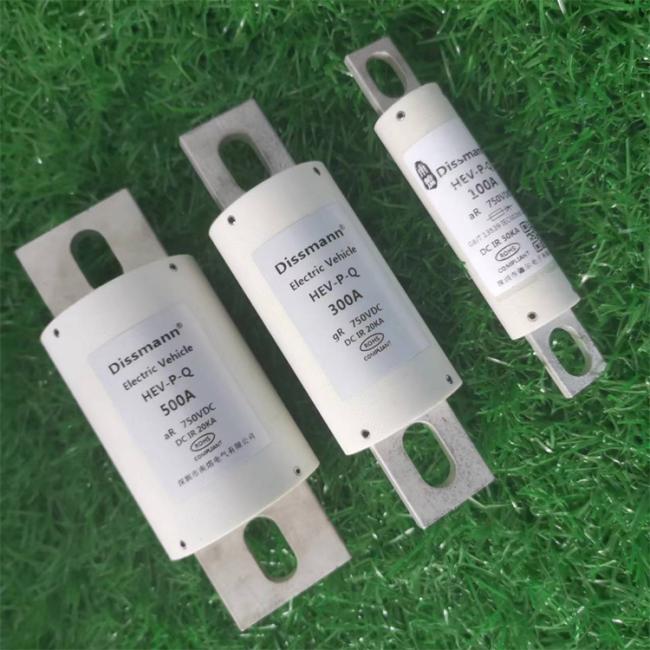

750VOLT Standard Blade Car Fuses
Product basic information of the HEV series fuse
- Bolt connection type quick fuse, the size and performance comply with GB13539, IEC60269, UL248
- Rated voltage: DC750V or less
- Rated current: 5~800A
- Protection category: aR,
- Breaking capacity: AC100KA, DC 50kA (time constant ≤ 15ms)
- Conforming to European Union and China RoHS directives, this series of products are round tube bolt type fuses with small volume, fast fusing, low I2t, high reliability and other characteristics. It is suitable for short circuit and backup protection of frequency converter, rectifier, inverter, various power supply and other semiconductor equipment, as well as power battery, motor, capacitor, wire and other equipment and devices. This product has good vibration resistance and flame retardancy, and is suitable for rail transit, motor vehicles and other vibration environment applications.
- Short circuit protection fuse especially suitable for pure electric vehicles and hybrid electric vehicles
- 750V DC fuse specially designed for power battery of pure electric vehicle and hybrid electric vehicle
- Provide specially customized fuse base for harsh automotive environment
Dimension of the Blade Car fuse:
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HT1 | 73.5 | 14.3 | 48 | 60.5 | 63.5 | 6.5 | 10.3 | 1.6 | 8 |
| HT2 | 110 | 22 | 69 | 84 | 95.5 | 9 | 15 | 3.3 | 14.75 |
| HT3 | 129 | 36.5 | 72 | 88 | 109 | 10.5 | 25 | 6 | 20.7 |
| HT4 | 129 | 50 | 72 | 88.6 | 109 | 10.5 | 38 | 6 | 20.7 |
| HT5 | 180 | 63 | 72 | 106 | 145 | 13.5 | 50 | 10 | 33 |
Current characteristic curve of the Blade Car fuse
The HEV-P-Q series DC750V Charhing file fuse model
|
Model
|
Rated Current A
|
I2t(A2s) |
Power dissipation W |
Size code |
Install |
|
| pre-arc | total | |||||
| HEV-P-Q-5 | 5A | 1.6 | 10 | 1.5 | HT1 |
Mounting Bolt M6 recommended torque 4N·m |
| HEV-P-Q-10 | 10A | 3.5 | 19 | 3.8 | ||
| HEV-P-Q-15 | 15A | 9.5 | 73 | 5.4 | ||
| HEV-P-Q-20 | 20A | 25.5 | 176 | 6.0 | ||
| HEV-P-Q-25 | 25A | 42 | 330 | 7.0 | ||
| HEV-P-Q-30 | 30A | 55 | 420 | 9.0 | ||
| HEV-P-Q-35 | 35A | 33 | 160 | 11.0 |
HT2 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-P-Q-40 | 40A | 75 | 315 | 12.0 | ||
| HEV-P-Q-45 | 45A | 95 | 430 | 12.0 | ||
| HEV-P-Q-50 | 50A | 135 | 590 | 12.5 | ||
| HEV-P-Q-60 | 60A | 205 | 940 | 14.8 | ||
| HEV-P-Q-70 | 70A | 300 | 1980 | 17.5 | ||
| HEV-P-Q-80 | 80A | 350 | 2350 | 20.5 | ||
| HEV-P-Q-90 | 90A | 410 | 2630 | 24.0 | ||
| HEV-P-Q-100 | 100A | 530 | 3450 | 26.5 | ||
| HEV-P-Q-125 | 125A | 1700 | 7200 | 27 |
HT3 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-P-Q-150 | 150A | 2750 | 11000 | 34 | ||
| HEV-P-Q-175 | 175A | 4100 | 16000 | 35 | ||
| HEV-P-Q-200 | 200A | 5400 | 21000 | 42 | ||
| HEV-P-Q-225 | 225A | 7500 | 30000 | 45 | ||
| HEV-P-Q-250 | 250A | 9700 | 41000 | 47 | ||
| HEV-P-Q-275 | 275A | 12000 | 58000 | 51 | ||
| HEV-P-Q-M300 | 300A | 16500 | 70000 | 56 |
HT4
|
|
| HEV-P-Q-M325 | 325A | 20000 | 82000 | 61 | ||
| HEV-P-Q-M350 | 350A | 23000 | 94000 | 63 | ||
| HEV-P-Q-M400 | 400A | 30000 | 123000 | 76 | ||
| HEV-P-Q-300 | 300A | 16500 | 70000 | 56 | ||
| HEV-P-Q-325 | 325A | 20000 | 82000 | 61 | ||
| HEV-P-Q-350 | 350A | 23000 | 94000 | 63 | ||
| HEV-P-Q-400 | 400A | 30000 | 123000 | 76 | ||
| HEV-P-Q-450 | 450A | 35000 | 135000 | 95 | ||
| HEV-P-Q-500 | 500A | 44000 | 165000 | 108 | ||
| HEV-P-Q-600 | 600A | 48000 | 210000 | 115 |
HT5 |
Mounting Bolt M12 recommended torque 28N·m |
| HEV-P-Q-700 | 700A | 53000 | 298000 | 125 | ||
| HEV-P-Q-800 | 800A | 75000 | 445000 | 140 | ||
