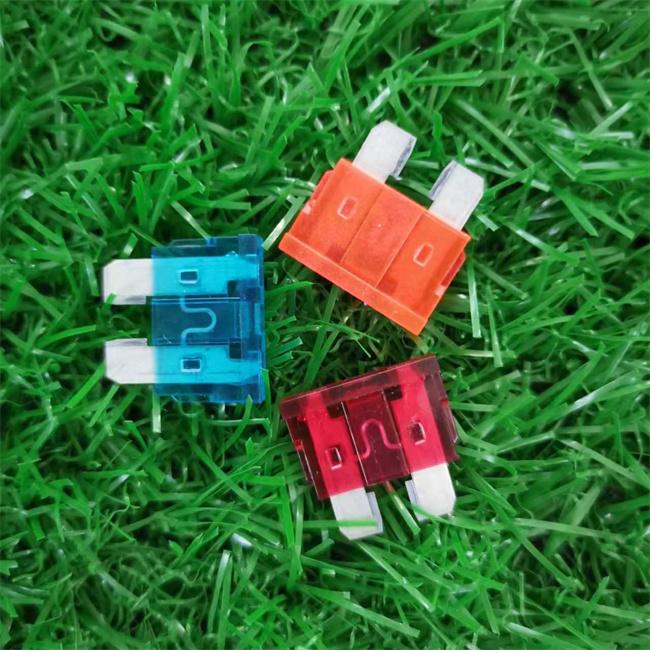

Low Voltage Electric Vehicle Fuse DC32V Different Size UL Certified
Dissmann® Low Voltage Electric Vehicle Fuse DC32V Automotive Blade Fuse in Different Size UL Certified
DC32V Medium size Automotive Blade Fuse
Different size Automotive blade fuse
Basic information of the FLAT PLUG fuse:
- Type:Plug-in automotive blade fuse
- Dimensions and performance conforming to UL248
- Rated voltage: DC32V
- Rated current: 1A-40A(M size)
- Breaking capacity: DC1000A
- Conform to EU and China RoHS directives
- The executive standard is UL248, UL certification number: E343461
- This series of products are automobile blade fuses, which have the characteristics of small size, low power consumption and . It is applicable to low-speed electric vehicles, motors and charging modules.
Physics drawing of the dimension:
1.DC32V medium size fast blow automotive blade fuse:
DFN-A series fuse(1A-40A)
2.DC32V Small size fast blow automotive blade fuse:
DKN-A series fuse(2A-30A)
Ordinary produc type you can choose from our factory:
1.DC32V medium size fast blow automotive blade fuse:
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
2.DC32V Small size fast blow automotive blade fuse:
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DKN-A | DKN-A-2 | 2 | 2.8 | 170 | (Gray) |
| DKN-A-3 | 3 | 9.3 | 152 | (Violet) | |
| DKN-A-4 | 4 | 17 | 120 | (Pink) | |
| DKN-A-5 | 5 | 24 | 128 | (Tan) | |
| DKN-A-7.5 | 7.5 | 66 | 135 | (Brown) | |
| DKN-A-10 | 10 | 92 | 108 | (Red) | |
| DKN-A-15 | 15 | 270 | 98 | (Blue) | |
| DKN-A-20 | 20 | 380 | 96 | (Yellow) | |
| DKN-A-25 | 25 | 620 | 85 | (Clear) | |
| DKN-A-30 | 30 | 1120 | 86 | (Green) |
More other fuses and fuse holder you can choose from our factory:
Products list:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
