Industrial Power 250 Amp Hrc Fuse For Energy Storage System
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8days
Brand:
Dissmann
Product Description
750volt DC Fuse European Square Fuse Industrial Power Fuse Smiconductor Fuse
Material:
Noumenon: Ceramics
Pins: Zinc Alloy
Features:
Smiconductor Fuse
Many kinds of Smiconductor fuse.
Current rating: 250A.
Voltage rating: 750VDC
Product Presentation:
|
Rated Voltage
|
DC750V,AC690V or lower |
Type Protection
|
aR |
| Rated Current | 250A-500A |
Breaking Capacity
|
DC10KA (time constant≤10ms) |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, EU and Rosh Directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
| Model | Product code | Rated current | I²t(A²Sec) | Power consumption | |
| Pre-arc | Total | ||||
| MEV-P-D20 | MEV-P-D20-250 | 250 | 6250 | 42000 | 45 |
| MEV-P-D20-315 | 315 | 10000 | 68500 | 55 | |
| MEV-P-D30 | MEV-P-D30-250 | 250 | 6250 | 42000 | 45 |
| MEV-P-D30-315 | 315 | 10000 | 68500 | 55 | |

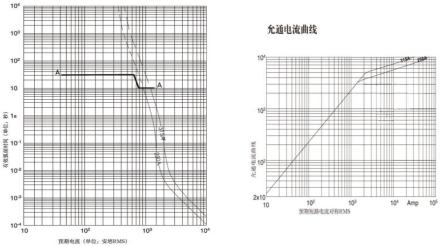

Current characteristic curve MEV-P-D20(10A～200A)/ MEV-P-D30(10A～200A)

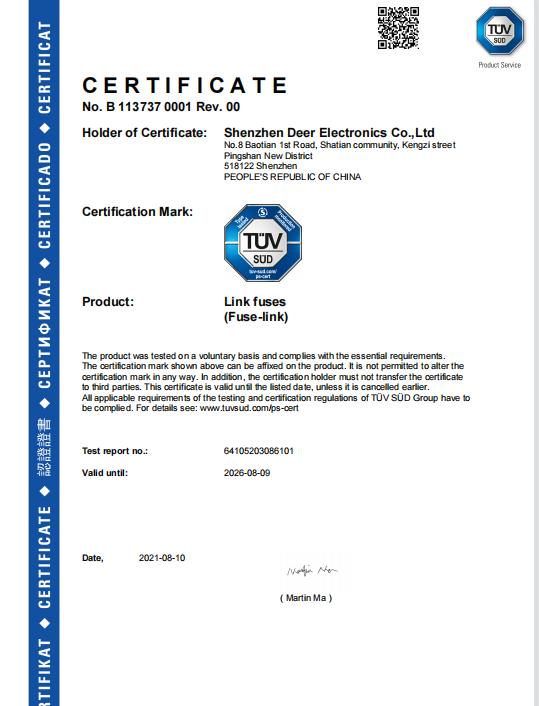

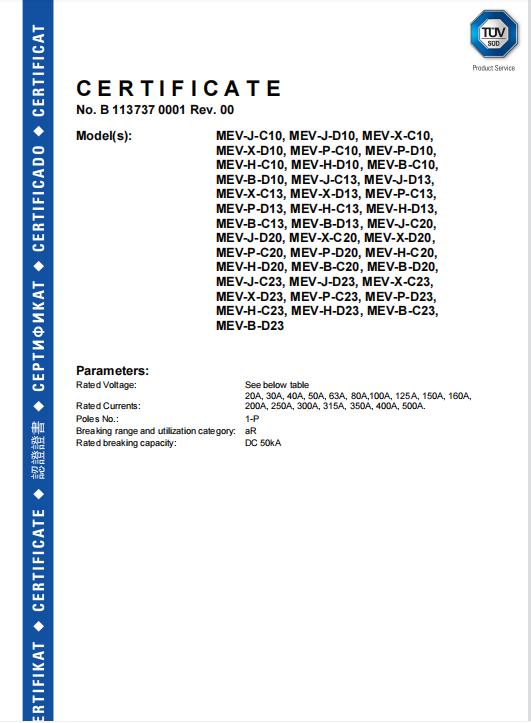

TUV Cretificate
Test equipment
Production equipment
Our Certificates
