High Current Energy Storage System Fuse Fiber Pipe For Semiconductor Protection
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8days
Brand:
Dissmann
Product Description
Automotive passenger fuse high current fuse high perfomance fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Features:
Energy storage fuse
Many kinds of Energy storage fuse
Current rating: 1800A.
Voltage rating: 2000VDC
Breaking capacity:DC250KA
Product Presentation:
|
Rated Voltage 额定电压 |
DC1500V或低于 |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 630A-1800A |
Breaking Capacity 分断能力 |
DC250KA (时间常数4ms) |
|
Meet the Requirement 符合要求 |
UL248-13,IEC60269.4 欧盟和RoHS 指令 |
Remarks 备注 |

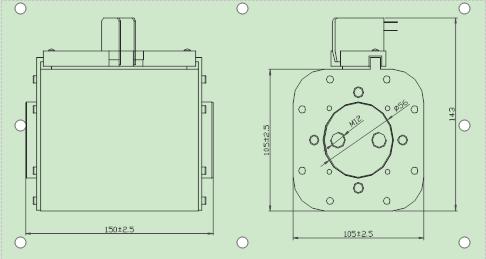

产品外形尺寸(mm)/Overall dimensions of the product(mm)

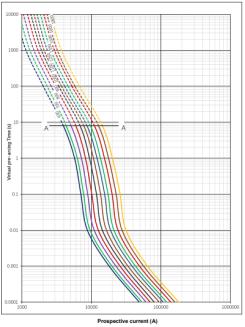

电流特性曲线图/
Currentcharacteristiccurve
产品型号/Product type
|
Model 型号 |
Rated Current 额定电流A |
I2t(A2s) |
Power dissipation 功耗W |
|
| 弧前 | 总 | |||
| MCH2-4-2-630A | 630 | 169,000 1,098,000 | 1,098,000 1,098,000 | 183 |
| MCH2-4-2-700A | 700 | 200,000 1,434,000 192 | 1,434,000 | 192 |
| MCH2-4-2-800A | 800 | 320,000 | 2,081,000 | 202 |
| MCH2-4-2-900A | 900 | 467,000 | 3,035,000 | 212 |
| MCH2-4-2-1000A | 1000 | 658,000 | 4,280,000 | 233 |
| MCH2-4-2-1100A | 1100 | 804,000 | 5,228,000 | 241 |
| MCH2-4-2-1250A | 1250 | 1,140,000 | 7,410,000 | 262 |
| MCH2-4-2-1350A | 1350 | 1,430,000 | 9,290,000 | 273 |
| MCH2-4-2-1500A | 1500 | 1,870,000 | 12,140,000 | 286 |
| MCH2-4-2-1600A | 1600 | 2,450,000 | 15,910,000 | 284 |
| MCH2-4-2-1800A | 1800 | 3,170,000 | 20,570,000 | 315 |
Test equipment
Production equipment
Our Certificates
Hot Tags: mev-500v semiconductor protection fuse, China, manufacturers, suppliers, factory, car Auto Fuse for electric vehicles EV, Micro type super mini car fuse, PV Fuses Surge Protection, Different Types of Automotive Fuses, Electrical Fuse UL, Fusible Cutout and Circuit Breakers, NH Fuse Industry Distribution, European Square Body Fuse 2000VDC
