DC1500A 5G Communication Module Fuses , 58VDC Mini Bolt Down Fuse
Mini Bolt Down Fuse Low Voltage Fuse Automotive Fuse 5G Communication Fuses
Material:
Noumenon: electric wood shell
Pins: Alloy
Features:
Mini Bolt Down Fuse
Many kinds of Mini Bolt Down Fuse
Current rating:200A
Voltage rating: 58VDC
Breaking capacity:DC1500A
Product Presentation:
|
Rated Voltage |
32VDC/58VDC/80VDC |
Type Protection |
Time-lag |
| Rated Current | 5A-200A |
Breaking Capacity |
DC1500A |
|
Meet the Requirement |
UL248-20,ISO8820,JASO-D622, EU and RoHS Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Manufacturing material
|
Component name |
Material |
|
Contact the foot |
Kirsite Copper alloy |
|
Noumenon |
Ceramics |
Product type
|
Model |
Rated current |
Rated voltage |
Rated voltage |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |

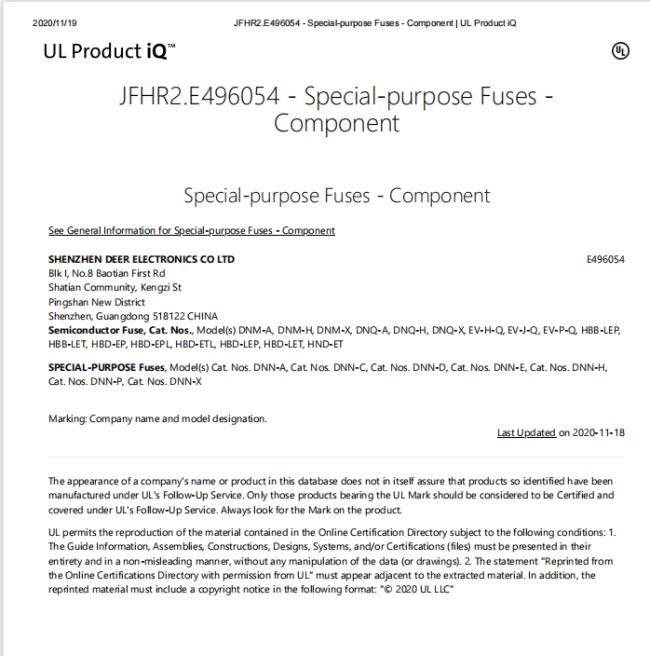

UL Certificate
