1000VDC High Voltage Ceramic Fuse Low Current ISO8820 Standard
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8days
Brand:
Dissmann
Product Description
Low Current Fuse High Voltage Fuse PV Fuse EV Fuse High Voltage Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage
|
DC/AC1000V
|
Type Protection
|
aR |
| Rated Current | 350A-500A |
Breaking Capacity
|
DC50KA (time constant≤10ms) |
|
Meet the Requirement
|
UL248-13,ISO8820,JASO-D622,IEC60269 EU and Rosh Directive |
Remarks
|
TUV |

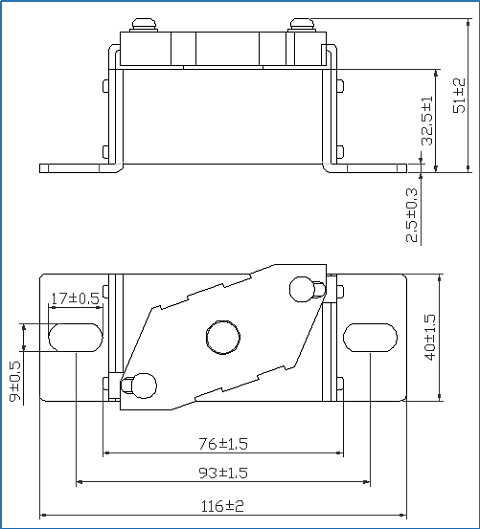

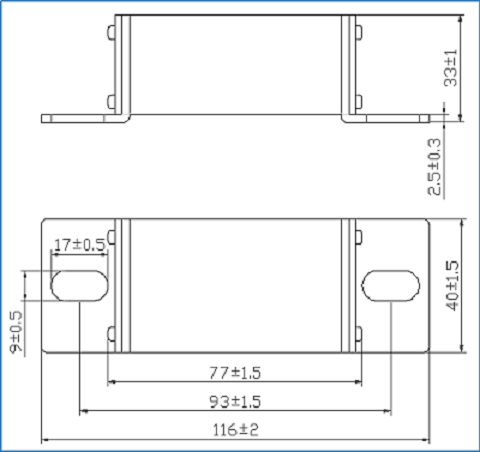

Overall dimensions of the product(mm)
MEV-J-D20
MEV-J-D23(Optional micro switch)
Product type of Ceramic Fuse
| Model | Product code | Rated current | I²t(A²Sec) | Power consumption | |
| Pre-arc | Total | ||||
| MEV-J-D20/MEV-J-D23 | MEV-J-D20-350 | 350 | 10900 | 73000 | 50 |
| MEV-J-D20-400 | 400 | 10900 | 73000 | 50 | |
| MEV-J-D20-500 | 500 | 19500 | 133000 | 67 | |
Certification
Test equipment
Production equipment

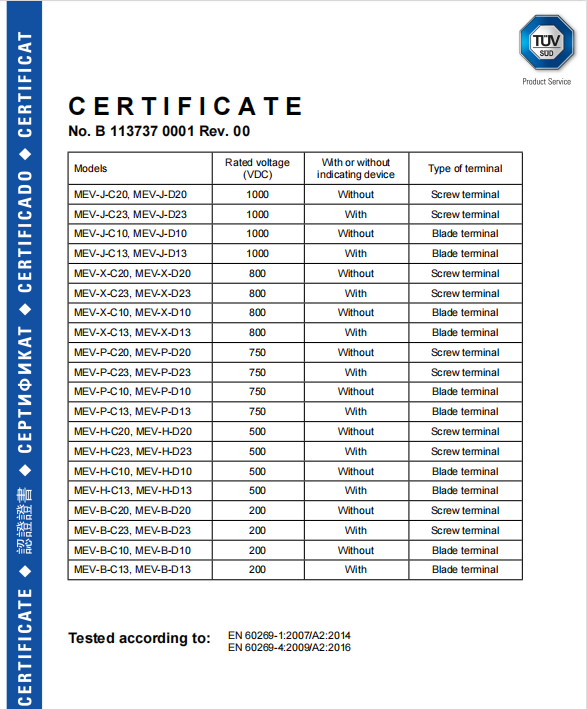

Our Certificates
Hot Tags: automotive electrical fuses, China, manufacturers, suppliers, factory, High Voltage Fuse Types, High Voltage Fuse Types 1000VDC 5A-800A, UL Class CC Fuse Is 600 Volt AC Current Limiting, ANL FUSE, ANL Fuse and Holder, Fast Blow Ceramic Fuse Link
