58VDC HIGH VOLTAGE CURRENT LIMITING FUSE DNQ SERIES CERAMIC NOUMENON
Low Voltage Fuse Low Breaking Capacity Fuse DNQ Series Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage
|
32VDC/58VDC/80VDC |
Type Protection
|
Time-lag |
| Rated Current | 5A-200A |
Breaking Capacity
|
DC1500A |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, Europe and RoHs Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Manufacturing material
Component name:
Contact the foot (Material:Kirsite/Copper alloy )
Noumenon (Material:Ceramics)
Product type
|
Model |
Rated current |
Rated voltage |
Rated voltage |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |

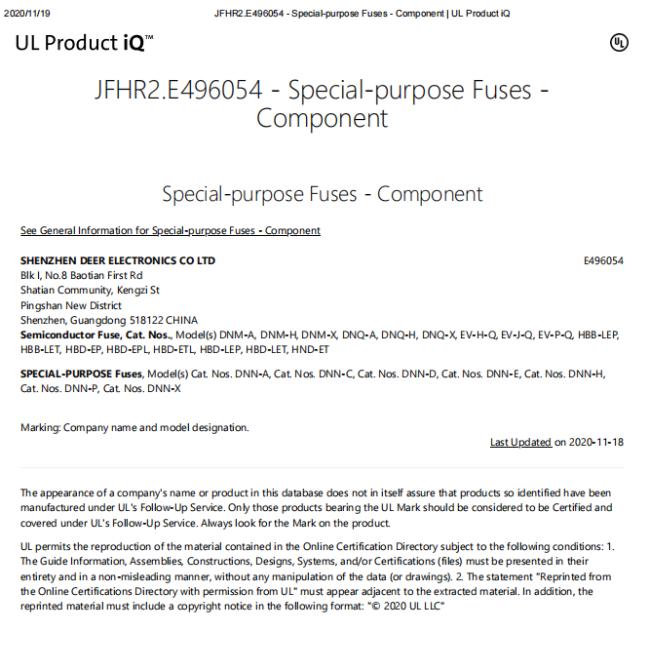

UL certificate:
