Blades Types Handheld Video Laryngoscope GlideScope 2 million Pixels
Video Laryngoscope GlideScope Video Laryngoscopy Reusable Blades Types & Uses
The video laryngoscope is shell is medical stainless steel made, the alloy swing frame of laryngoscope can be rotated at a large angle, front and rear, left and right, making blind insertion a thing of the past.
The 3.0-inch high-definition LCD display video laryngoscope can expose the patient's glottis position to the greatest extent and realize rapid assisted intubation. There are various sizes of laryngeal blades.
One main unit video laryngoscope can be adapted to 5 kinds of reusable laryngeal blades, and different sizes can meet the tracheal intubation of various body types, statures and facial and oral structures.
Each blade of Glidescope has a digital camera system with dual anti-fog for easier intubation. Laryngeal blades are also made of high-density medical grade stainless steel, which can be reused after disinfection, saving costs, reducing consumables and medical waste.
HYHJ-KC Video laryngoscope is USB input, can store video and images cyclically, no need to clean up the memory frequently.
The large-capacity rechargeable lithium battery can be recharged 800 times without frequent replacement.
Technical Index
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 3 Disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |

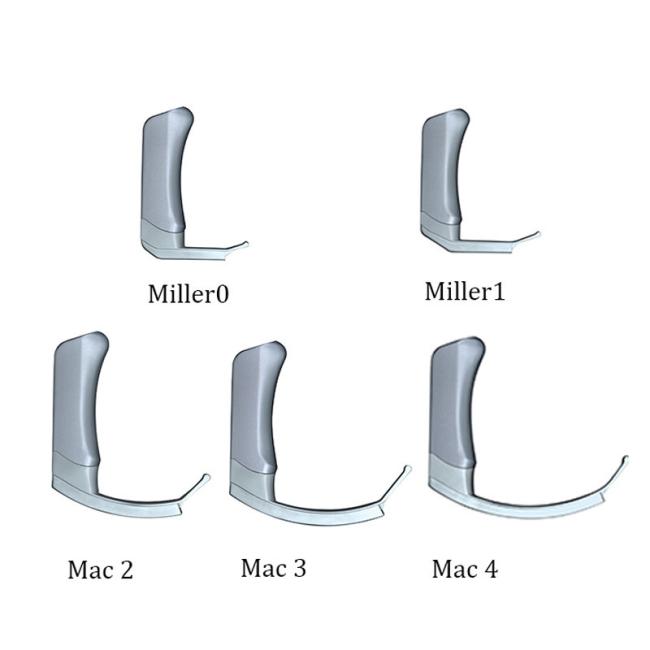

| Specification & Dimension (5 KC Resuable Blades) | ||||||
| Tip Size(mm) | L | H | W | Max W | Min W | |
| 1 | Mac4:Large Adult | 153 | 54.5 | 29.23 | 22.41 | 14.37 |
| 2 | Mac3:Medium Adult | 140 | 49 | 29.23 | 21.37 | 14.46 |
| 3 | Mac2:Small Adult & Large Child | 122 | 34 | 29.23 | 21.4 | 13.56 |
| 4 | Miller1:Medium Child | 77.4 | 22.74 | 18.55 | 14.5 | 10.34 |
| 5 | Miller0:Small Child & Infant | 59.9 | 17.46 | 18.55 | 14.7 | 10.6 |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
